Lippert Components Sway Command Install Manual

Rev: 09.17.2015
Page 3
Sway Command™ OEM Install Manual
Preparation
Tools and Hardware Required
Cordless/power drill
⁄" drill bit
Driver bits
#12 x ¾" hex head screws (corrosion resistant)
with lock washers (4)
#8 x 1" square head wood screws (2)
Paint marker/grease pencil
Torpedo level
Installation
Sway Command™ Controller Mounting
NOTE: Never drill into the The Sway Command™ controller or compromise the pressure equalizer plug hole
on the back of the controller. Doing so voids the warranty and could damage the controller.
NOTE: The Sway Command™ controller is water-resistant, but not waterproof. Do not spray high pressure
water directly at the controller.
NOTE: The controller MUST be mounted to a frame crossmember between 4 feet and 10 feet behind the
hitch point.
NOTE: The controller MUST be mounted in a level condition, centered on the crossmember, and according
to the orientation arrow on the label (Fig. 1A).
NOTE: The controller will not operate correctly if mounted incorrectly.

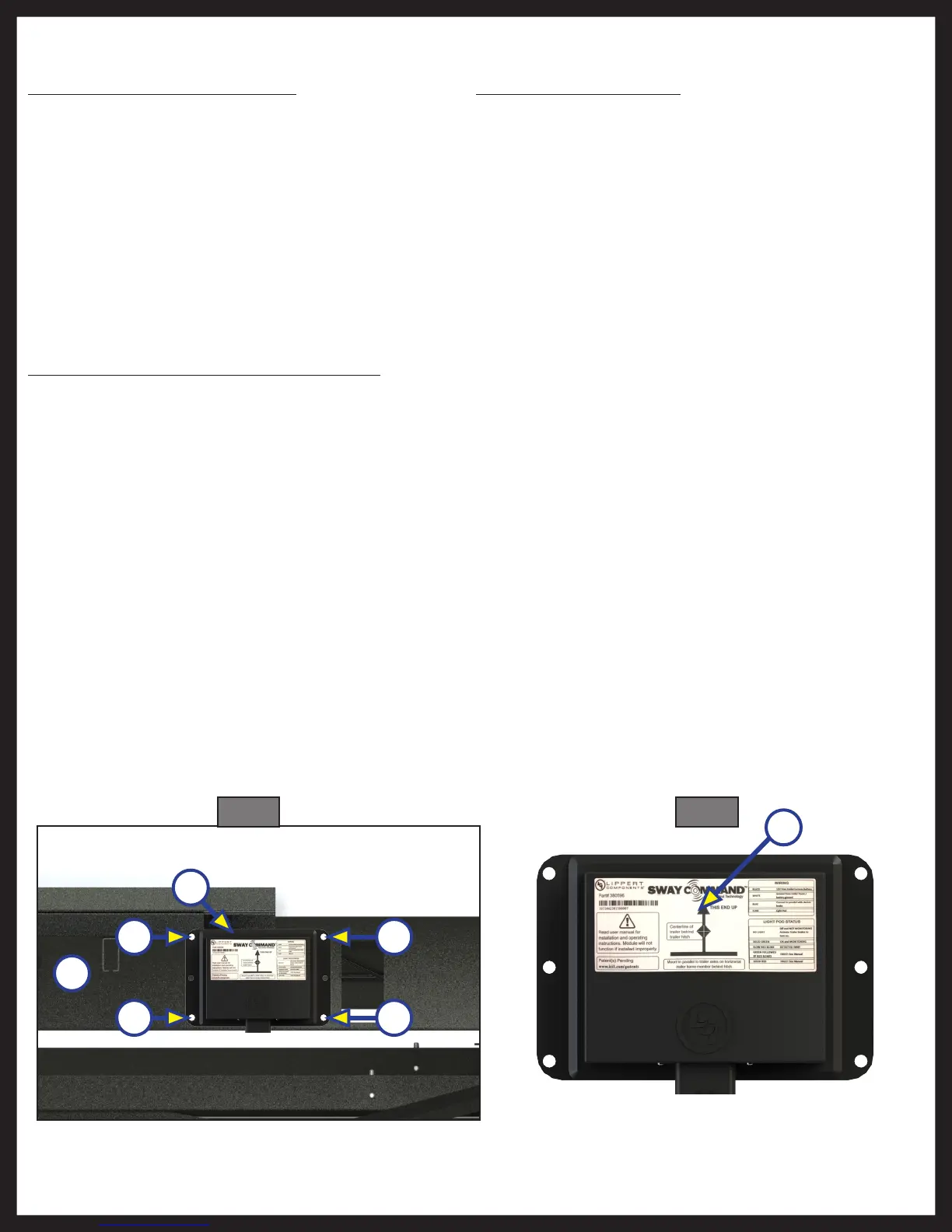

1. Place the controller (Fig. 1A) on the side face of the crossmember (Fig. 1B) where it will be mounted
with the orientation arrow pointing up towards the floor of the coach (Fig. 2A). The controller may be
mounted facing the front or the rear of the trailer.
2. Using a torpedo level, ensure the controller is level, and mark the screw hole locations on the
crossmember (Fig. 1C). Set the controller aside.
Components Required
Sway Command™ Controller
Sway Command™ Main Wire Harness
Sway Command™ Light Pod
Sway Command™ Light Pod Extension Harness
A
Fig. 1 Fig. 2
A
B
CC
CC
