Lippert 2022016064 - Parts List

3
lippert.com 432-LIPPERT (432-547-7378) Rev: 08.29.22
Quick Drop Stabilizer
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0004455
Parts List
B
C
I
E
F
G
A
D
H

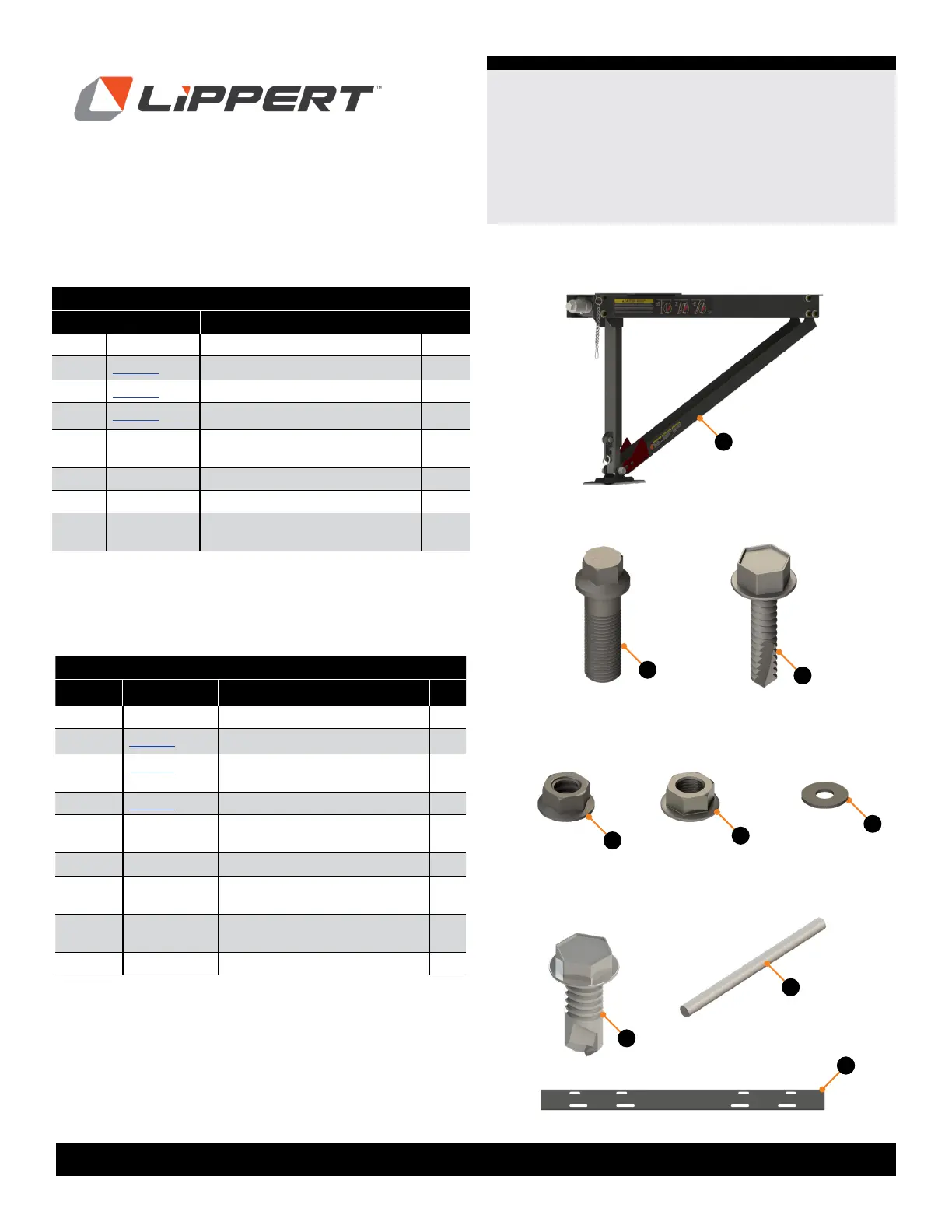

Single Leg Kit (2022016064)Single Leg Kit (2022016064)
LetterLetter PNPN DescriptionDescription QtyQty
A 2021102390 Quick Drop Stabilizer 1
B
117919 Flange Bolt, 3/8” - 16 x 1” 1
C
118102 Self-drilling Screw, 1/4” - 14 x 1” 1
D
119072 Flange Nut, 3/8” - 16 1
E 2021150685 Nylon Locking Flange Nut,
1/4” - 20 (spare)
3
F 180578 Washer, 1/4” (spare) 1
G 367009 Self-drilling Screw, 3/8” - 12 x 1” 3
H 2022013295 Temporary Alignment Rod
(T.A.R.) (spare)
3
Double Leg Kit (2022016065)Double Leg Kit (2022016065)
LetterLetter PNPN DescriptionDescription QtyQty
A 2021102390 Quick Drop Stabilizer 2
B
117919 Flange Bolt, 3/8” - 16 x 1” 2
C
118102 Self-drilling Screw,
1/4” - 14 x 1”
2
D
119072 Flange Nut, 3/8” - 16 2
E 2021150685 Nylon Locking Flange Nut,
1/4” - 20
6
F 180578 Washer, 1/4” 2
G 367009 Self-drilling Screw,
3/8” - 12 x 1”
6
H 2022013295 Temporary Alignment Rod
(T.A.R.)
3
I 2021104869 Center Piece 1
NOTE: Part C is not used for double leg installation but is
included in the kit.
NOTE: Kit received may include additional hardware
as a courtesy.
NOTE: Parts E, F, and H are not used for single leg
installations. They are provided as spares and will be
necessary if single leg kit is purchased to replace a
stabilizer on a double leg installation.
