Measuring Frame and Adjusting Assembly Width

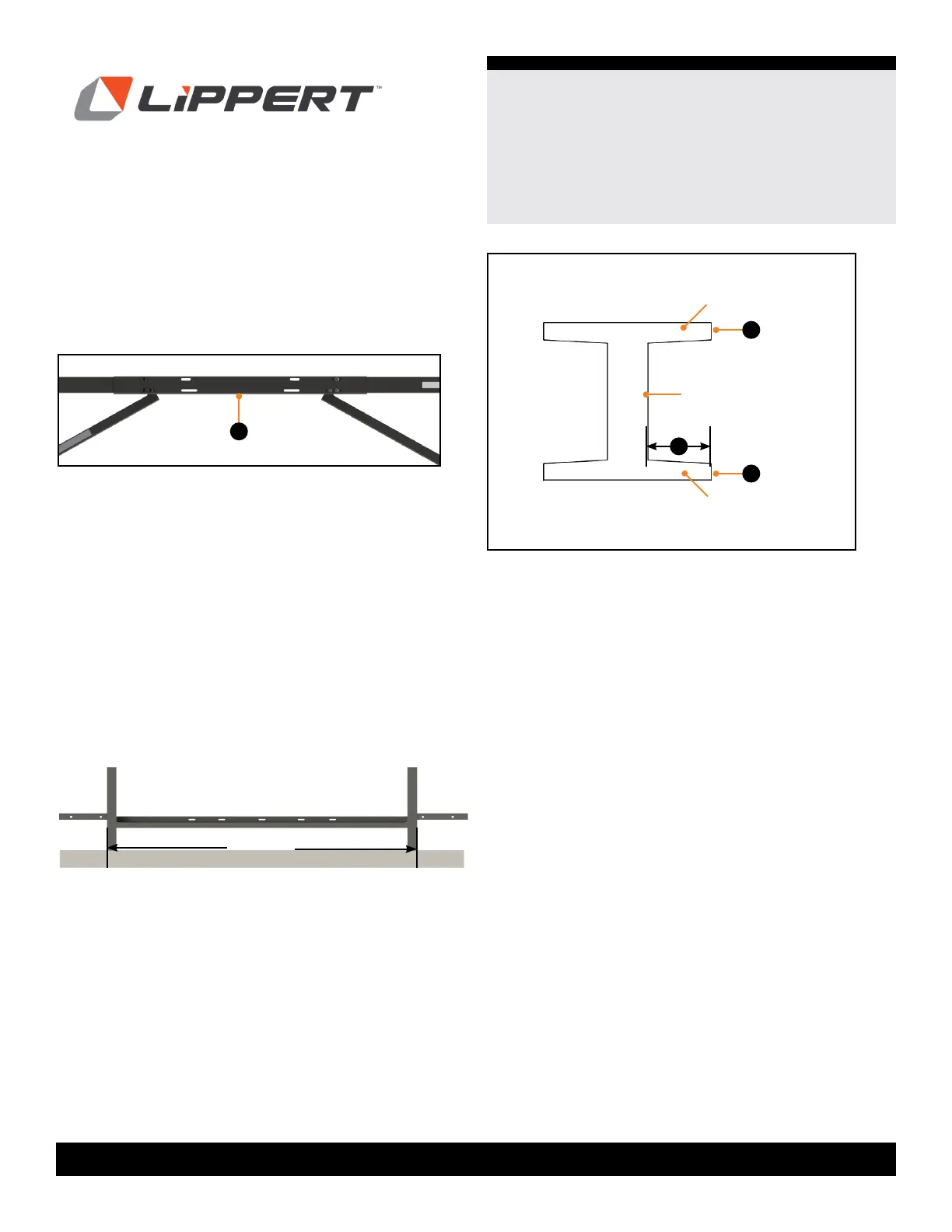

The Quick Drop Stabilizer system Double Leg Kit will come
in three (3) main parts: the two legs and the center piece.
The Quick Drop Stabilizer system can be adjusted to
accommodate the frame rails/overall width of the trailer.
The width of the entire assembly can be adjusted by
moving the stabilizers in-and-out of the center
piece (Fig. 2A).
1. Measure frame to determine the width of the trailer
(Fig. 3). Specically, measure from the outside of the frame
ange to the outside of the frame ange on the other side
(Fig. 4A).
Fig.2
A
(width)”
Web
NOTE: Most trailers will have J Wrap/trim preventing the
frame from being completely visible. The Quick Drop
Stabilizer MUST be attached to the frame.
B
Flange
Flange
2. Measure the ange on the frame (Fig. 4B) to determine
the center of the outside ange. Then take the
measurement and divide by 2. This is where the stabilizer
will be attached to the frame.
3. Use the overall width (outside ange to outside ange)
minus
½ the ange width of the right and left side to
determine the necessary length of the Quick Drop
Stabilizer system. Use this measurement when assembling
the stabilizers into the center piece. The Quick Drop
assembly needs to extend beyond the frame, but not past
the wheels.
Ground
Trailer
A
A
Inside of
the Trailer
Outside of
the Trailer
Fig.3
Fig.4
