3.4 Preparations for starting
Move the floor cutter into position
Steering rod (Pos. 4) and saw blade (or rear steering rod)
are above the cut line
Note
The feed lever (Pos. 20) must be in the middle position when
starting the motor.
Start the diesel motor (Pos. 21)
Attention!
Follow the Kubota operating manual!
Release the brakes (Pos. 22) and connect the feed
(Pos. 23)
Open water tap (Pos. 9)
Note
Take the rotation speed from the table (see 2.6) and follow the
rev counter (Pos. 24)!
Set the rotation speed above the gas lever (Pos. 17)
Reduce the controller (Pos. 18) (clockwise)
Slowly lower the saw blade using the toggle lever (Pos.
19) and controller (Pos. 18) - until it cuts slightly.
Attention!
Is the saw blade getting enough cooling water?
Set the depth display (Pos. 30) to "zero".
Immerse the saw blade to the desired cut depth
* Toggle lever (Pos. 19) and controller (Pos. 18)
* Observe the depth display (Pos. 30)
Feed movement is controlled with the lever (Pos. 20).
Max. forward movement speed = max. lever travel
3.5 Feed lever stopper

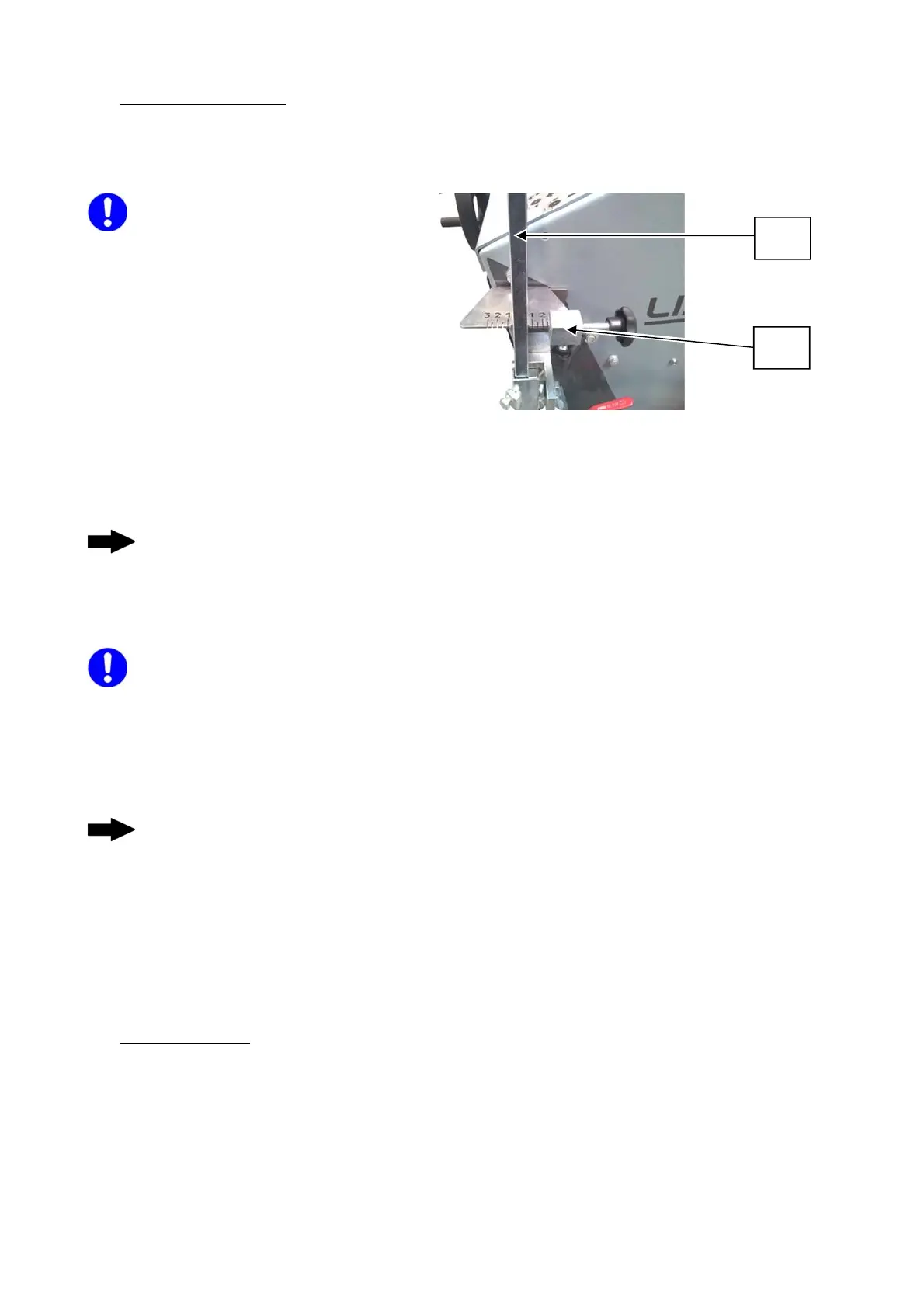

The adjustable feed lever stopper (Pos. 20.1) enables a
consistent feed.
