5. Operation
5.1 Normal cutting operation
Preparations for starting (see 3.4)
The feed speed is controlled using the feed lever (Pos.
20)
5.2 Cooling water
Make sure that the saw blade is supplied with sufficient
cooling water. The lifetime and the cutting performance are
influenced by this.
Use only clean water
Do not kink water hose
5.3 Saw blade selection
Danger!
No mesh discs may be used.
Refer to the prospect “Lissmac Diamond Tools”.
Install only saw blades recommended by the manufacturer.
5.4 Cutting depth limits
This setting is recommended for several cuts of the same
depth
Immerse to the desired cut depth
Toggle lever (Pos. 19)
Controller (Pos. 18)
Screw in the stop screw (Pos. 38) to the stopper
(clockwise) and lock with a nut.
5.5 Switching from counter rotation to parallel feed cutting
Attention!
Switching can only be done when at standstill
If there is danger of frost, the gears under the water tap (Pos.
41) must have water removed.
Switch off the motor at the ignition switch (Pos. 21)

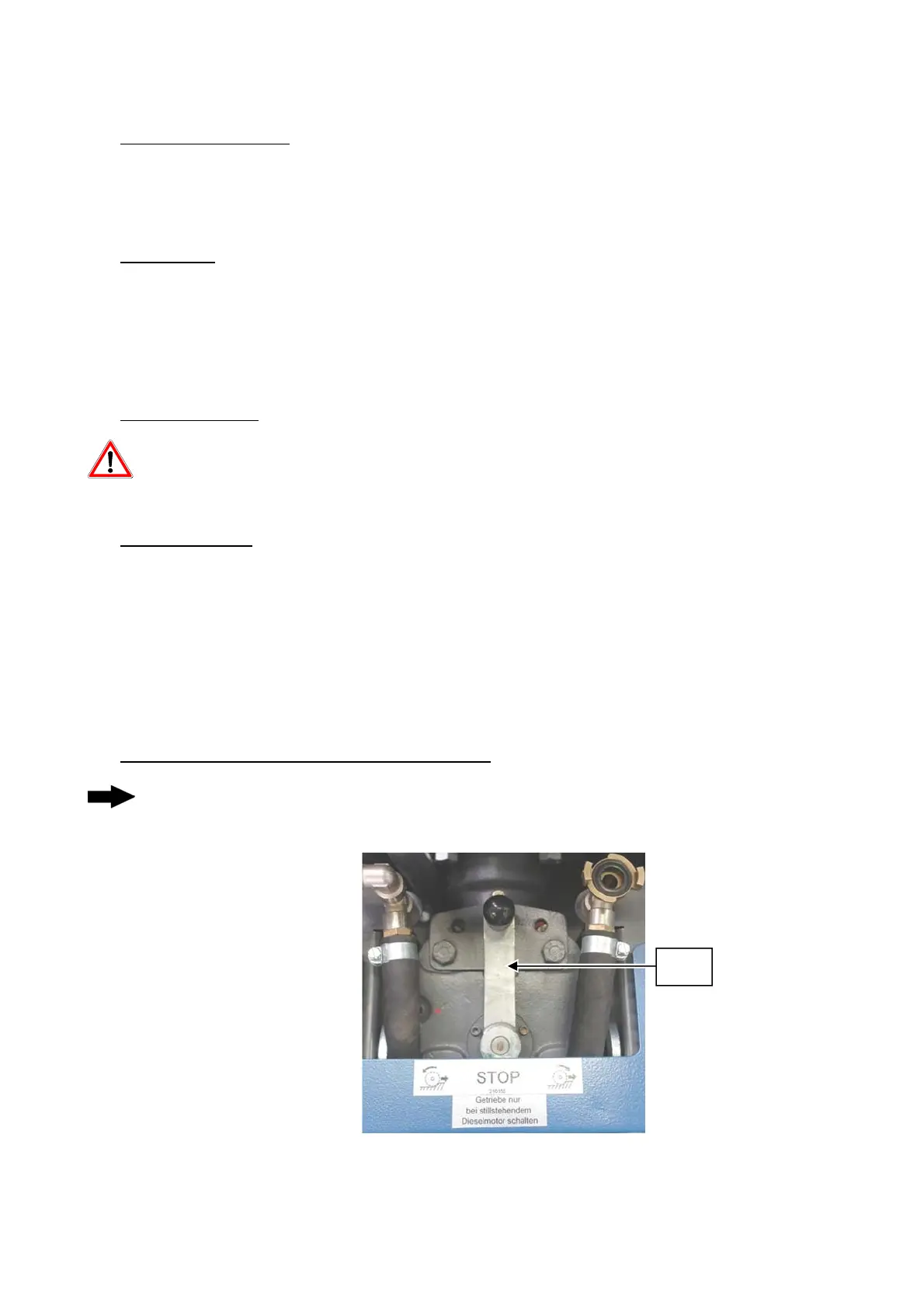

Place the lever (Pos. 40) into position
40
Left position = counter clockwise
Middle position = STOP
Right position = clockwise
