LA-140 – Mounting your Radiator
Corner Mounting
The radiator is mounted in the corner of a room with or without a wall box available for this use. A wall box
must be at least four inches from the corner if using for this install.

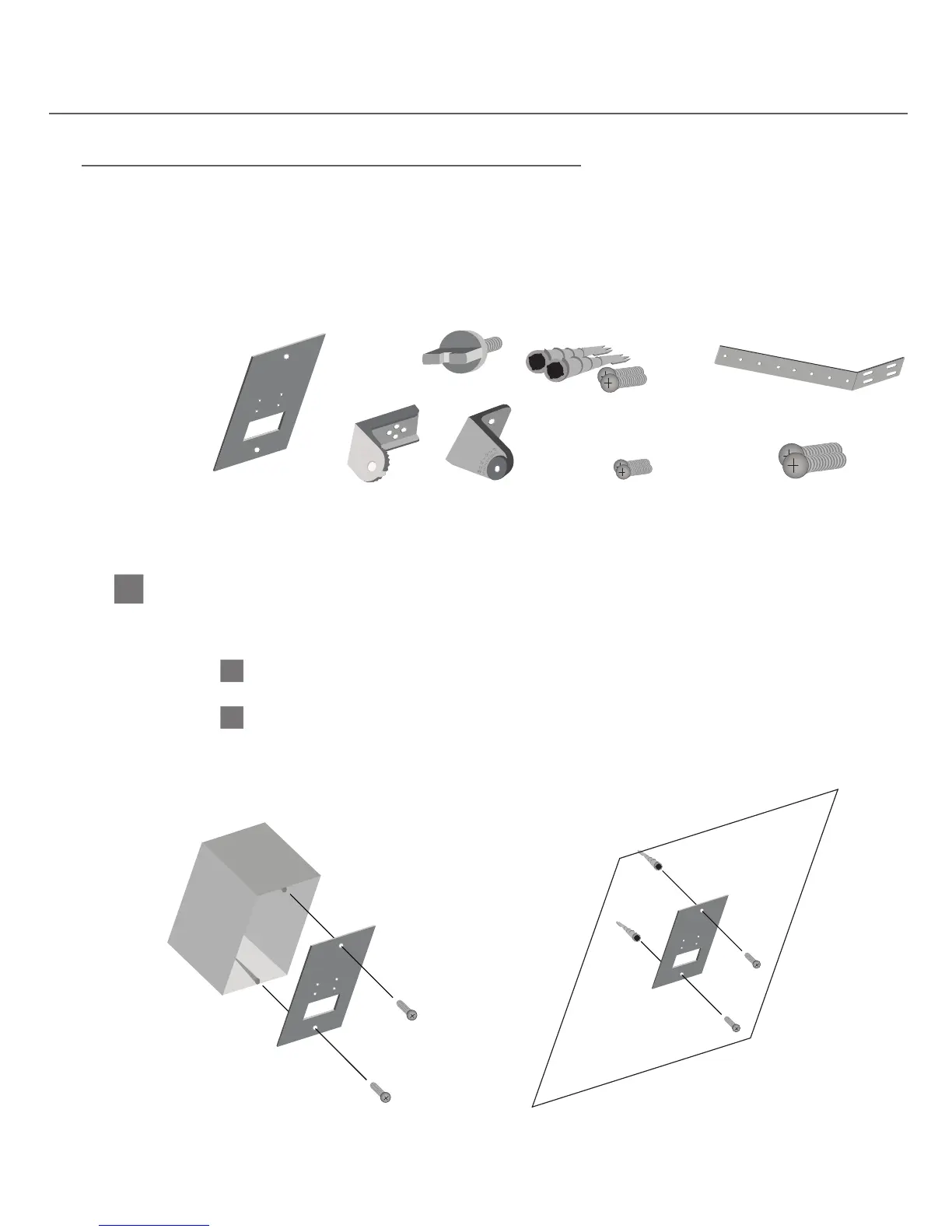

Pieces Used:
• Wall Box Plate
• Mounting Hardware Screws (if attaching to wall box)
• Hollow Wall Anchors with Screws (if attaching to hollow wall)
• Corner Mount Bracket
• Mounting Hardware Screws
• Tilt Arm “A”
• Tilt Arm “B”
• Tilt Bolt
Installation Steps
1
Attach Wall Box Plate securely to wall.
IMPORTANT: Wall Box Plate must be at least four inches from corner to ensure corner bracket will t in corner.
Fasten Wall Box Plate to wall
1A
If using a wall box (wall box must be four inches from corner),
attach Wall Box Plate to wall box using included Mounting Hardware Screws.
1B
If attaching directly to a hollow wall (Wall Box Plate must be installed four inches from corner),
attach Wall Box Plate securely to wall using included Hollow Wall Mounting Screws.
ATTENTION: The Wall Box Plate must be used in this installation to provide a secure
base for the radiator to be mounted on.
Wall Box Plate
Tilt Bolt
Tilt Arm “A”
Tilt Arm “B”
Mounting Hardware Screws
Hollow Wall Anchors with Screws
Wall Box Plate Mounting Screws
Corner Mount Bracket
