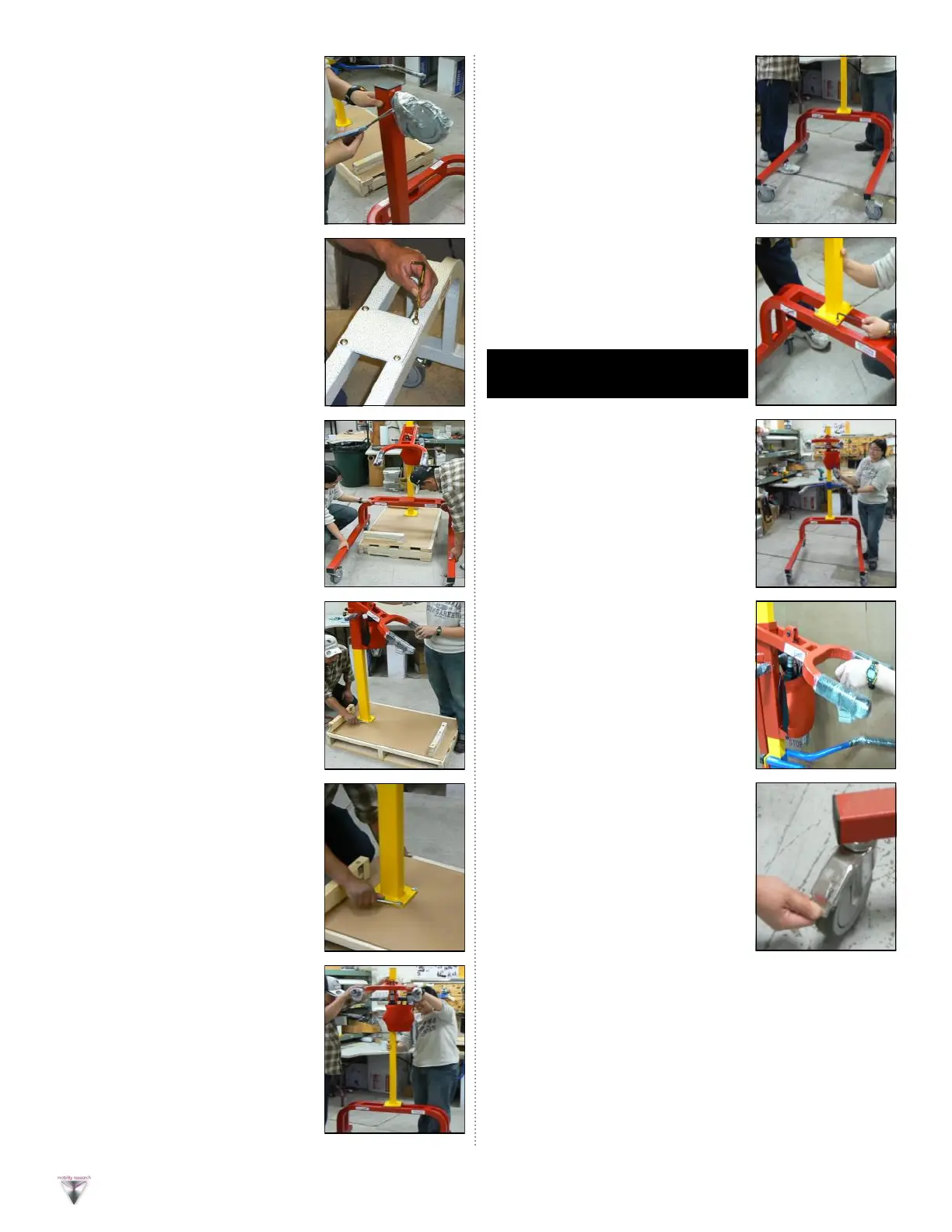

14.) To remove post from pallet use one
person to hold the post and yoke.
13.) Set base over pallet as pictured
with actuator near base.
12.) Prepare base for installation of
actuator. Remove four black steel bolts
from base using allen wrench in small
box.
15.) Locate bolts holding actuator to
pallet. Undo bolts with ½ inch socket or
wrench, loosen actuator from pallet
with one person holding the actuator
steady while loose.
11.) Position base over pallet with
actuator near base as pictured.
16.) Using two people lift the post onto
base.
18.) Insert bolts, hand tighten bolts
(ensure one person holds actuator
steady until secure). Tighten bolts using
5/16 inch Allen wrench until snug (do
not to over tighten).
19.) Verify operation by moving
actuator up/down by pressing the
arrows on the hand switch. If hand
switch fails to operate the actuator,
check connections at top of the
actuator.
20.) Carefully remove all shrink-wrap
from handle bars yoke and base
21.) Verify performance of each locking
and directional casters.
17.) Orient the actuator on the base
(the yoke arms and handlebars point in
the same direction as the base legs).
Line up the holes for bolts to be
inserted.
Feel free to call 1-800-332-9255 Extension 7104 for Mobility
Research Service & Parts during assembly.
CAUTION: DO NOT over tighten the
bolts.
NOTE: Your LiteGait® may look different than images above
