LiteOn EVO600043S2D2E20F Quick Start Guide

34

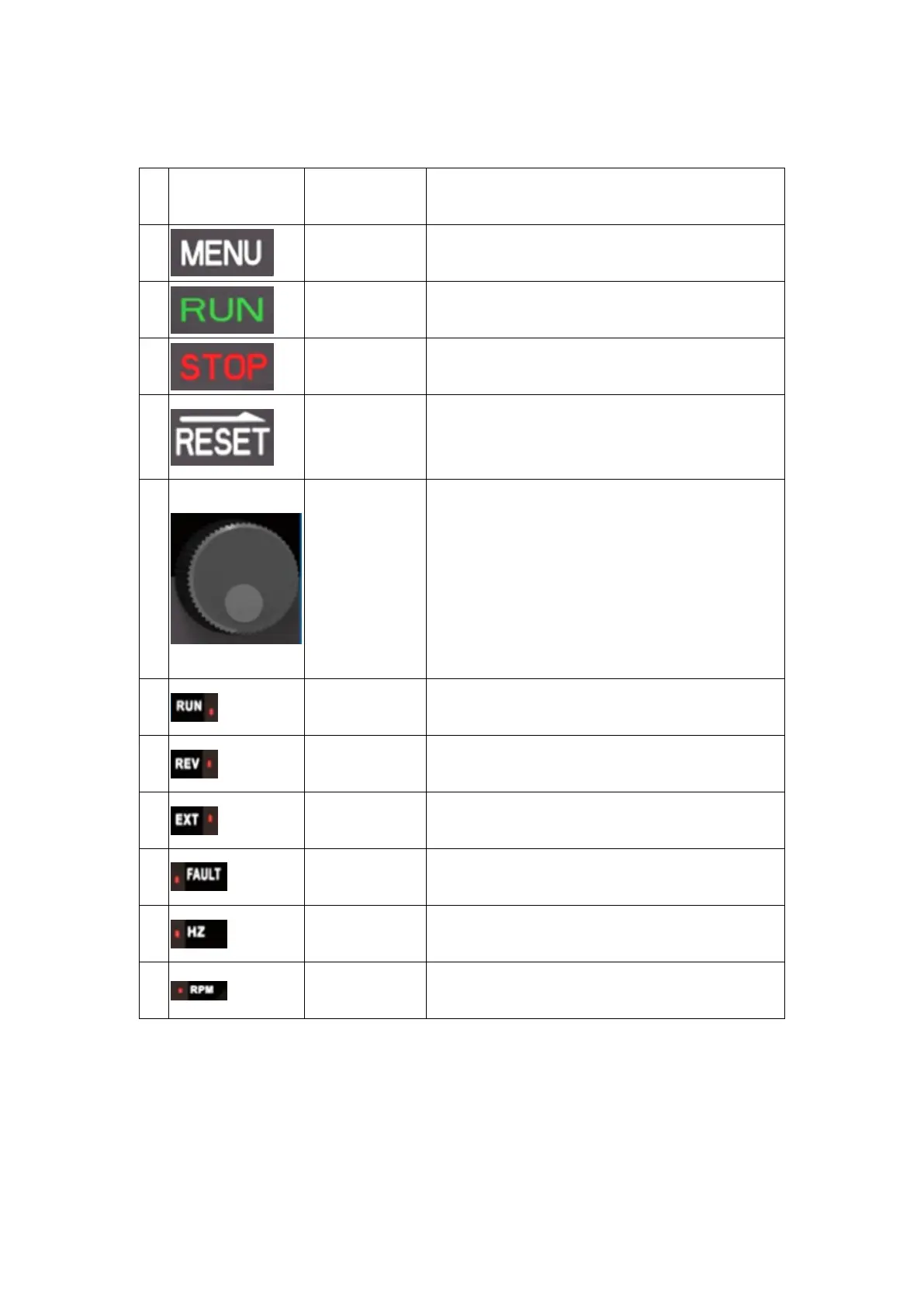

Table 5.1.1 Keypad Keys and Displays
No
Display
Name
Function
1
MENU Key
 Enters or exits the parameter group
 Switches the displayed menu
2
RUN Key
Forward/reverse selection
3
STOP Key
Stops the drive. Refer to Table 5.1.2.2
4
RESET Key
 Moves the cursor to the right
Resets the drive to clear a fault situation
5
Non-Slip
Setting Dial
Press it as “ENTER” key:
 Enters parameter value, parameter and
setting
 Enters parameter setting menu.
 Confirms the frequency set by the dial
Press it as “Dial”key:
Increases or decreases parameter numbers,
setting value and frequency
6
RUN Light
Refer to Table 5.1.2.2
7
REV Light
Refer to Table 5.1.2.2
8
EXT Light
Refer to Table 5.1.2.2
9
Fault Light
Refer to Table 5.1.2.2
10
Hz Light
Refer to Table 5.1.2.2
11
RPM Light
Refer to Table 5.1.2.2

LiteOn EVO600043S2D2E20F Specifications

General

Brand	LiteOn
Model	EVO600043S2D2E20F
Category	Controller
Language	English
