page 4
hanging
bracket
hanging
bracket slot

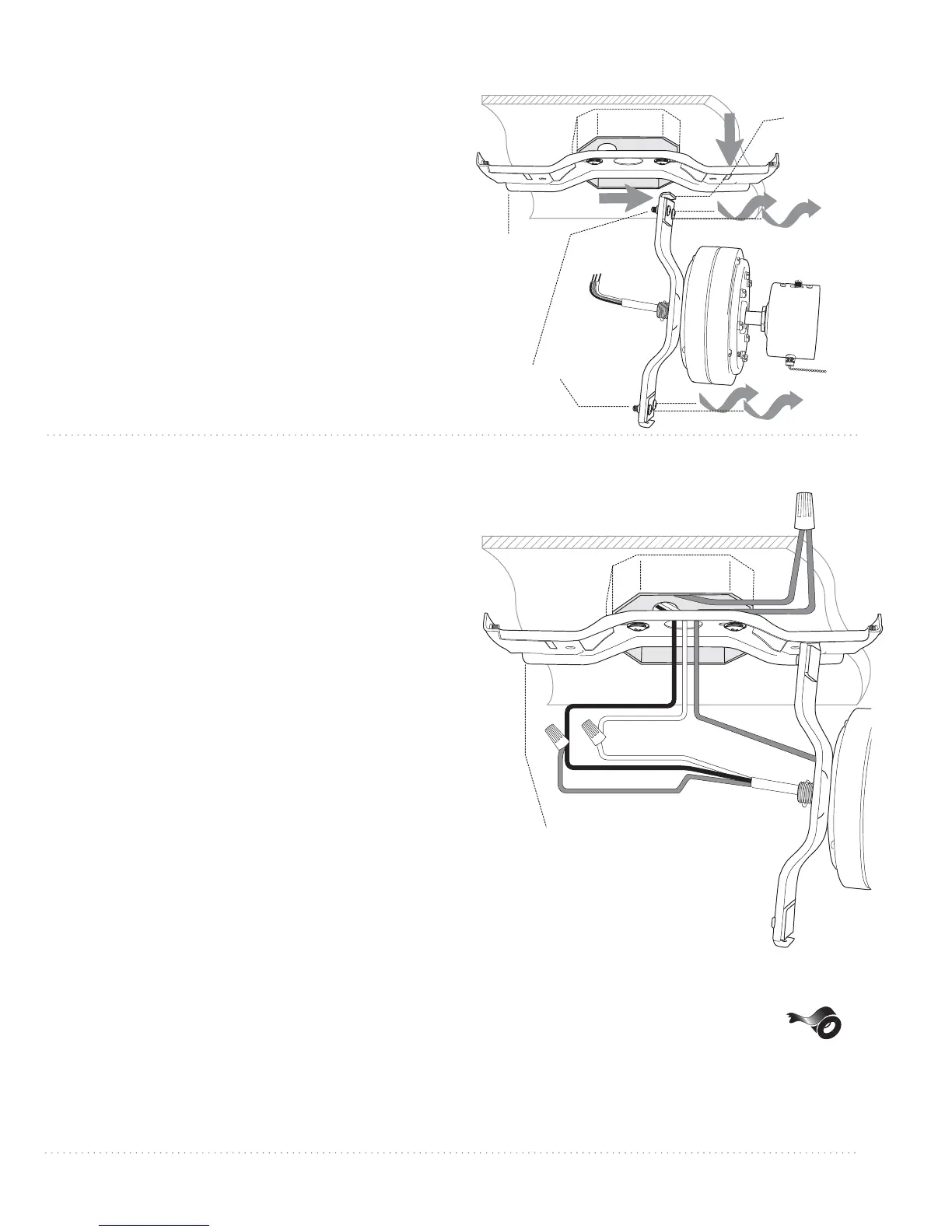

Remove 4 motor mounting screws and washers
from underside of motor assembly. Leave rubber
cushions in place. Lift motor assembly to
hanging bracket and place one end of motor
assembly in hanging bracket slot. This will allow
motor assembly to hang out of the way while
wiring.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
Continue to "Wiring" section for wiring diagram.
NOTE: See instructions above (Section 5) in order to
temporarily hang fan on hanging bracket during
wiring.
Important: Be sure outlet box is properly grounded or
that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with Local
Codes or Ordinances and the National Electrical Code.
If you are unfamiliar with electrical wiring or if the
house/building wires are different colors than those
referred to in the instructions below, please use a
qualified electrician.
When fan is secured in place on the hanging
bracket, electrical wiring can be made as follows:
Connect BLACK and BLUE wire from fan to BLACK
wire from ceiling with wire connector provided.
Connect WHITE wire from fan to WHITE wire from
ceiling with wire connector provided.
Connect all GROUND (GREEN) wires from fan
together to BARE/GREEN wire from ceiling with
wire connector provided.
If you intend to control the fan light with a separate
light switch, connect BLUE wire from fan to the
BLACK supply from the independent switch.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
motor assembly
motor
mounting
screws
5. Preparation for Wiring.
6. Wiring.
hanging
bracket
motor assembly
*
WHITE
WHITE
BLACK
BLACK
BLUE
GROUND (GREEN OR BARE) GREEN
GREEN
To Next Page
