10. Light Kit Assembly (Optional). (cont.)
Remove 3 screws from light kit fitter. Locate BLUE and
WHITE wires in the switch housing labeled FOR LIGHT.
Remove and discard cardboard label and plastic that
hold these 2 wires together.
Connect WHITE wire from switch housing to WHITE
wire from light kit fitter. Connect BLUE wire from
switch housing to BLACK wire from light kit fitter. Be
sure that molex connections snap together securely.
Align holes in light kit fitter with holes in switch
housing. Attach light kit fitter with 3 screws that were
previously removed. Securely tighten all screws.
Attach glass shades to light kit fitter with thumb
screws provided in one of the hardware packs. Do not
overtighten thumb screw as glass may crack or break.
Install 4 candelabra base 60 watt max. bulbs (sold
separately).
Important: When replacing bulbs, please allow bulb(s)
and glass shade(s) to cool down before touching.
11. Testing Your Fan.
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and wall
switch (if applicable). Test fan speeds with the pull
chain directly opposite the reverse switch. Start at the
OFF position (no blade movement). First pull will set
the fan to HI. Second pull will set the fan to MEDIUM.
Third pull will set the fan to LOW. Fourth pull will
re-set the fan to OFF setting. Test light kit with the
pull chain in the middle. (Refer to diagram 1.) If fan
and/or light do (does) not function, please refer to
"Troubleshooting" section to solve any issues before
contacting Customer Service.
Turn fan completely off before moving the reverse
switch. Set reverse switch to recirculate air depending
on the season:
- DOWN position in summer (diagram 2)
- UP position in winter (diagram 3)
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting
in winter without feeling a difference in your comfort.
Important: Reverse switch must be set either
completely UP or completely DOWN for fan to
function. If the reverse switch is set in the middle
position (diagram 4), fan will not operate.
Attach pull chains extensions provided or custom pull
chain extensions (sold separately) to light and fan pull
chains.

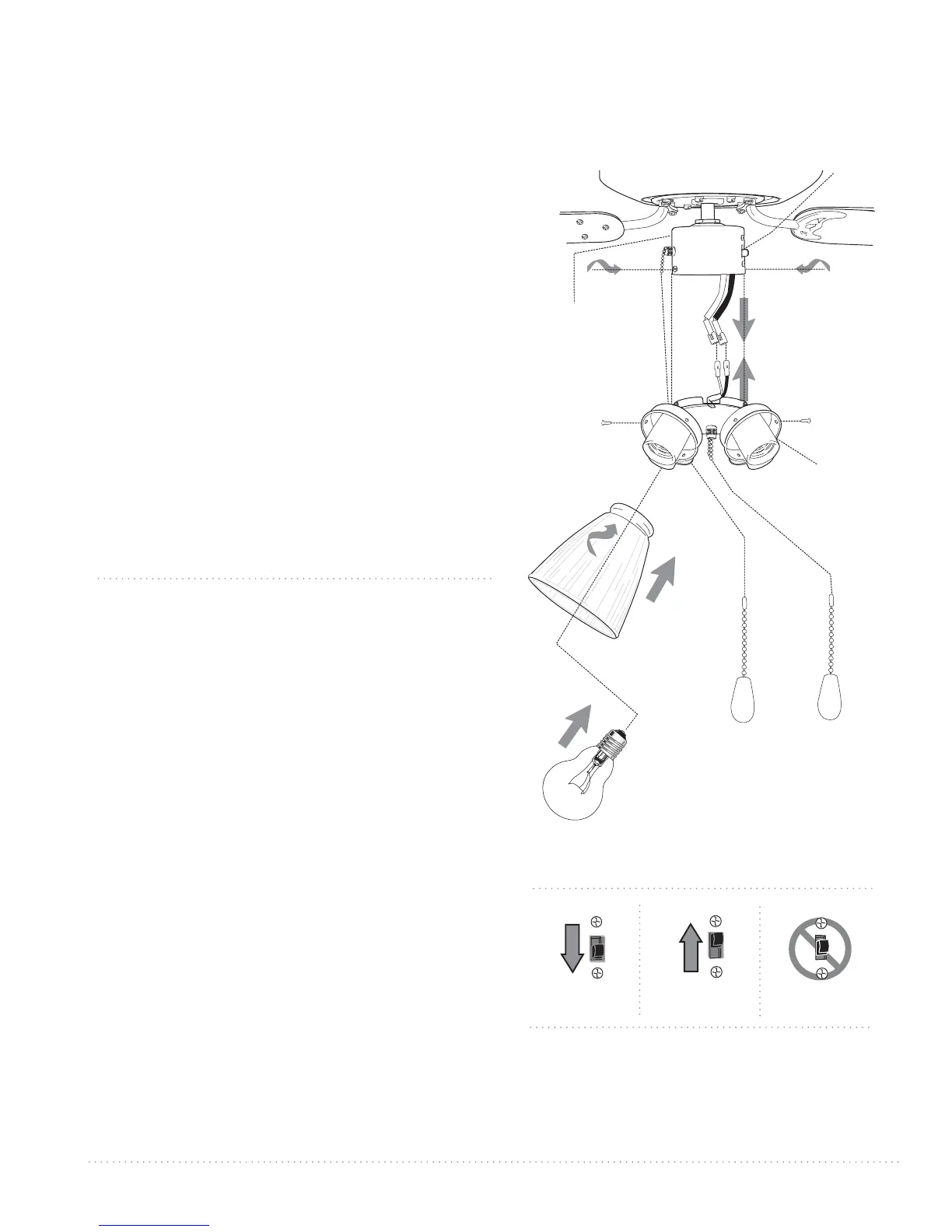

motor housing
switch
housing
glass
shade
bulb
thumb
screw
light kit fitter
pull chain
extensions
reverse
switch
thumb screw
molex
connections
diagram 2 diagram 3 diagram 4
diagram 1
