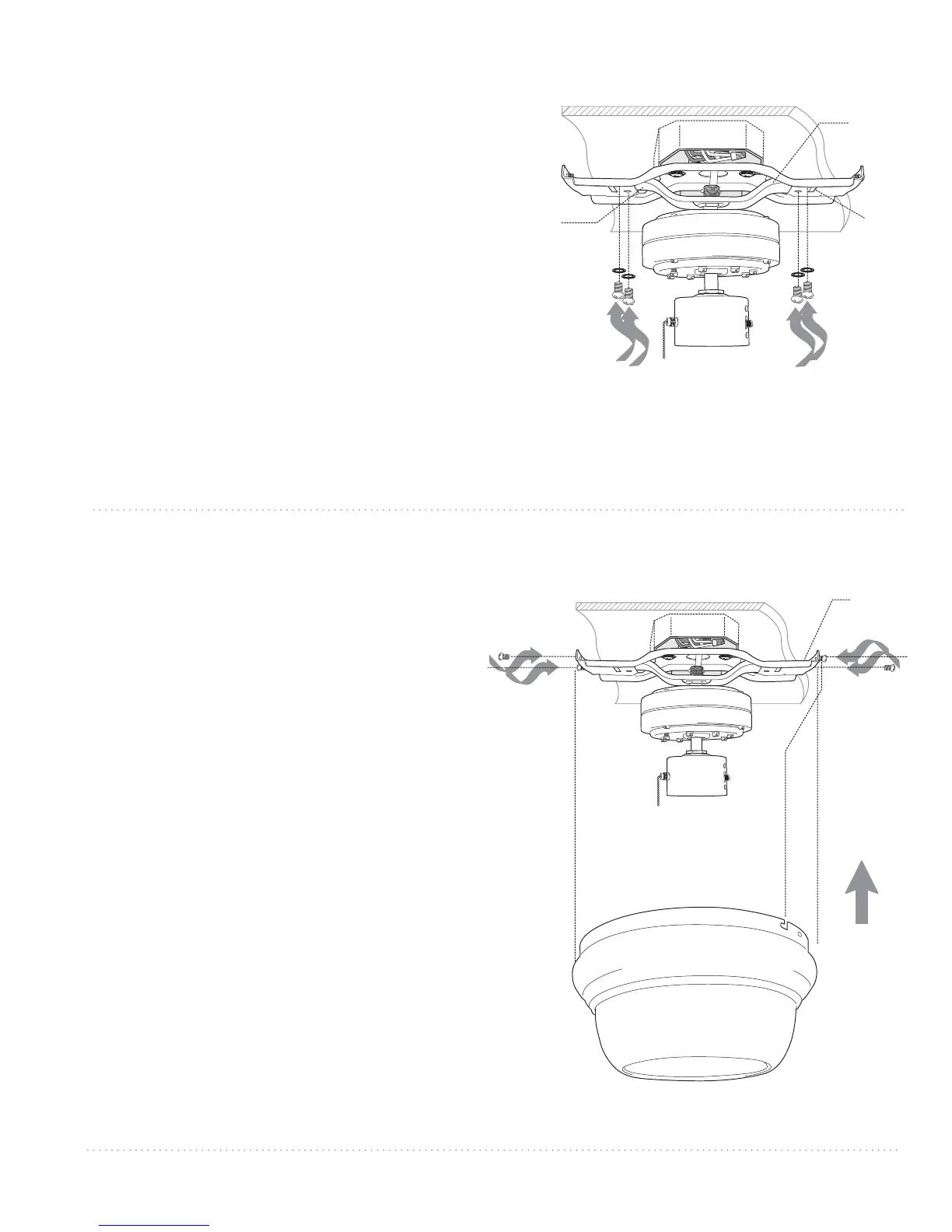

7. Fan Assembly.
Remove motor assembly from temporary
hanging slot in hanging bracket. Carefully push
wiring and wire connector into outlet box. Slide
one end of motor assembly through one of the
openings in the hanging bracket. Lift the other
end and slide through opposite opening. Align
holes on motor assembly with holes on
underside of hanging bracket. Secure motor
assembly to hanging bracket with washers and
motor mounting screws that were previously
removed (Section 5, page 4).
8. Motor Housing Assembly.
Temporarily hold motor housing up to hanging
bracket to determine which 2 screws align with
slotted holes on top rim of motor housing. Put
motor housing down and partially loosen the 2
screws in the hanging bracket that correspond
to slotted holes in motor housing. Remove the
other 2 screws from the hanging bracket.
Raise motor housing to hanging bracket,
allowing slotted holes in motor housing to align
with loosened screws in hanging bracket. Twist
motor housing to lock. Re-install the 2 screws
that were removed and then tighten all screws to
secure motor housing.
