blade arm
blade
page 6

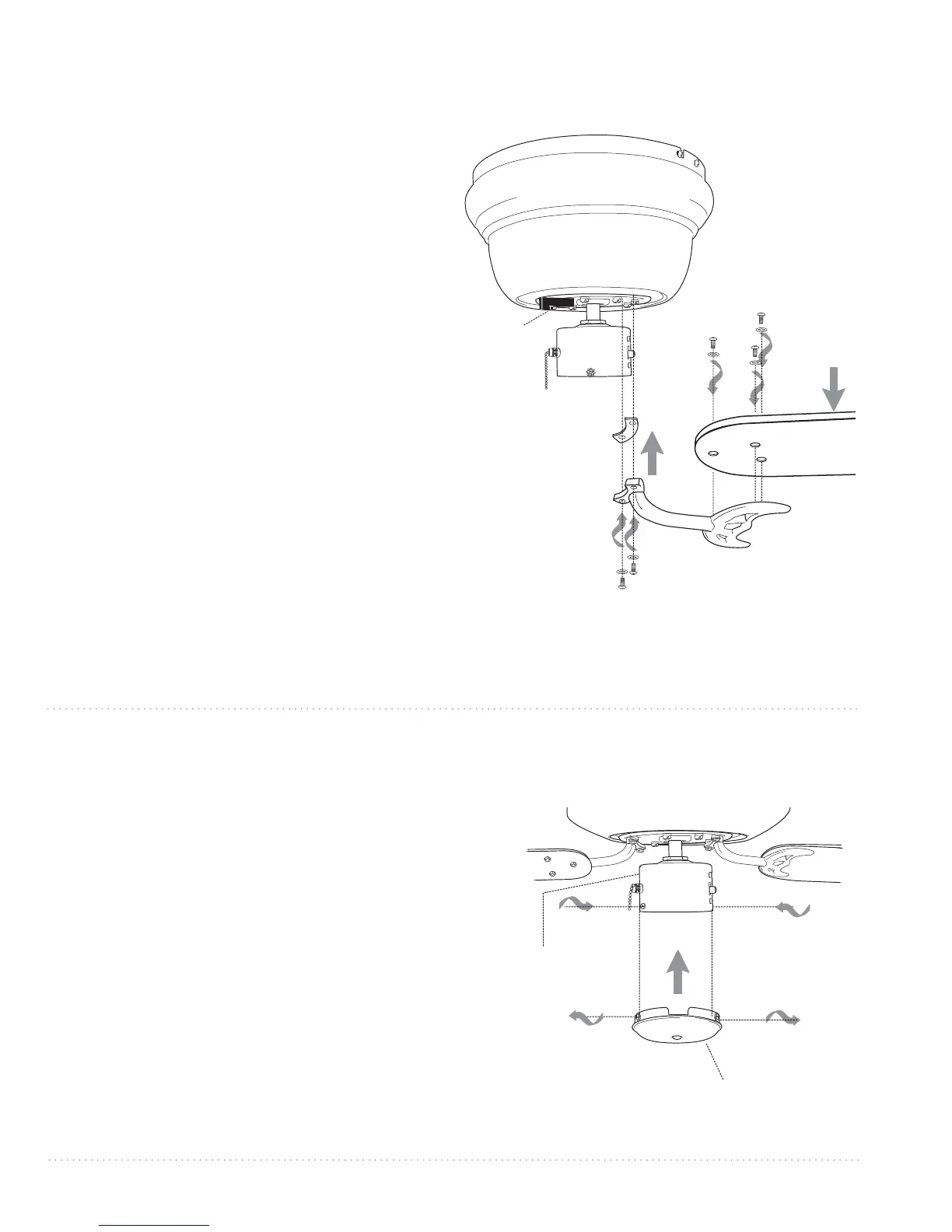

9. Blade Assembly.
10. Light Kit Assembly (Optional).
If you wish to use your fan WITH the light kit,
please follow instructions starting on the
following page.
If you wish to use your fan WITHOUT the light
kit, remove 3 screws from switch housing cap.
Align holes in switch housing cap with holes in
switch housing. Attach switch housing cap to
switch housing with screws that were just
removed. Securely tighten all screws. Please
proceed to Section 11 on the following page to
complete installation WITHOUT the light kit.
["Light Kit Assembly" continued on next
page.]
switch housing cap
motor housing
switch
housing
blade attachment
screws and washers
blade arm screws
lock washers
motor housing
plastic
motor
lock
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
provided in hardware pack. Hold one blade arm
up to blade and align holes. Insert 3 blade
attachment screws (along with washers) with
fingers first and then tighten screws securely
with a Phillips screwdriver. Repeat for the
remaining blades.
Remove blade arm screws and lock washers
from fan motor and set aside. Then, if applicable,
remove plastic motor locks and discard. Install
long fiber washers (provided in hardware pack)
between motor and blade arm to reduce
vibration of metal to metal surfaces. Align blade
arm holes with motor screw holes and attach
blade arm with blade arm screws and lock
washers. Before securing screws permanently,
repeat procedure with remaining blade arms.
Secure all screws completely after installing all
blade arms.
Note: Tighten blade arm screws twice a year.
fiber washer
