HOIST SPECIFICATIONS
Little Mule Lever Hoists are made of the best selected materials to provide long dependable
service for users. Little Mule Lever Hoists are manufactured and processed through up to
date streamlined production facilities by skilled engineers under strict quality control. All
lever hoists are tested per ASME B30.21 before leaving our factory. Refer to the back cover
for Certification Statement.
APPLICATION INFORMATION
1. Inspect carefully for any damage that may occur during shipping. Check for loose,
missing, or damaged parts.
2. Lubricate the load chain along the whole length with machine oil (See Figure 2).
3. Examine the load chain to ensure that there is no twist. When your lever hoist is a 6 ton
that lifts on 2 falls of load chains, twists can arise from the bottom hook being accidentally
turned over through the load chains (See Figure 3).
4. Confirm that the supporting structure is strong enough to support the full rated capacity
of the lever hoist with a generous factor of safety.
3
Guide
Handle
Selector
Lever
Operating Handle
Rated Std. Chain Minimum Pull on Length of Net Test
Capacity Lift dia. Distance lever to operating Weight Load
(tons) (ft) x falls Between lift full handle (lbs) (tons)
Hooks (in) load (lbs) (in)
.75 5 ø5.6mmx1 11
7
/
16
46 9
1
/
4
12 1.125
1.5 5 ø7.1mmx1 13 59 14
9
/
16
21 2.25
3 5 ø9mmx1 16
15
/
16
75 14
9
/
16
35 4.5
6 5 ø9mmx2 22
3
/
4
76 14
9
/
16
67 9.0
The design, materials and specifications are subject to change
for improvements without notice.
Table 1 - Hoist Specifications

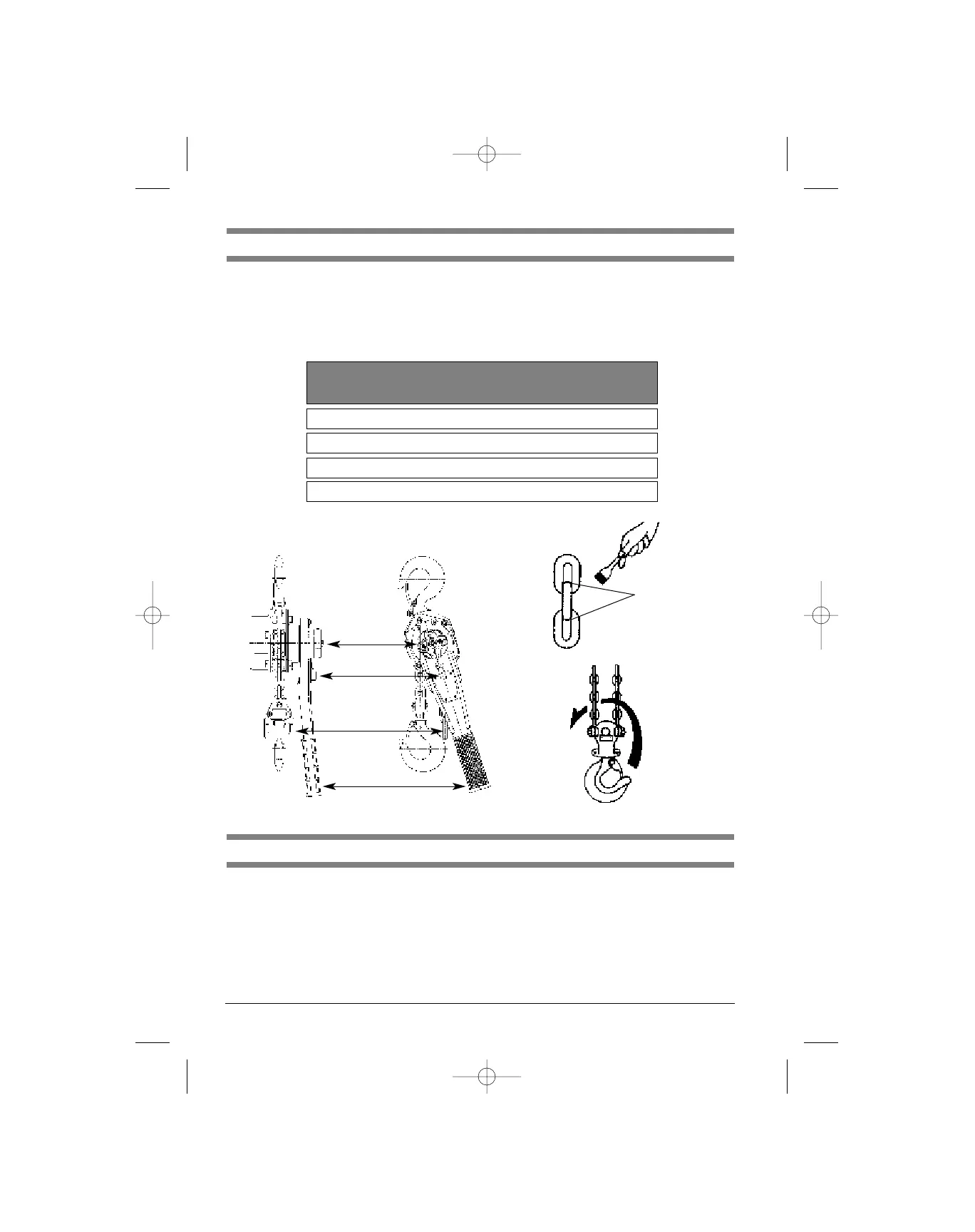

Figure 1 - Lever Hoist
Lubrication
Figure 2 - Chain Lubrication
Figure 3 - Correcting Chain Twist
Stop Grip
