Video: Connect it to video output of video device.
R/L in: Connect them to audio output of video device.
RF:
Connect antenna or cable 75 Ohm coaxial to receive TV signal.
YPbPr: Connect them to the video output terminal of DVD.
Connections
5
POWER:
USB:
Connect to the mains adaptor.
USB jack for update and Media.
HDMI: Connect to the HDMI socket of your DVD or Satellite Box.
VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
PC Audio in: Connect it to the audio output terminal of PC.
Headphone:
Connect it to your headphone or other audio equipments.

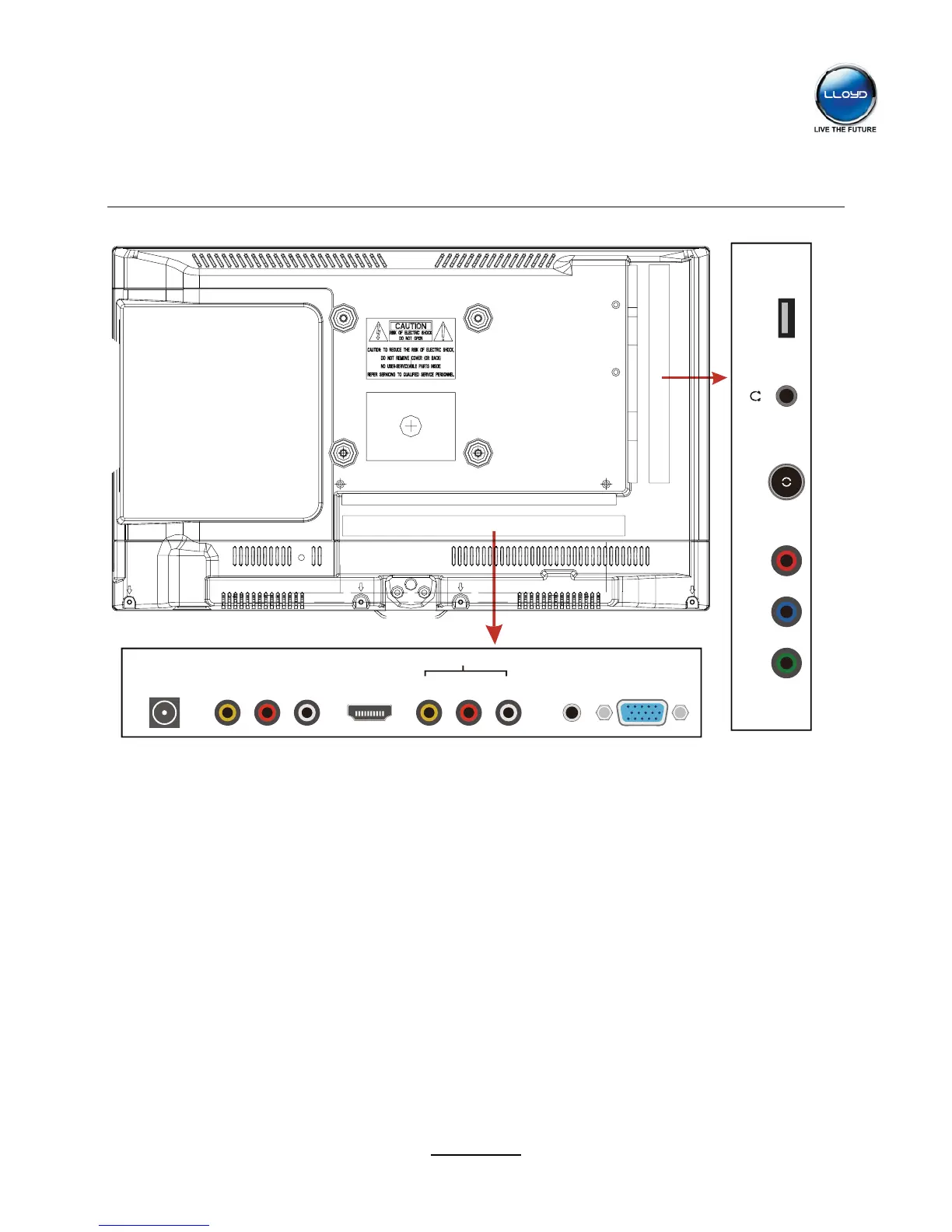

Rear View
YPbPr RF
USB
Video R in L in Video R L
POWER HDMI VGAPC Audio in
Audio out
Video out: Connect it to the video device.
