Selection of the installing position
Indoor Unit
Outdoor Unit
★
★
●
●
●
●
●
●
●
●
There is no heat or steam source near
the unit.
There is no blockage affecting air
circulation at the installation position.
Enable the air to circulate well.
Easy to drain.
Easy to take measures to
reduce noise.
Don’t near the doorway.
Enough distance between the unit and the
wall,the ceiling,decoration and other blockages.
Installation position is about 30cm from the ceiling.
●
●
●
●
If there is an awning protecting the outdoor
unit against sunshine or rainfall, be sure not
to block the condenser from dissipating heat.
Don’t keep animals or cultivate plants
on the site, because they would be
affected the cold or hot airflow coming
out of the air-conditioner.
Enough distance between the unit
and the wall, the ceiling,
decoration and other blockages.
Install at location being 100cm
above the blockages..
Installation the air-conditioner
●To make sure the installation place of the air conditioner .
●Installation behind panel before connect the pipeline and cable.
●Basis indoor outdoor units installation place, choose the suitable roof outlet bore (back right
left each one).
●Behind panel must installation, or plate parts maybe rip the wire result short, even make fire.
1.Tap the roof outlet bore.
2.Put behind panel on roof bore , revolve to the screw hole , loosen screw, then tap the middle
circle plastic panel.
NOTE:
★
Indoor unit behind panel installation

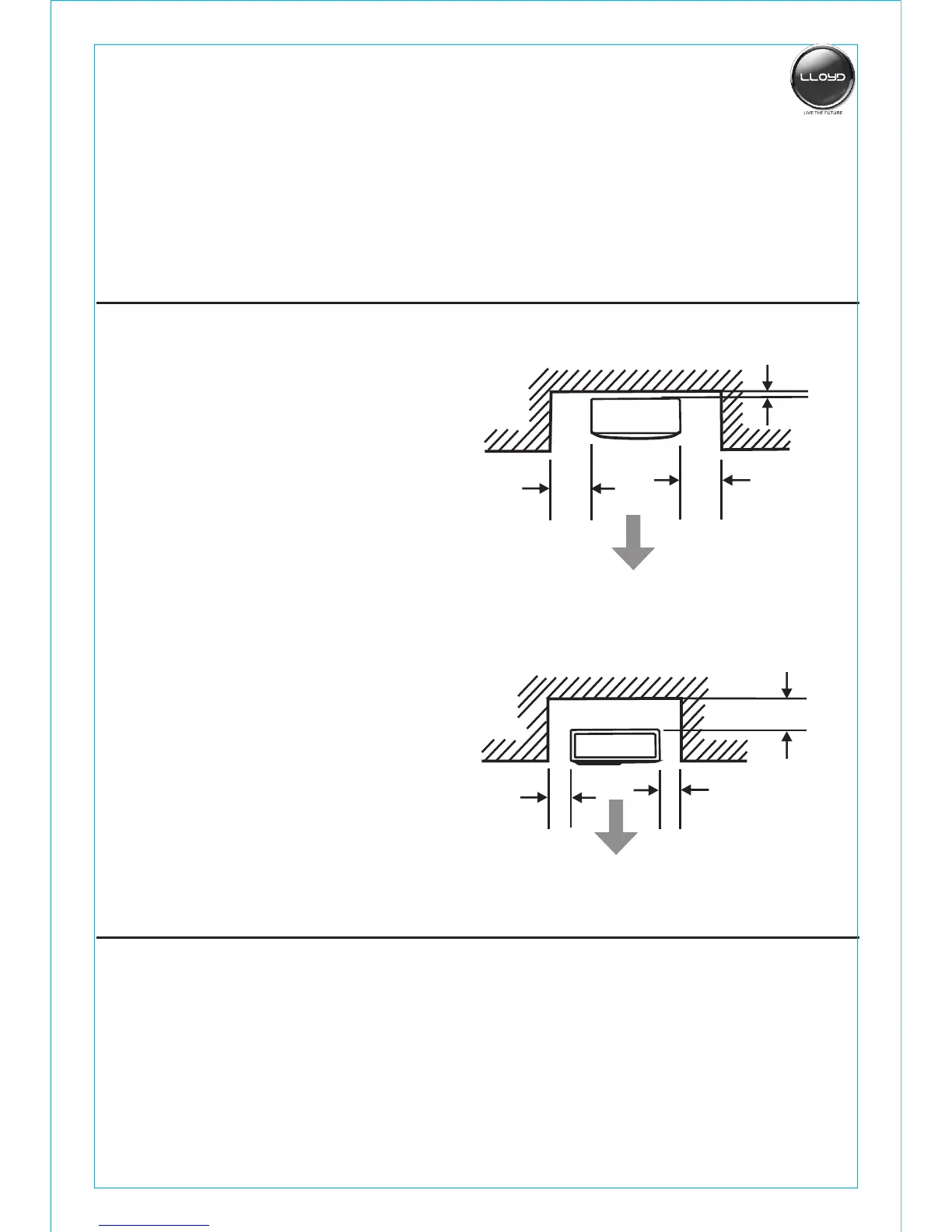

More than 100cm
More than 10cm
More than 0.5cm
More than 10cm
More than 20cm
More than 100cm
More than 10cm
More than 10cm
N 842/2006： If the air conditioner you bought used the refrigerant R410A, the amount
of refrigerant is in a closed cooling circuit. The coolant does have zero ozone depletion
potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus
contribute to global warming,if it is released to the atmosphere. Therefore only trained
technicians with refrigerant certificate make a filling or emptying.
GWP: R410A(R32/125:50:50):1950
Notices for R410A models
★
