- 11 -

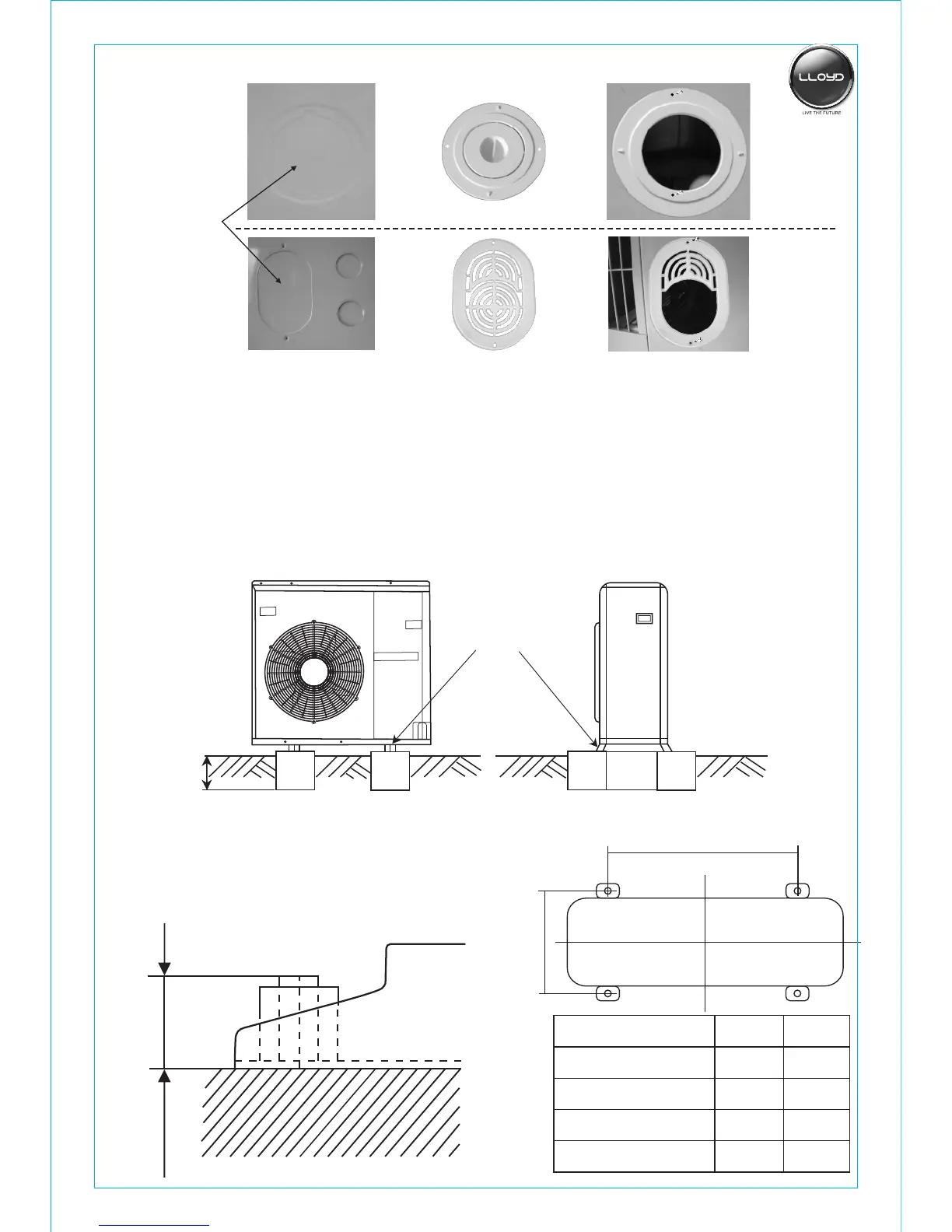

roof outlet bore
Fig 1 Fig 2 Fig 3
Mode 1
Mode 2
●
●
●
The outdoor unit must be firmly fixed to avoid falling in the the strong wind.
Install on the cement base as the drawing below.
The outdoor unit must be installed horizontally.
Length of bolt
Deeply bury
M10 bolt
Attention :
make sure of the length of the screws at
the bottom corners is 25mm.
A
B
Installation outdoor unit bolt
Outdoor Unit Size of
Shape (mm)
A (mm) B (mm)
540 326
800×300×690(590)
539
287
760×260×540
606
354
900×330×860
585
376
945×340×1255
★
Less than 25mm
Outdoor unit installation
