9. Debugging
Should do check carefully the same after finishing wiring to ensure of
correct connection. Don't provide power till everything is going well.

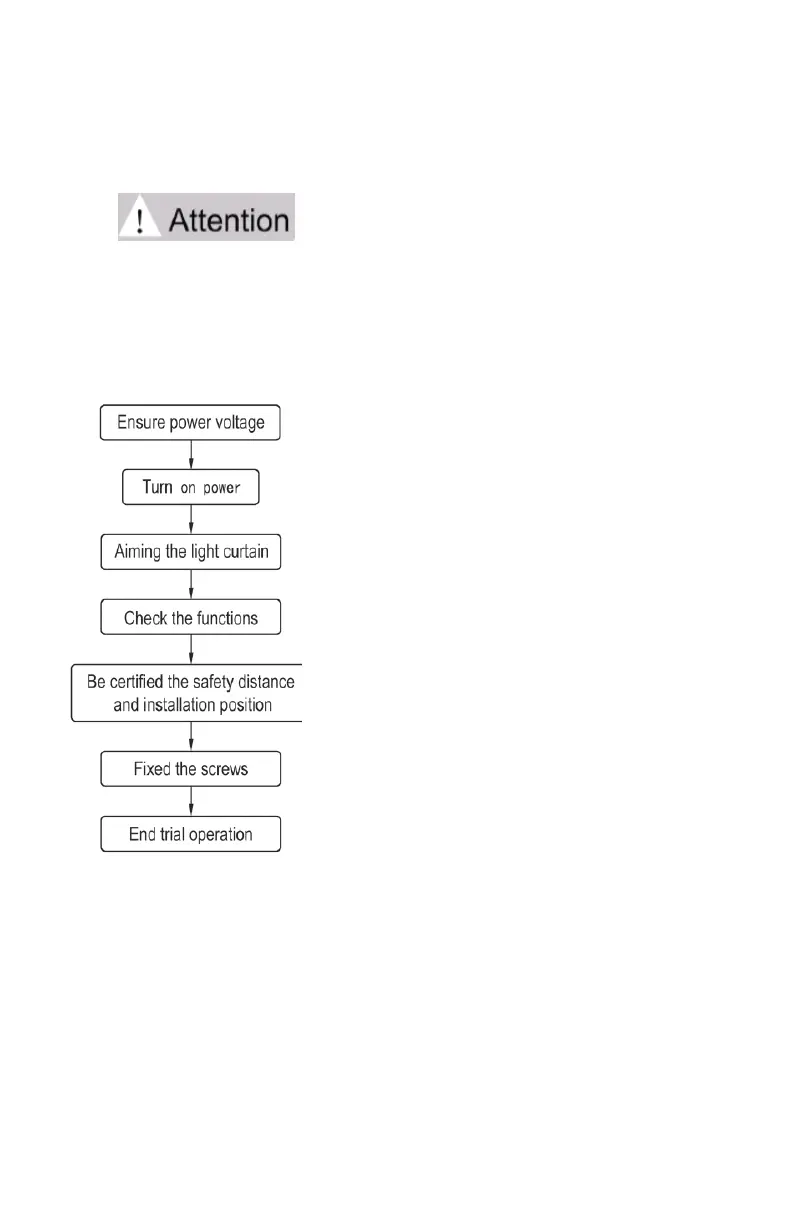

1. Debugging
① check power supply
To ensure the voltage same as that
marked,tolerance: ± 15%
② power on
To connect as per instruction and check carefully before
power on
③ alignment
Adjust sensor's position and angle to make green light
off and red light on
④ test
To interrupt each beam in turn to ensure device runs
well,
Light interrupting,red light on,green light off
Light passing:red light off,green light on
⑤ mounting position
To ensure of the light curtain being active.
⑥ fix the bracket
Fasten the crew to keep stable.
⑦ test end
