1 Service (continued)
Saving parameters (reference the Parameter Table -
Table 1B on pages 13 - 17 of this manual)
To adjust and save parameters (reference FIG. 1-5):
To change a parameter, use the arrows next to the parameter
list on the Menu Screen to highlight the desired parameter,
then press SELECT. A short description of the parameter and
its current setting are then displayed on the bottom half of the
screen. To adjust the setting, use the buttons to the left and
right of the current setting.
Note: If the above mentioned buttons to adjust settings do
not appear, the correct PASSWORD has not been entered.
Press the SAVE button after adjusting a parameter value.
Additional parameter settings can then be adjusted or other
navigation buttons can be used to return to previous screens
or the Home Screen (FIG. 1-1).
Note: The SAVE button MUST BE pressed to ensure proper
programming of the control. Failure to press the SAVE
button will require all changes to be reprogrammed.

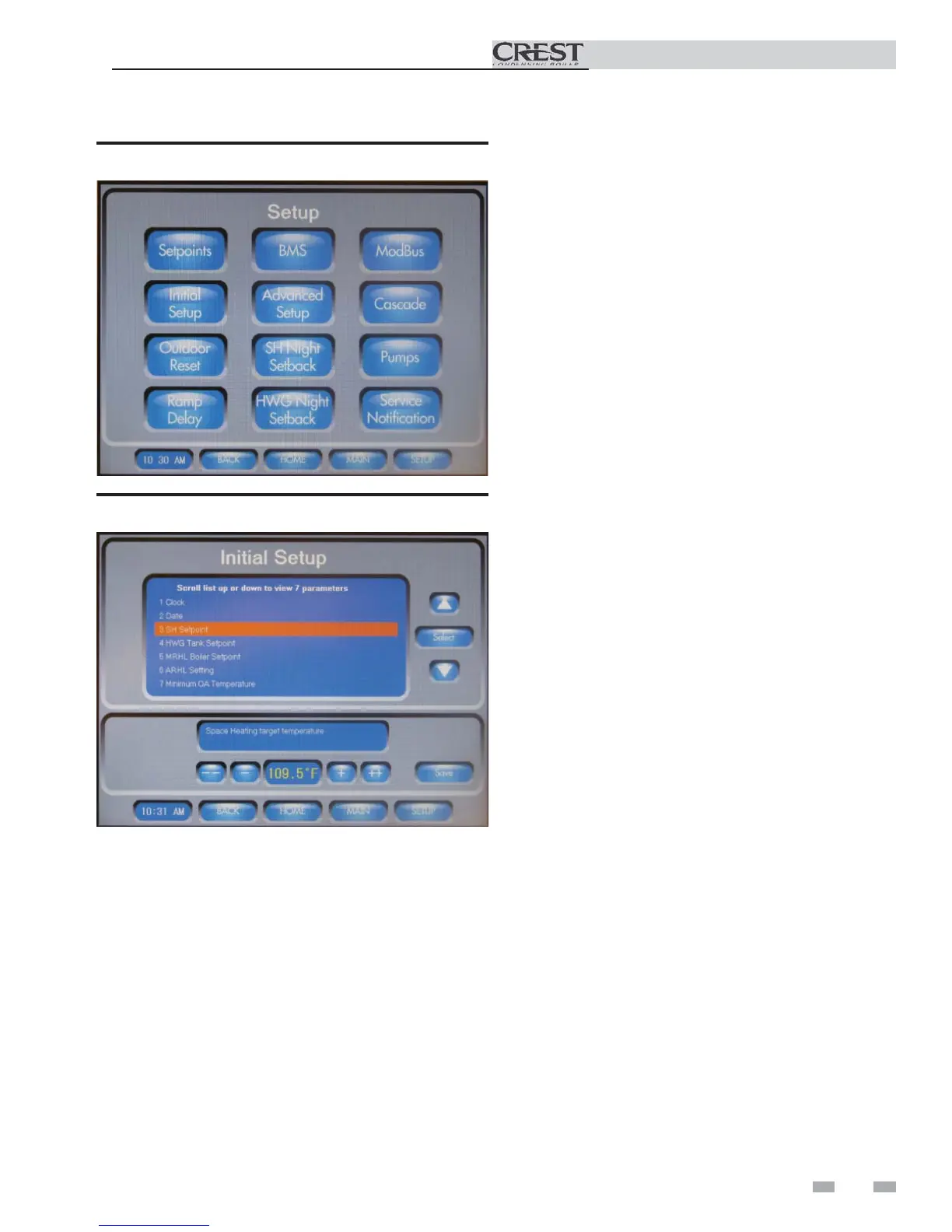

Figure 1-5 Initial Setup Screen
