101+ DELAYED EGRESS
MAGNETIC LOCKING SYSTEM
12
FORM 10111 Rev. C 04/11/2002

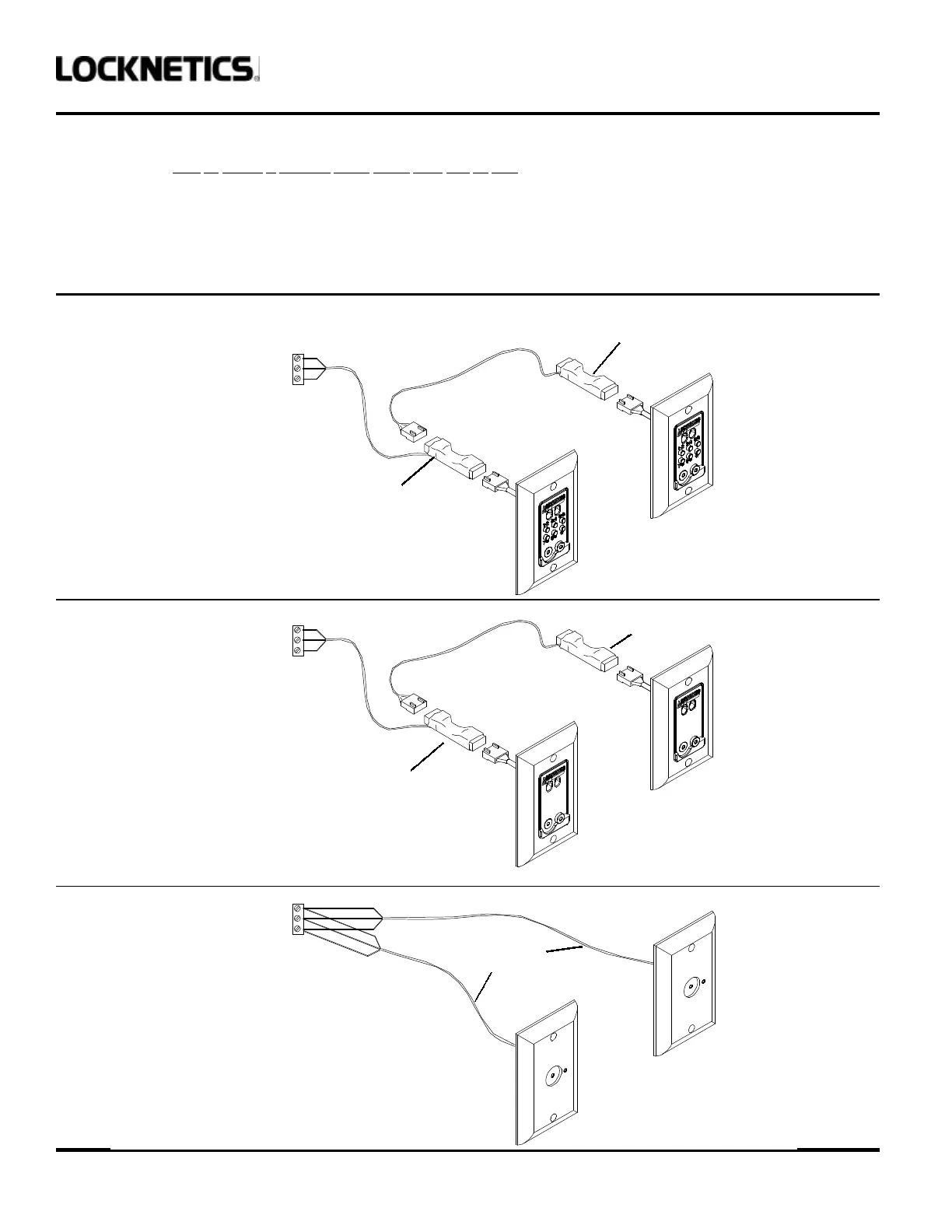

WIRING OF LOCKNETICS KEYPADS/TOUCHENTRY KEY READERS
Up to two Locknetics keypads or TouchEntry Key readers can be hooked up to a 101+ or 101-2+ system for access control and alarm reset input.
Any keypad or TR83/TR84 hook up requires a 100CAB adapter cable. The three-wire 100CAB allows the keypad to be initialized to the lock or allows the TR83/TR84 to
be properly connected. Using the 770CAB (a Locknetics 12-wire adapter cable) does not work! Only one 100CAB can be used. Two keypads or TR83/TR84 readers can
be plugged into a single 100CAB. If the installation requires more distance between the two keypads/readers, an AUXCAB1 or AUXCAB16 can be used to extend the
keypad/reader cables.
If the installation involves TR80 or TR81 TouchEntry Key readers then the two readers must be wired in parallel. 80CAB adapter cables can be used.
100CAB
(REQUIRED)
AUXCAB1 OR AUXCAB16
(RECOMMENDED FOR TWO KEYPADS)
100CAB
(REQUIRED)
80CAB
(REQUIRED)
AUXCAB1 OR AUXCAB16
(RECOMMENDED FOR TWO KEYPADS)
WHITE
BLACK
RED
WHITE
BLACK
RED
WHITE
BLACK
RED
TR80/TR81
HOOK-UP
TR83/TR84
HOOK-UP
KP70+
HOOK-UP
