101+ DELAYED EGRESS
MAGNETIC LOCKING SYSTEM
5
FORM 10111 Rev. C 04/11/2002

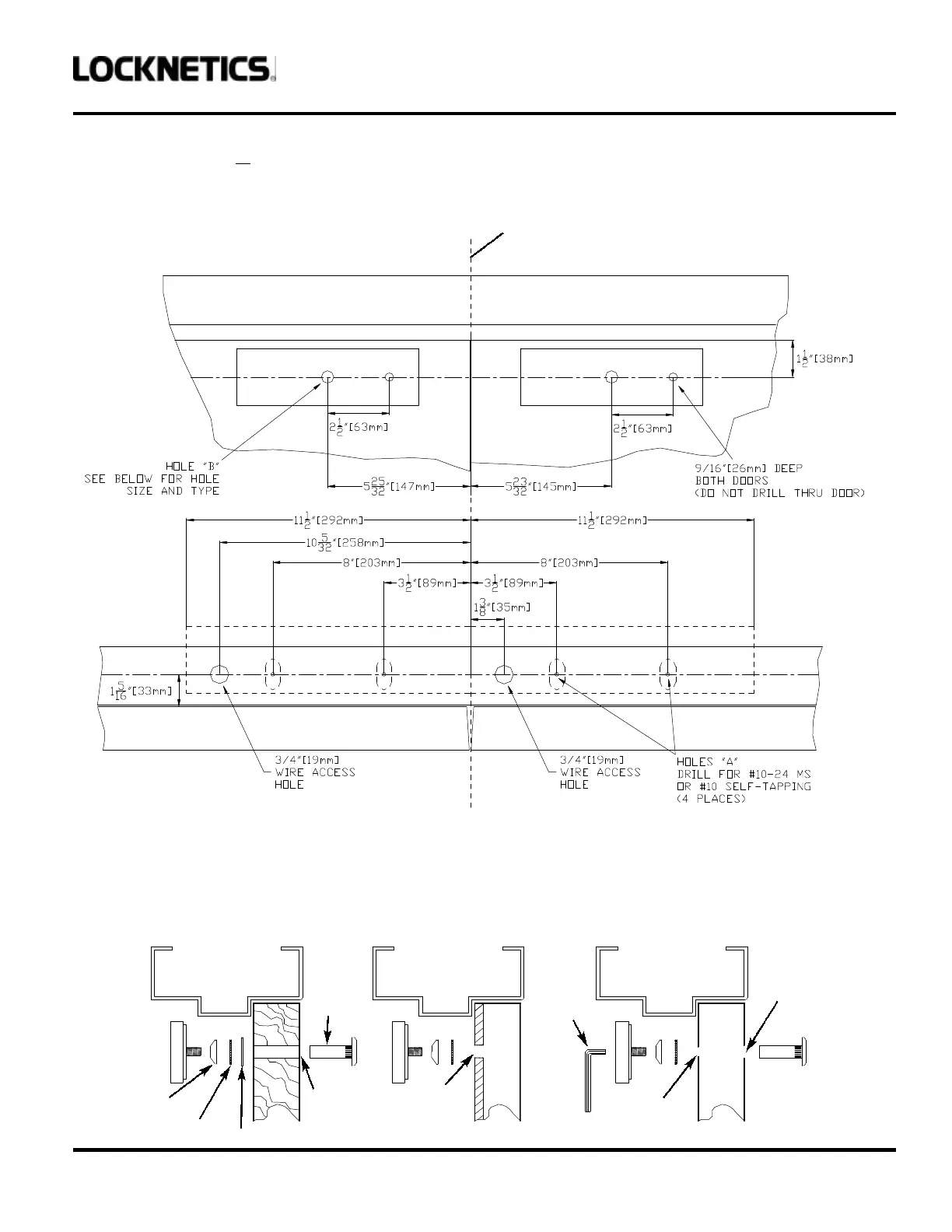

1. PREP DOOR AND FRAME (FOR 101+DB UNITS):
The paper template is the preferable way to prepare the door and frame. If for any reason it is not available, use the dimensions shown below to mark the centerlines of
the holes. Note that the layout is not symmetrical with respect to the centerline of the armature. The parting centerline of the doors should be used as the center of the
door and frame prep.
HOLLOW METAL DOORWOOD DOOR REINFORCED METAL DOOR 2. DRILL 1/2” DIA. HOLE
INTO SKIN OF DOOR ON
SEX NUT SIDE ONLY. DO
NOT DRILL THROUGH
DOOR.
1. DRILL 11/32” DIA.
HOLE THROUGH
DOOR.
DRILL AND TAP
FOR 5/16-18
MACHINE
SCREW.
HEX KEY
STAR LOCKING
WASHER
TAPERED
WASHER
SEX NUT
DRILL 1/2” DIA
THRU HOLE.
FLAT WASHER (WOOD DOORS ONLY)
HOLE “B” FOR MOUNTING ARMATURE IS DETERMINED BY DOOR TYPE:
PARTING LINE OF DOORS
ARMATURE MOUNTING HOLE INFORMATION (ALL MODELS):
