14
18. CH1 Purge: Enables purge of channel 1 dispense valve
19. Working Mode Selection: Run/Stop. ‘Run’ working mode enables the output for each
channel, each channel can be operated via external controller, footswitch and remote
monitoring; ‘Stop’ working mode disables the output for each channel, only enable purge
for each channel.

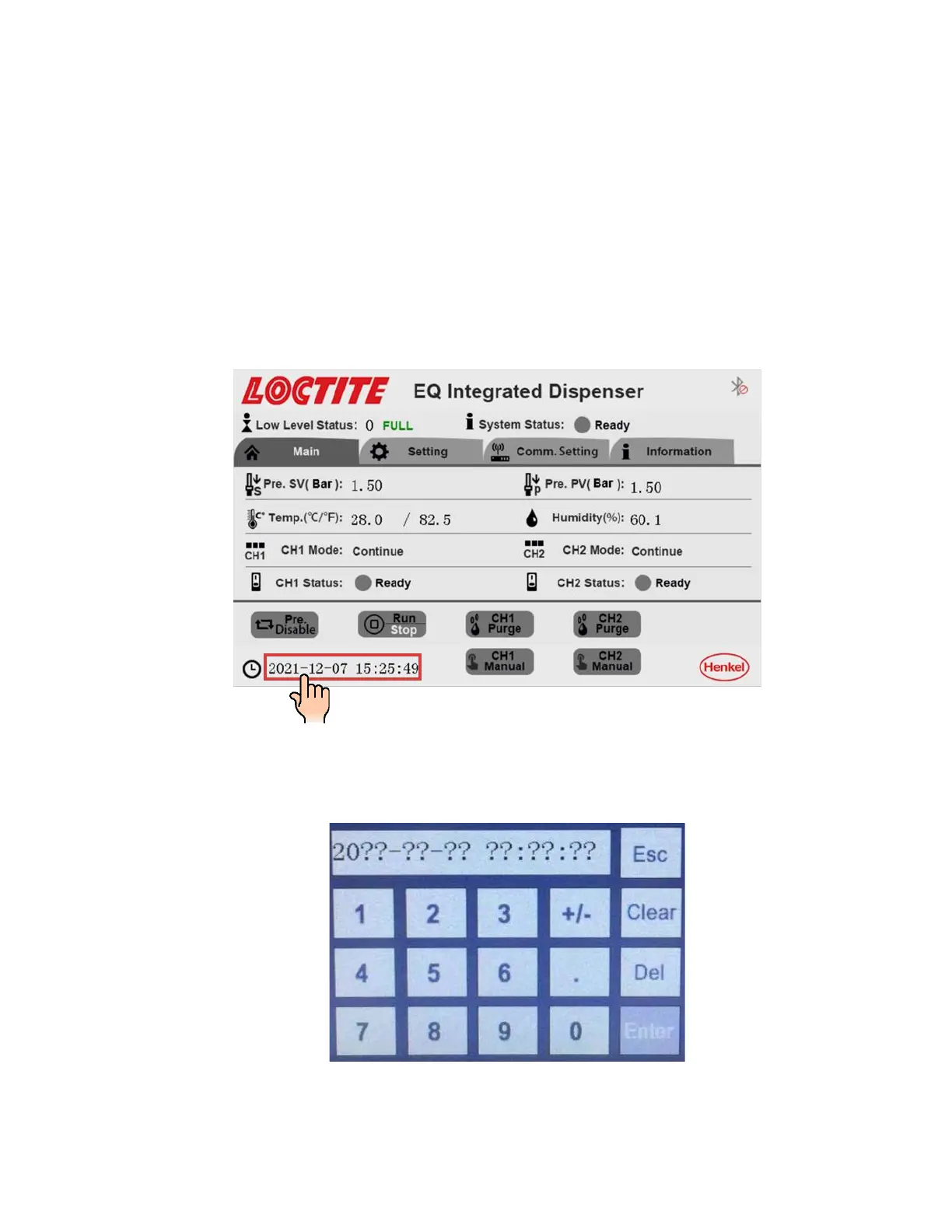

20. System Date/Time: Actual time for use with data collection and analysis. Time and date
are shown in this area. Press and hold on the date shown on the screen for minimum 3s,
operator can edit time and data.
Enter date and time using keypad shown on the screen. Type in digits only, which replace
from left to right the question marks. Date format ISO, yyyy-mm-dd. Press enter to save.
