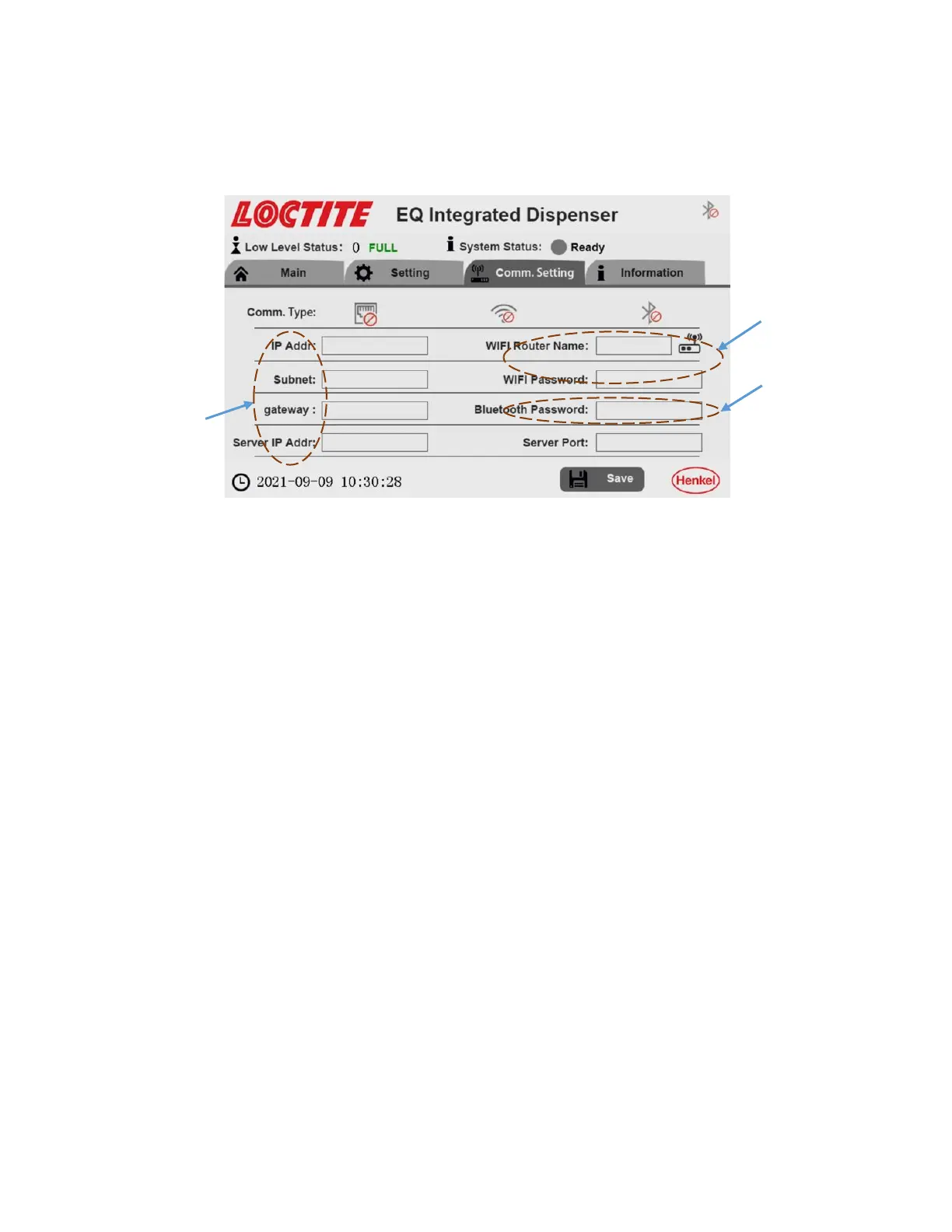

5.4 Communication Setting Page
The dispensing system includes an integrated industry 4.0 function that enables easy remote
monitoring by Wi-Fi, Bluetooth or ethernet.
Introduction to the set-up and configuration using an example based on the NetAssist
program to test the I-4.0 function for the EQ RC50 Integrated dispenser. NetAssist network
debugging assistant is a network testing tool integrating TCP server + client. It is a common
and necessary professional tool in network application development and testing.
1. Ethernet communication function testing
• Setup the laptop as a server (specify static IP address for server), connect
laptop to router, build a LAN.
• Connect reservoir to LAN via ethernet (Using crossline connect directly to the
laptop if there is no router), specify IP address/ subnet mask, gateway for EQ
RC50 Integrated dispenser, Open software Netassist on laptop.
• Enable connection on software.
• Send command on software page, check the status or response on EQ RC50
Integrated Dispenser I-4.0 User Interface.
