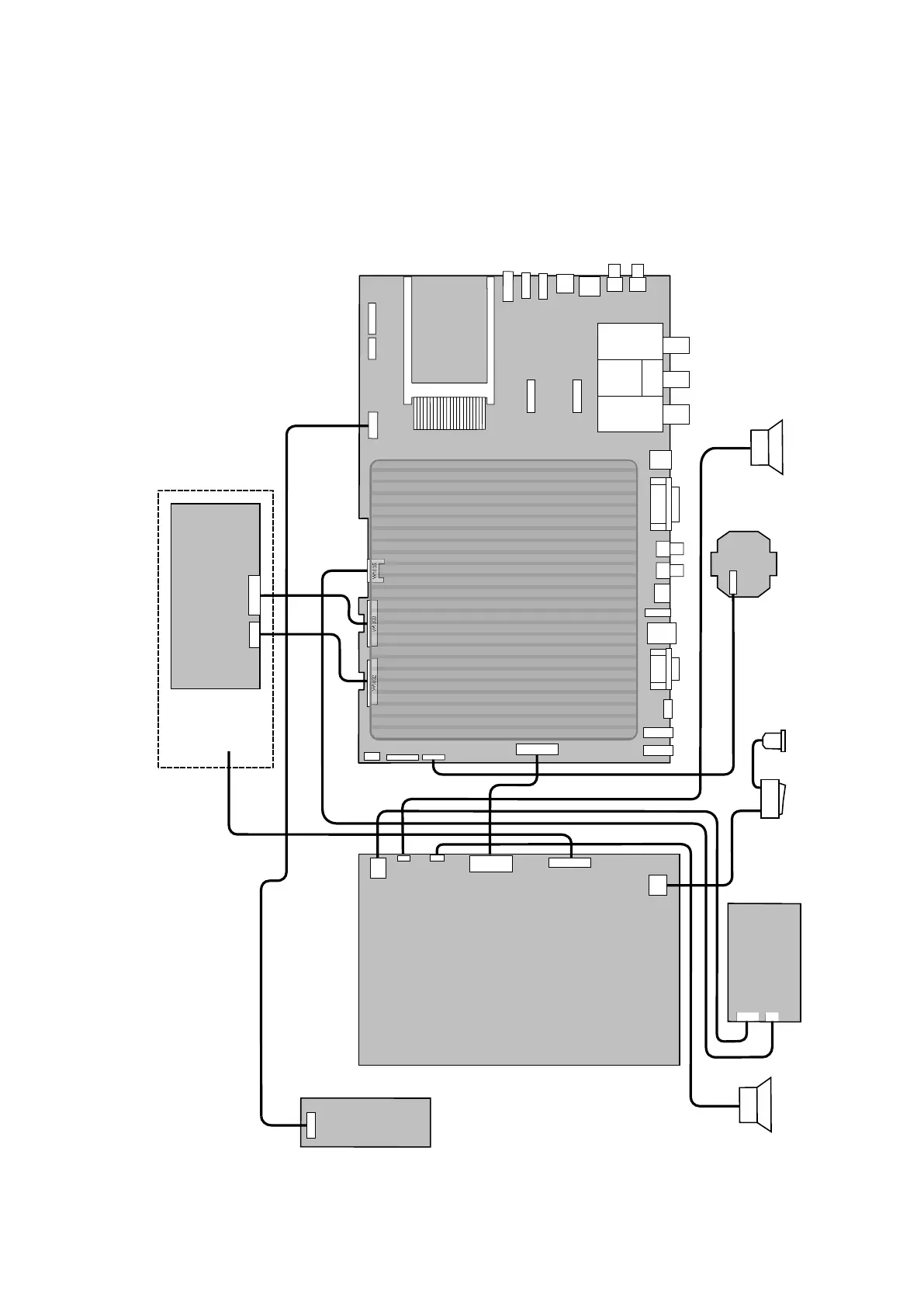

Verdrahtungsplan / Wiring diagram Connect ID 46 DR+
Netzschalter Main switch 35187
~230V
70657.052
Signal-Board
71295.050
W1028
W1031
W1032
W1033
W1035
W1030
W1027
W1022
W1023
W1017
W1012
W1039
W1135
W1008
W1006
W1005
W1004
W1003
W1002
W1001
W1000
W1013
W1025
W1000
W1004
W1006
W1007
Basic-Board 46z
71298.052
W1000
W1001
Audio Interface
AudioLink
70627.051
70233.055
W5031
Bedieneinheit
Control Unit
71701.063
LCD 3DLE 100 FHD
71251.001
LED Backlight
71383.051
71046.053
71046.054
70587.003
70601.001
rot
Festplatte Hard disc
2.5z 500 GB 34123.070
nat
W1002
71366
L
R
nat
W6001
Kartenleser Double
PCM CIA
34974
W1030
W6721
W1009
A7000
W1003
W2503
W2504
W6501
W6711
W6701
W6831
W6821
W2501
W2502
W1009
WLAN 2.4/5 GHz
71306.001
71366
nat
rot
70782.002
71046.059
71345.051
71139.002
70941.002
71046.058
71343.001
71381.001
71006.001
71339.001
W7000
W7001
9pol.
41pol.
7pol.
51pol.
11pol.
15/2pol.
4pol.
4pol.
30pol.
7/15pol.
2pol.
40pol.
40pol.
