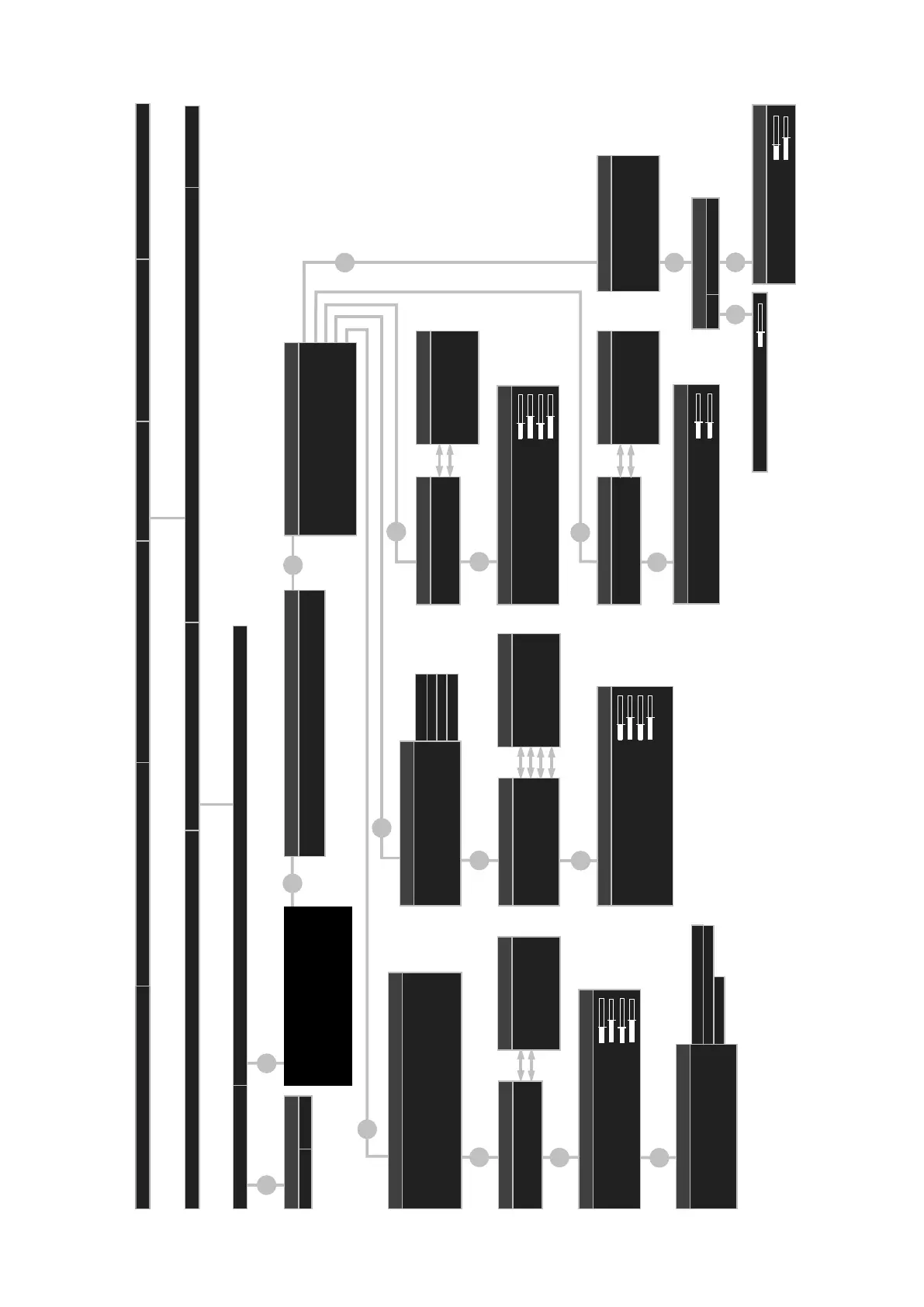

TV Menu Page 3
dependent on the integrated features of TV set, of soft ware version and on the selected station menu points can be cancelled or be changed
Sound
Recording
Connections
Sound components
Antenna DVB
AV connecting settings
Miscellaneous
OK
Antenna DVB-T
Antenna DVB-S
no (0V)
yes (5V)
Supply voltage
ANTENNA WIZARD The following system has been set: Satellite system
Single satellite 2 satellites on 22kHz switchbox 2 satellites in toneburst switch Ma. 4 satellites on DiSEqC multiswitch other comunal installation
Select satellite installation
Low band 9750 MHz High band 10600 MHz
LNB frequencies
Satellite 1 -------------- Satellite 2 -------------- *
Satellite selection
Satellite 1 Low Band 9750 MHz Satellite 1 High Band 10600 MHz Satellite 2 Low Band * 9750 MHz Satellite 2 High Band * 10600 MHz
LNB frequencies
Repeat rate Control voltage 13/18V
22kHz Signal
Toneburst
Antenna DVB-S
1 off Band
Position
2 | none on Position | off Option | off
ASTRA1 19,2°E ASTRA2 28,2° - -
Select satellite x
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
Only one, connected to the ANT SAT socket Two, connected to the ANT SAT and ANT SAT2 socket
Number of satellite antenna cables
: SMART DPA-51 TECHNIROUTER-51 : Other
Select DiSEqC single cable communal installation
OK
OK
Transmission channel
Transmission frequency
PIN protection * Define/change PIN *
Manual registration (for socket x)
1 1284 no 000
2 | 3 | 4 | 5 | 6 | 7 | 8 1400 | 1516 | 1632 | .....
yes
OK
OK
OK
OK
no
yes (with 0/22 kHz)
High band
*not for all systems available
Satellite 1 --------------
Satellite 2 --------------
Satellite 3 -------------- Satellite 4 --------------
Satellite selection
ASTRA1 19,2°E ASTRA2 28,2° - -
Select satellite x
Satellite 1 Low Band 9750 MHz Satellite 1 High Band 10600 MHz Satellite 2 Low Band 9750 MHz Satellite 2 High Band 10600 MHz
:
LNB frequencies
Satellite 1 -------------- Satellite 2 --------------
Satellite selection
ASTRA1 19,2°E ASTRA2 28,2° - -
Select satellite x
Satellite 1 Low Band 9750 MHz Satellite 1 High Band 10600 MHz Satellite 2 Low Band 9750 MHz Satellite 2 High Band 10600 MHz
LNB frequencies
Satellite 1 -------------- Satellite 2 --------------
Satellite selection
ASTRA1 19,2°E ASTRA2 28,2° - -
Select satellite x
Satellite 1 9750 MHz Satellite 2 9750 MHz
LNB frequencies
ASTRA1 19,2°E ASTRA2 28,2° - -
Select single satellite
Low band 9750 MHz
OK
Settings
CA module
