Loewe Individual 55 Compose 3D, Individual 46 Compose 3D, Individual 40 Compose 3D, Individual 32 Compose 3D Service Manual

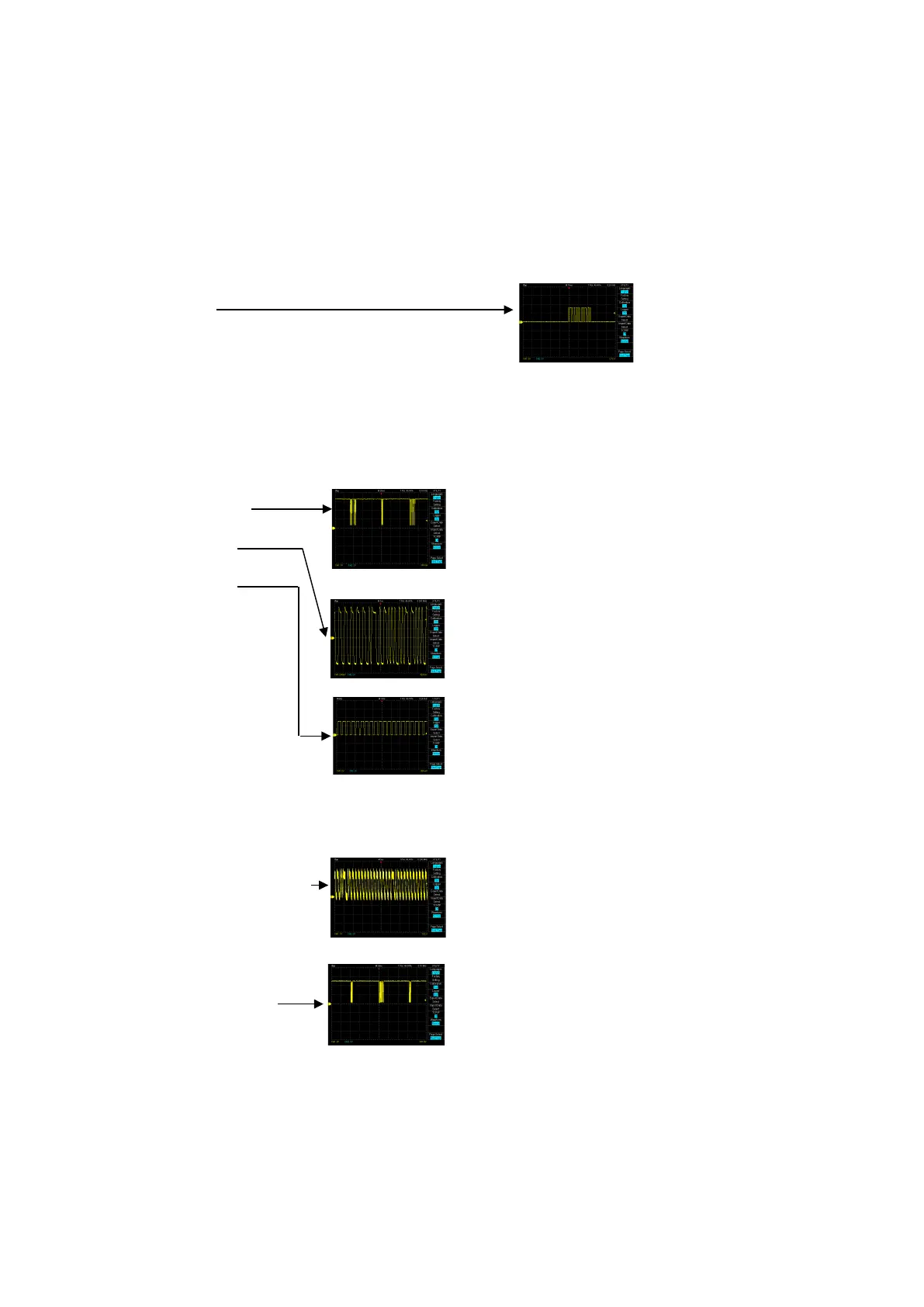

20

 GND

 OPC-Sensor ( 0,8V - 3,2V)


LED GREEN/YELLOW (5V GREEN=ON / 0V YELLOW=ON / 2,5V GREEN/YELLOW=OFF)

 RSIG
 U5SB 5V
 LED WITH DR (0V=ON / 5V=OFF)
 LED BLUE (OPTIONAL)
 LED RED/GREEN DR (0V=RED ON / 5V=GREEN ON / 2,5V RED/GREEN OFF)

 GND  EXT_SPEAKER_CON
 SCL_(5)_33  AMP_RESET
 SDA_(5)_33  MUTE_ALL
 SPDIF  SPDIF 2
 GND  GND
 DIMMING  HDD POWER ON/OFF
  GND
 GND  GND
 U12 (12,3V)  U12
 U24 (23,4V)  U24
 GND  GND
 U5 (5,15V)  U5
 U3.3 (3,35V)  U3.3
 GND  BL_STATUS
 U5SB (5V)  ON/OFF (ON = 0V / OFF = 3,8V)

 GND  GND
 SPDIF AUDIO LINK 1  A_5_1_L
 GND  GND
 SPDIF AUDIO LINK 2  A_5_1_C
 GND  GND
 TRIGGER (2)  A_5_1_R
 GND  GND
 SDA_(5)_5_SW  A_5_1_SUB
 GND  GND
 SCL_(5)_5_SW  A_5_1_SL
 GND  GND
 U5SB_EXT  A_5_1_SR
 U5SB_EXT  GND
 U5SB_EXT  U12_TRIGGER
 U5SB_EXT  GND
    
Signal Board zu Bedienteil
Key 2 Taster (+ = 2,7V) /( - = 2,3V) (Key 1/2 keine Taste betätigt = 3,4V)
Key 1 Taster (M = 2,7V) / (R = 2,3V)
LED RED (5V=off/ 0V=on)
Signal Board zu Basic Board
Backlight ON/OFF
Signal Board zu Audio Interface
