Logic II Series User Manual

Installation Manual WTS3 Series II
M013610b.doc 10

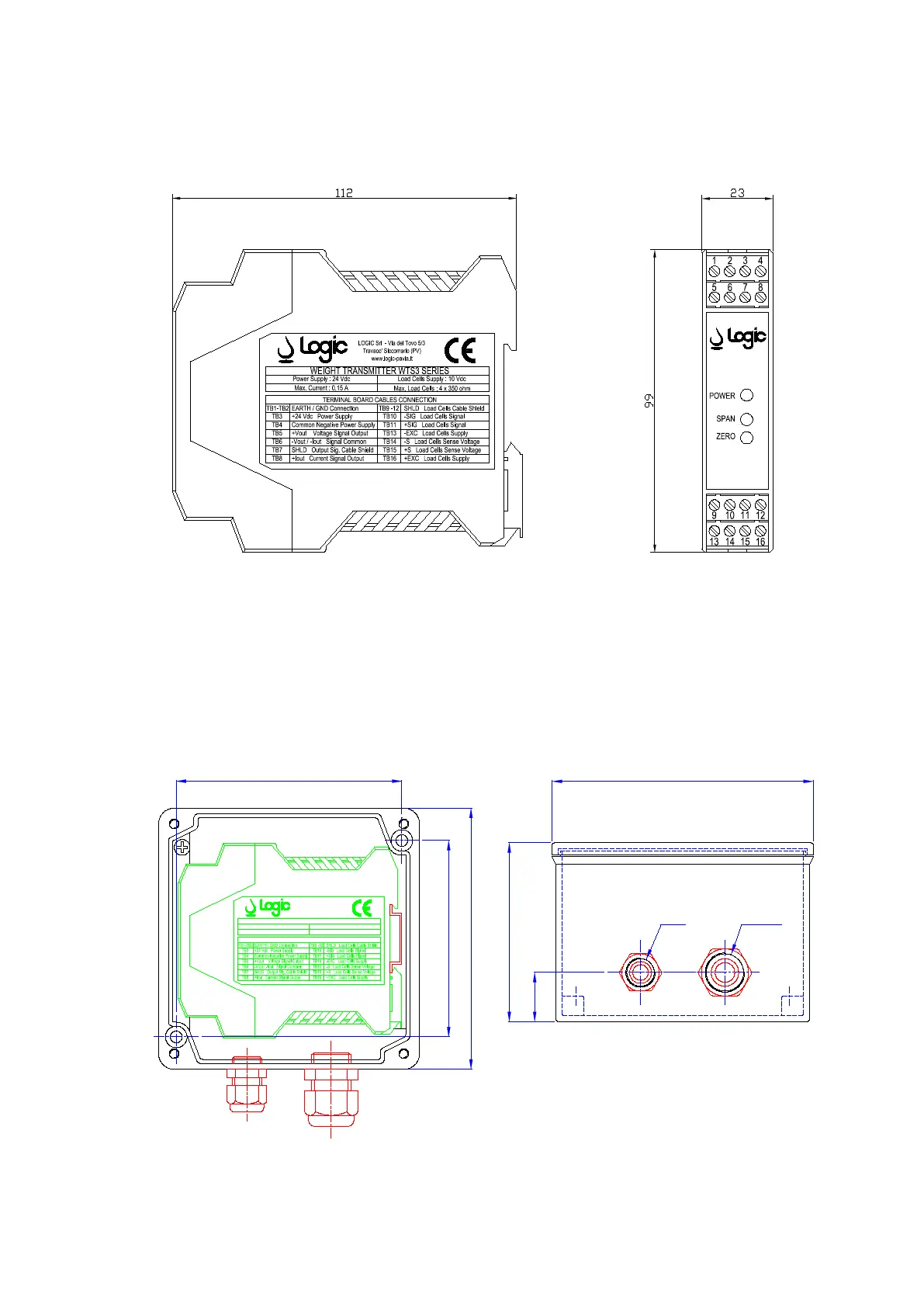

MECHANICAL DIMENSIONS WTS3
MECHANICAL DIMENSIONS WTS3-B
PG13,5
PG9
TERMINAL BOARD CABLES CONNECTION
WEIGHT TRANSMITTER WTS3 SERIES
Max. Current : 0,15 A
Power Supply : 24 Vdc
Load Cells Supply : 10 Vdc
Max. Load Cells : 4 x 350 ohm
LOGIC Srl - Via del Tovo 5/3
Travaco' Siccomario (PV)
www.logic-pavia.it
91
115
100
133
133
25

Logic II Series Specifications

General

Brand	Logic
Model	II Series
Category	Transmitter
Language	English
