Logic LG-HSW401-4K

HDMI2.0 4x1 Switcher
www.logicav.in 14
8. EDID Management
8.1 Predefined EDID Setting

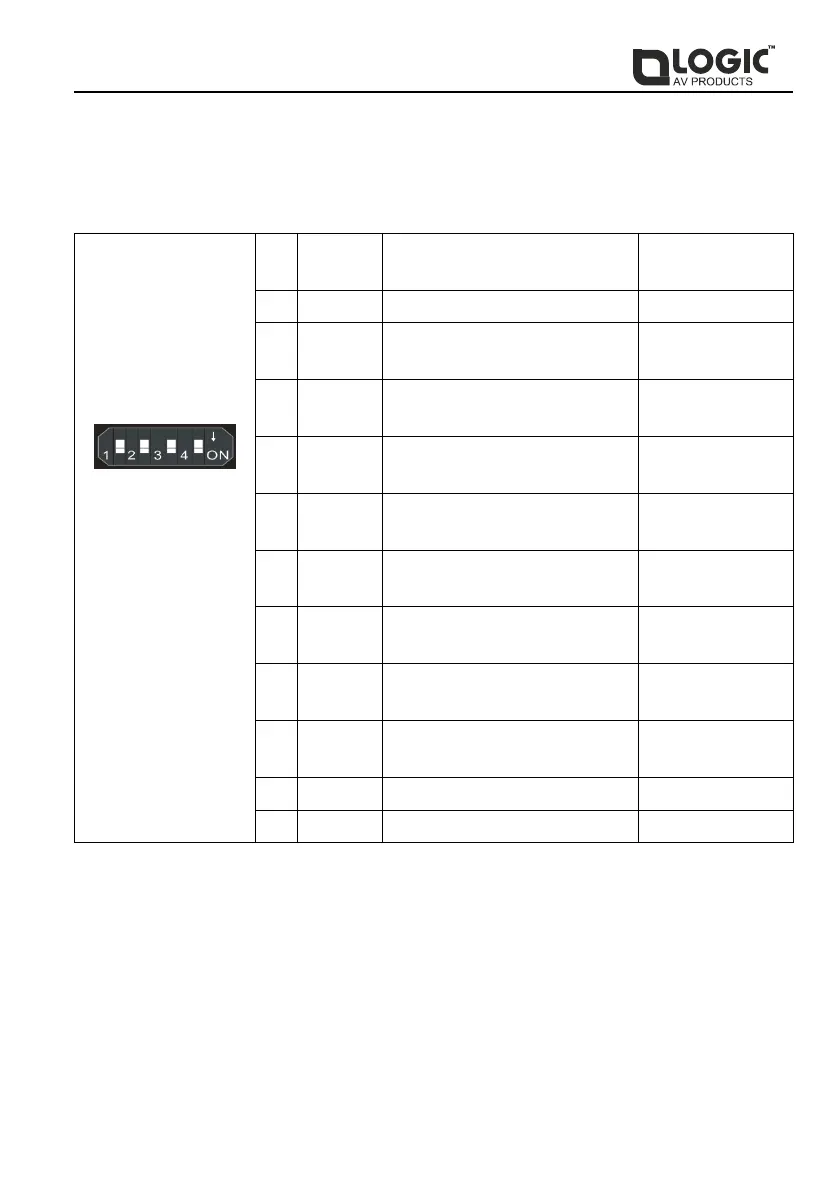

The rear panel boasts a 4-pin DIP switch to set the predefined EDID. The ten types of
embedded EDID and their corresponding switch status are shown in the below list.
When in the lower
position, the switch
represents “ON”,
while putting the
switch in the up
position, it
represents “OFF”.
ID
Switch
Status
Video
Audio
0
0000
Pass though
Pass though
1
0001
1920x1080p@60Hz 4:4:4
RGB 8bit
Stereo
2
0010
1920x1080p@60Hz 4:4:4
RGB 8bit
High Definition
3
0011
1920x1080p@60Hz 4:4:4
RGB 12bit
Stereo
4
0100
1920x1080p@60Hz 4:4:4
RGB 12bit
High Definition
5
0101
3840x2160p@60Hz 4:2:0
RGB 8bit
Stereo
6
0110
3840x2160p@60Hz 4:2:0
RGB 8bit
High Definition
7
0111
3840x2160p@60Hz 4:4:4
RGB 10bit HDR
Stereo
8
1000
3840x2160p@60Hz 4:4:4
RGB 10bit HDR
High Definition
9
1001
1280x800@60Hz
Stereo
10
1010
1920x1200@60Hz
Stereo
