HDMI2.0 4x1 Switcher
www.logicav.in 4
3. Panel Description

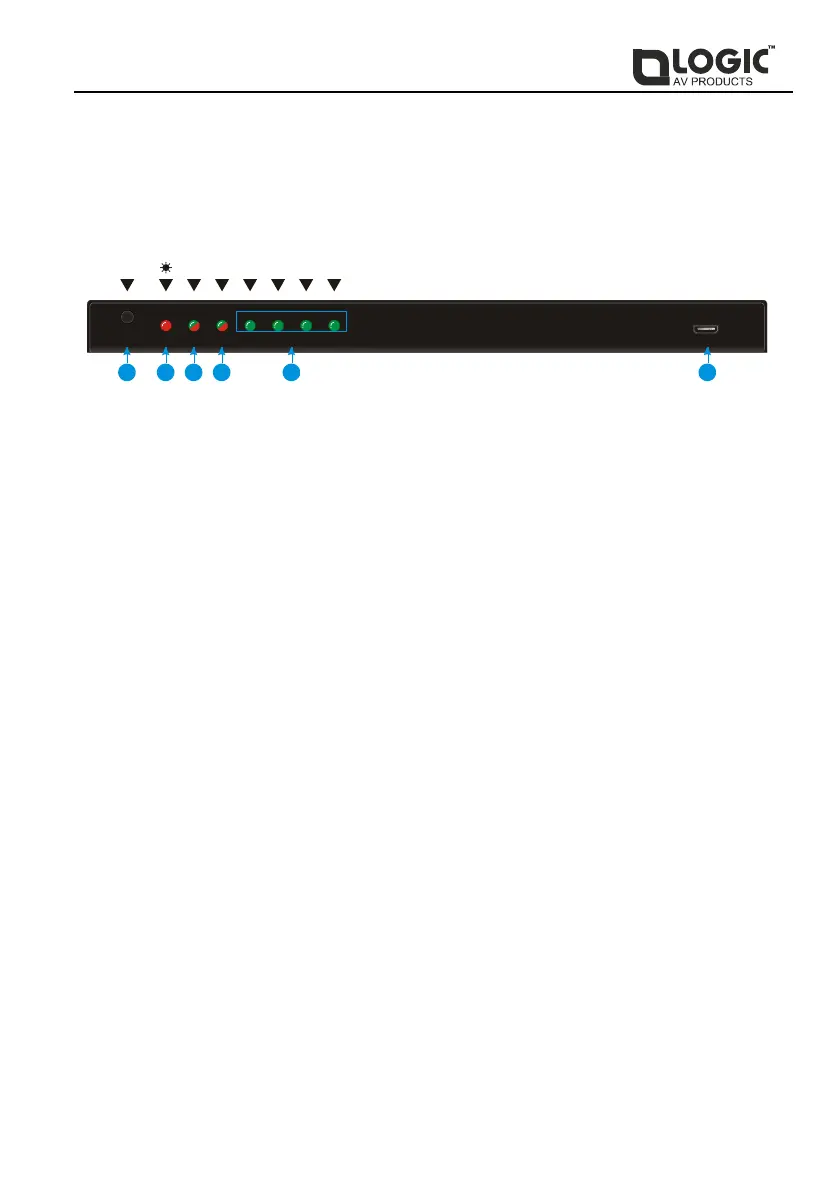

3.1 Front Panel
① Auto/Source Button:
Press to switch to next input source.
Press and hold at least three seconds to switch between manual mode and auto
mode.
② Power LED: The LED illuminates red when power is applied.
③ Audio Mode LED:
Illuminates green when de-embedding audio.
Illuminates yellow when in ARC mode.
④ Switching Mode LED:
Illuminates green in manual switch mode.
Illuminates yellow in auto-switch mode.
⑤ Input 1~4 LED: The LED illuminates green when there is HDMI input on the
corresponding channel.
⑥ FIRMWARE: Micro-USB port for firmware upgrade.
FIRMWARE
AUTO
SOURCE AUDIO MODE
1 2 3 4
1
2
3
4
5 6
