HDMI2.0 4x1 Switcher
www.logicav.in 5

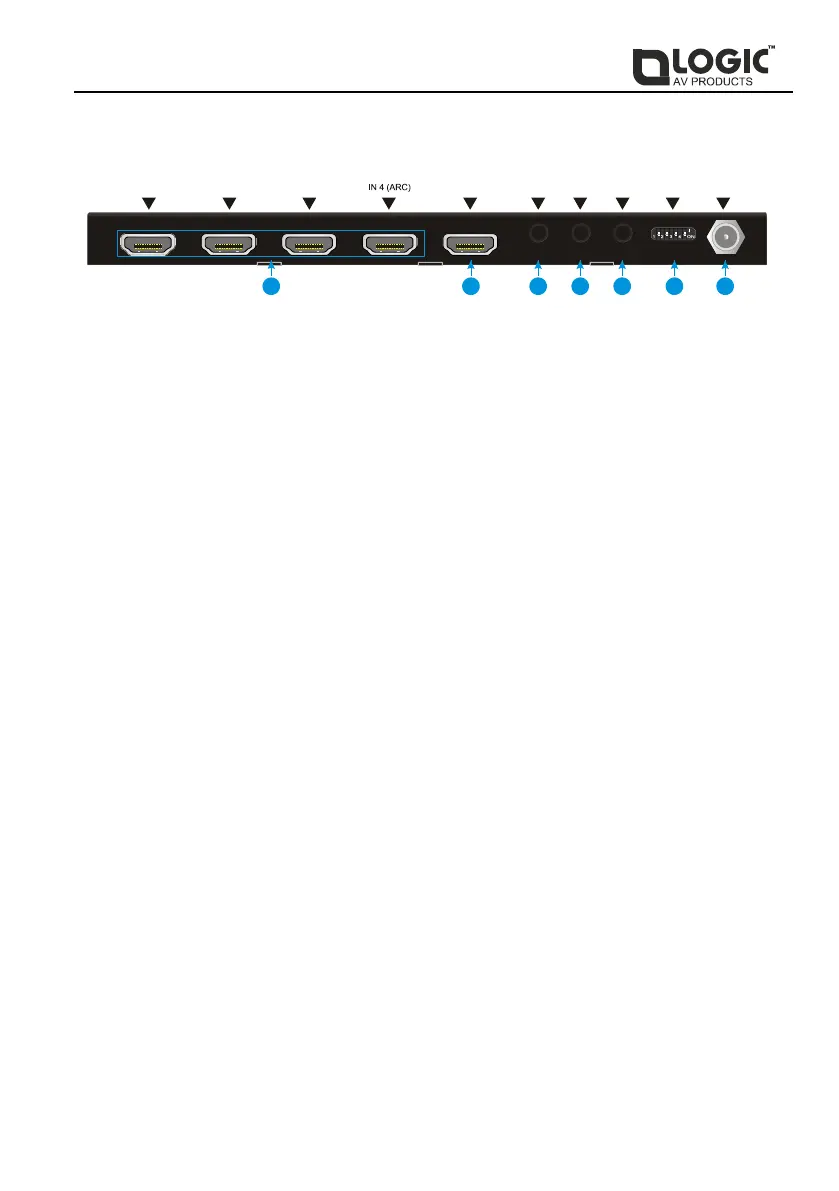

3.2 Rear Panel
① IN 1~4: Four type-A female HDMI input ports to connect HDMI sources. The input
4 port supports ARC.
② OUT: Type-A female HDMI output port to connect HDMI display.
③ AUDIO: 3.5mm mini jack for analog audio output.
④ RS232: 3.5mm mini jack to connect control device (e.g. PC).
⑤ IR IN: 3.5mm mini jack to connect the included IR receiver for remote control.
⑥ EDID: 4-pin DIP switch for EDID setting.
⑦ DC 5V: DC port to connect a 5V DC AC power adapter.
Note: Output HDCP compliant status depends on input signal. When the input signal
is with HDCP, then output signal is with HDCP and vice versa.
DC 5VEDIDIR INRS232AUDIOOUT
IN 1 IN 2
IN 3
1
2
3
4
5
6
7
