ML350G-10 Industrial Computer
11

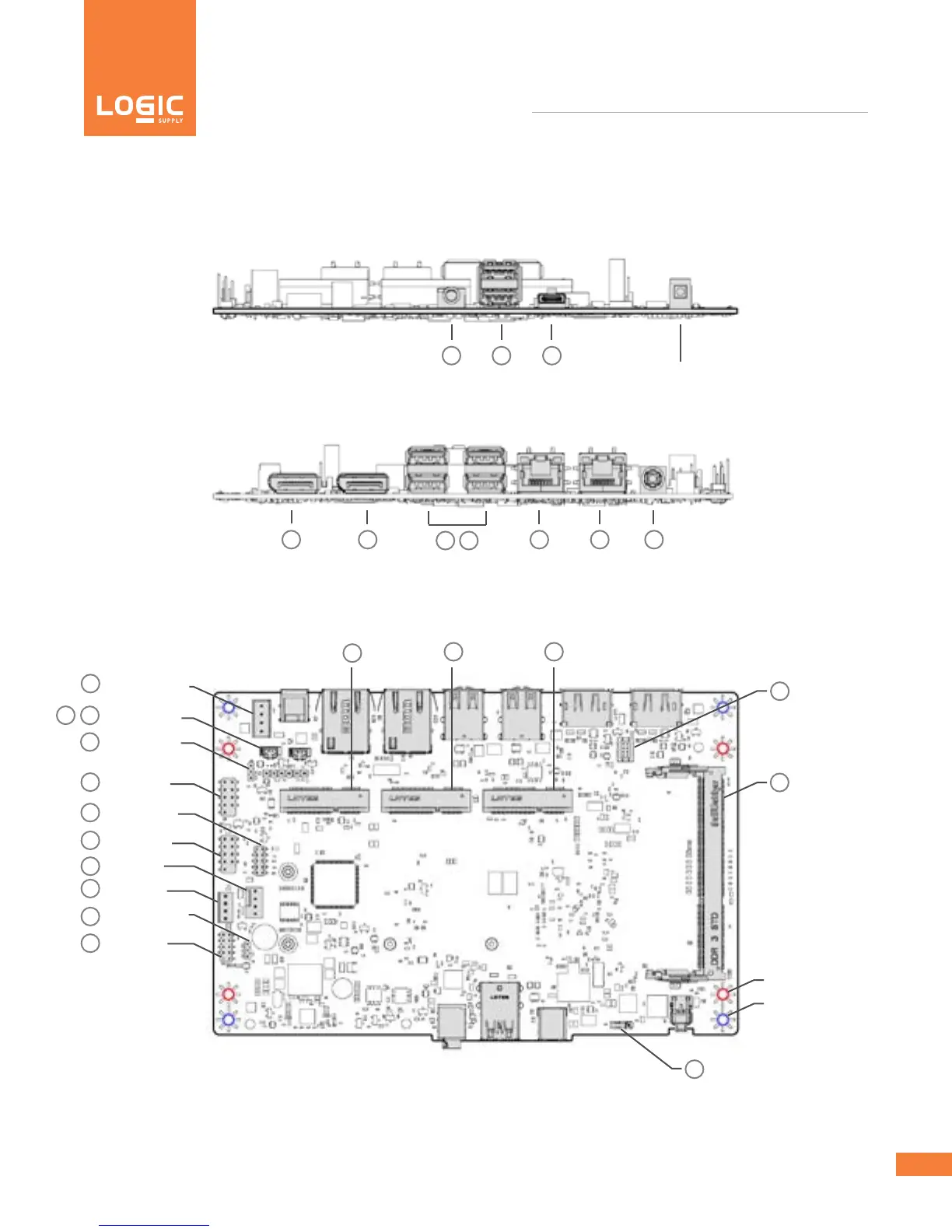

6 - Motherboard Overview
Power Button
USB C
USB 3.0
Audio
In/Out
LAN2
LAN1
(Optional)
USB 2.0
DisplayPort 2
DisplayPort 1
Power In
Power In Header
Battery Header
CECHeader
Memory Slot
HeatsinkMounting
Board Mounting
AT/ATXJumper
COM Header
COM Header
Debug Header
FanHeader
SATAPower
Ambient Header
USB Header
Clear CMOS Jumper
mPCIe/mSATA
mSATA
mPCIe
1
14
11
12
13
25
24
15
16
17
18
19
20
21
23
22
27
2
3
4
5
6
7
8
9
26
10
10
12
Table of Contents
Default Chapter
2
Table of Contents
2
1 About Logic Supply
3
Contact Information
3
2 Legal Disclaimer
4
3 Safe Use and Installation Instructions
5
4 What's in the Box
6
What' in the Box
6
5 System Overview
7
System Diagram
7
System Specifications
8
Nct6793D
8
Mounting Hole Pattern
9
Mounting Guide
10
6 Motherboard Overview
11
Jumpers and Headers Guide
12
Configuring Jumpers
13
Onboard Headers
14
Usb3.0
15
4
