ML350G-10 Industrial Computer
15

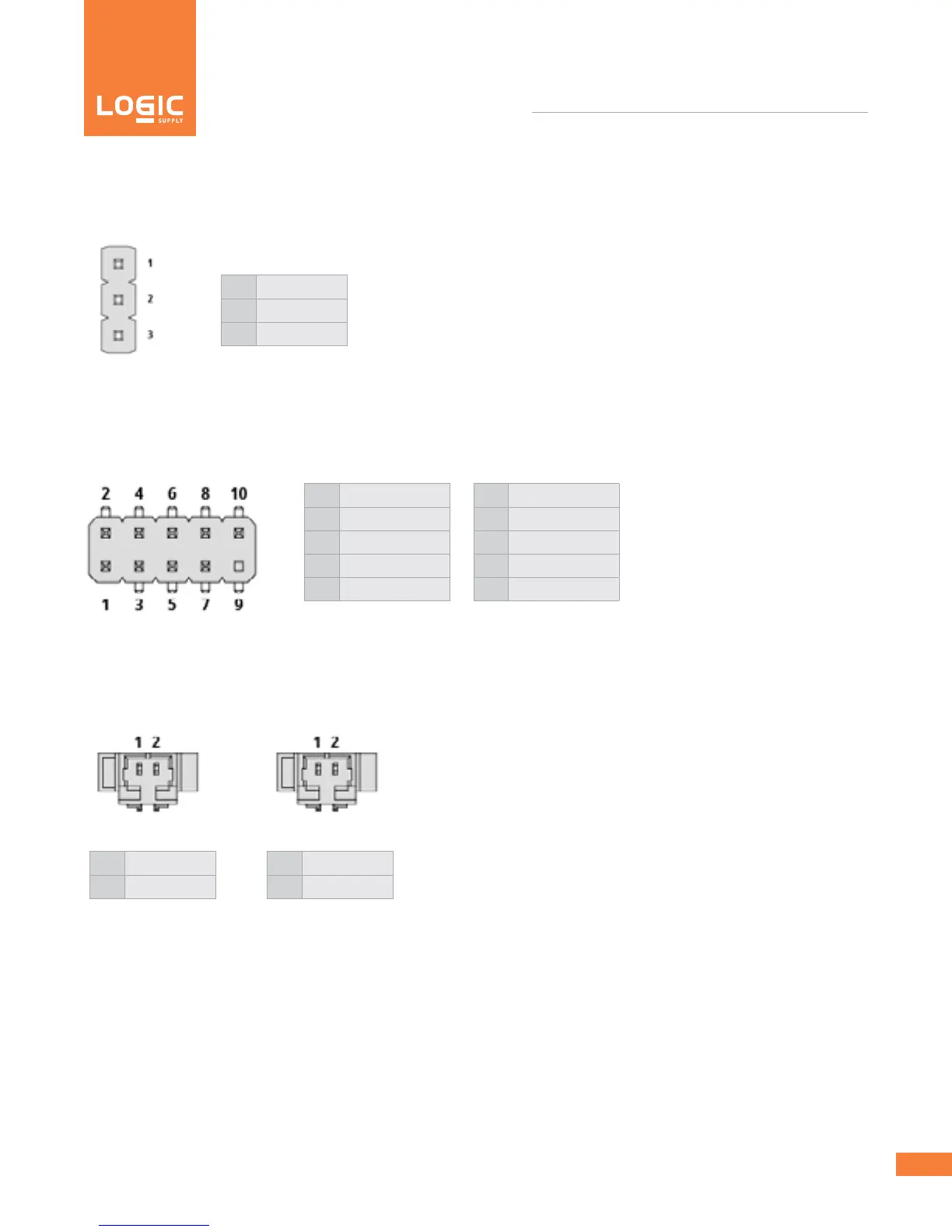

J12_USB
TheJ12_USBconnectorsupportstwoUSBports.
J23_Ambient Header
TheJ23_AMBIENTconnectorprovidesSystemManagementBus(SMBus)communication.
1
SMBusClock
2
SMBus Data
3
GND
1
5V_USB
3
Data(Negative)
5
Data (Positive)
7
GND
9
Key
2
5V_USB
4
Data(Negative)
6
Data (Positive)
8
GND
10
None
XBT1_BATTERY and XBT2_BATTERY
ConnectthesystemandbackupbatteriestotheXBT1_BATTERYandXBT2_BATTERYconnectors.
1
3V
2
GND
1
3V
2
GND
14
Table of Contents
Default Chapter
2
Table of Contents
2
1 About Logic Supply
3
Contact Information
3
2 Legal Disclaimer
4
3 Safe Use and Installation Instructions
5
4 What's in the Box
6
What' in the Box
6
5 System Overview
7
System Diagram
7
System Specifications
8
Nct6793D
8
Mounting Hole Pattern
9
Mounting Guide
10
6 Motherboard Overview
11
Jumpers and Headers Guide
12
Configuring Jumpers
13
Onboard Headers
14
Usb3.0
15
