GB
6
Preparation
5. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 100 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately). Mount
this TV according to the instructions included in the
mounting kit. Due to space restrictions, we recommend
that you make all connections (refer to pages 12-15 and
page 46 for details) before mounting on to the wall.
3. To install the base stand, attach the base stand with
the arrows facing down. Then use the 3 screws to fix
the base stand to the TV.
4. To remove the base stand, lay the TV down on a flat
surface with the back side facing up. Please make sure
to place a soft cushioned material (such as a pillow or
thick piece of foam) beneath the screen. Untighten
the 3 screws that hold the base stand to the rear of
the TV. Slide the base stand out.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
screw
unscrew

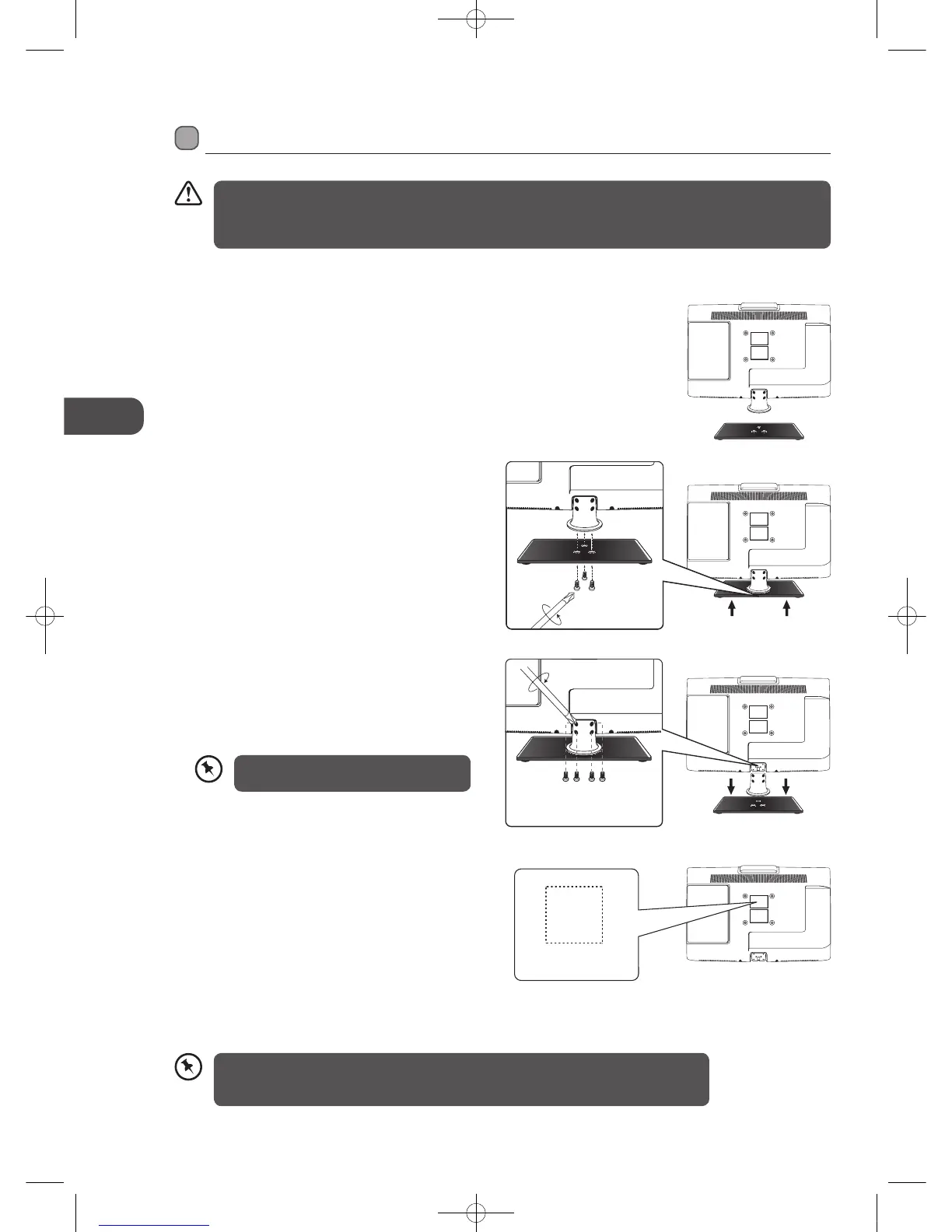

Installing / Removing the Base Stand
100 mm
100 mm
Four mounting holes
(Screw size M4 x 10mm)
Please read this instruction manual carefully while setting up your TV.
If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK
Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
Keep all the spare screws should you want
to use the base stand option.
Remove the base stand before mounting the TV onto the wall.
The LED display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LED display, comes into contact with
it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
Screw A x 3
(P.N.: 0103020024)
Screw B x 4
(P.N.: 103010046)
