Connections
14

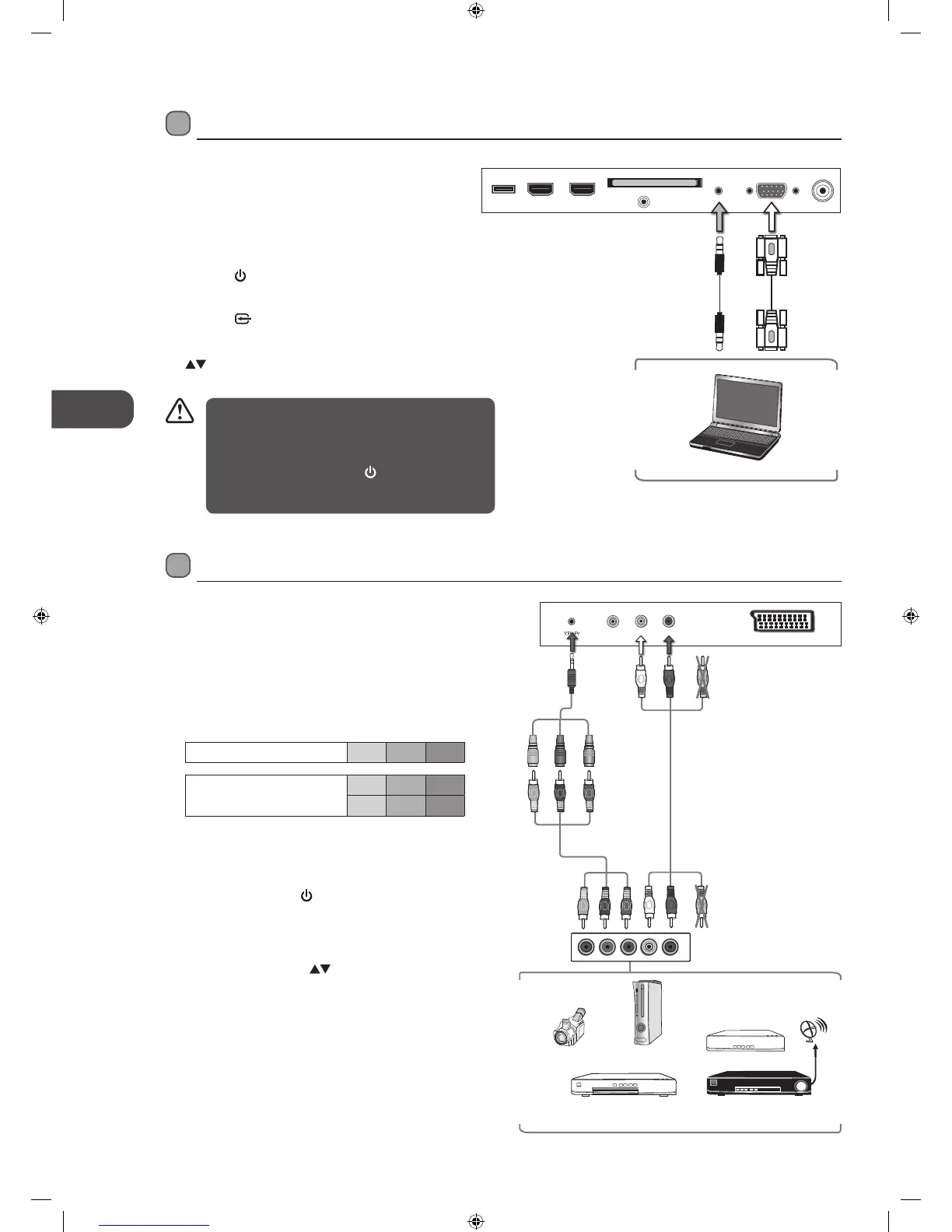

ConnectinganAVDeviceUsingaComponent(YPbPr)Cable
1. Connect the supplied component adapter cable
and a component cable from the TV’s YPbPr input
sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio
Right = red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press theSTANDBY button on the front right side
panel of the TV or the
button on the remote
control to turn on your TV.
5. Press theSOURCE button on the front right side
panel of the TV or on the remote control to display
the Source List. Use the
buttons to select YPBPR
and then press the OK button to confirm.
ConnectingaComputerUsingaVGACable
1. Use a VGA cable to connect the TV’s PC IN input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side bottom panel of
the TV or on the remote control to turn on your TV.
4. Press the
button on the right side bottom
panel of the TV or the INPUT button on the
remote control to display the Source List. Use the
buttons to select PC and then press theOK
button to confirm.
• The best resolution is 1366 x 768.
• If your computer is set to shut down after a few
minutes in the idle mode, the TV will also switch
to standby due to no signal being received, this
is to save energy. Press the
button on the right
side bottom panel of the TV or on the remote
control to restart the TV.
Rear Right Side View of TV
Computer
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE
PC AUDIO
VGA Cable
(not included)
Audio Cable
(not included)
RLVIDEO
SCART
YPbPr
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Analogue Game
Console
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
Component
Adapter
Cable
(included)
Blue (Pb/Cb)
Red (Pr/Cr)
Green (Y)
Rear Bottom View of TV
