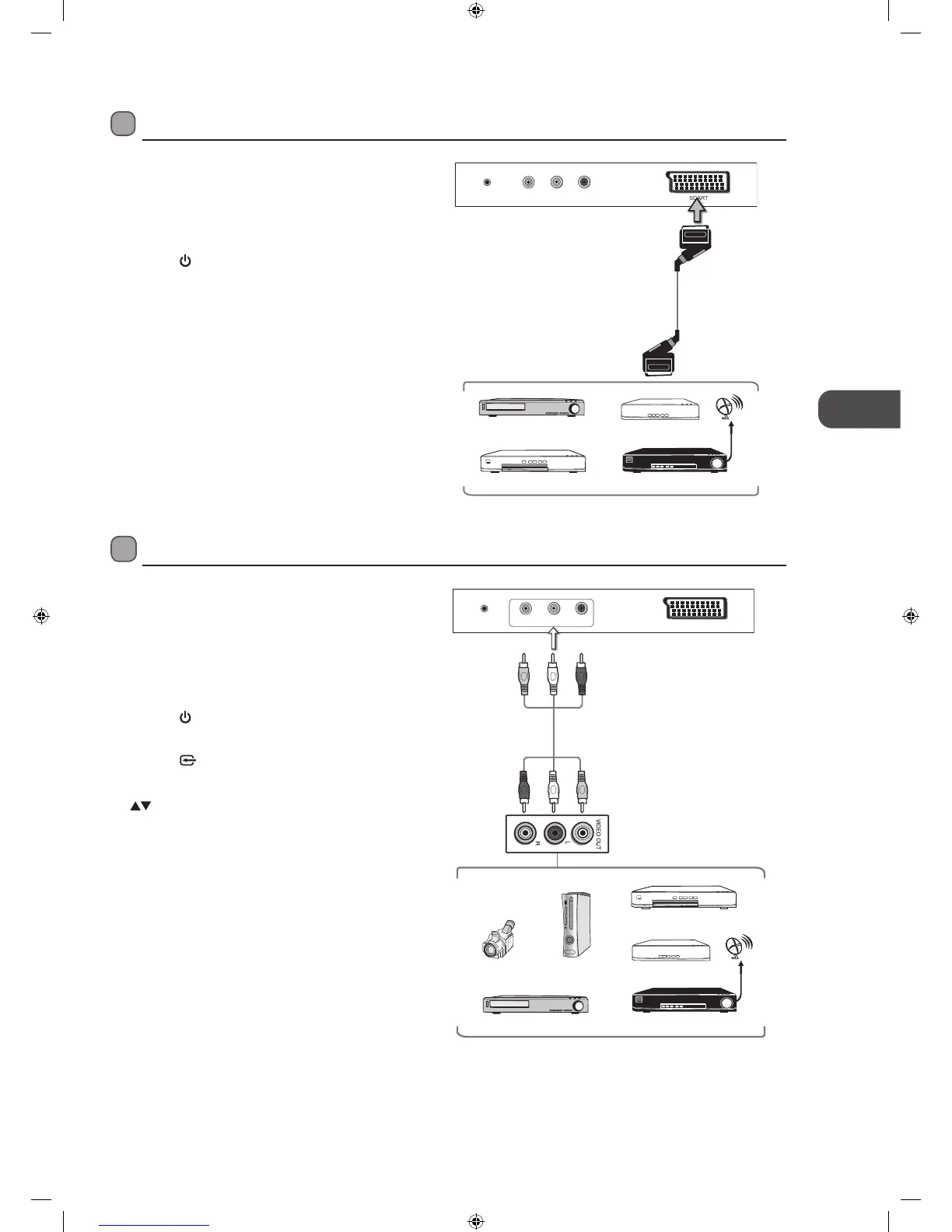

Connections
15
ConnectinganAVDeviceUsingaSCARTCable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side bottom panel of
the TV or on the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
ConnectinganAVDeviceUsingCompositeCable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side bottom panel of
the TV or on the remote control to turn on your TV.
4. Press the
button on the right side bottom
panel of the TV or the INPUT button on the
remote control to display the Source List. Use the
buttons to select AV and then press theOK
button to confirm.
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
RLVIDEO
SCART
YPbPr
Rear Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
RLVIDEO
SCART
YPbPr
SCART Cable
(not included)
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
Rear Bottom View of TV
