Logik L32HE12 User Manual

GB
8
Preparation

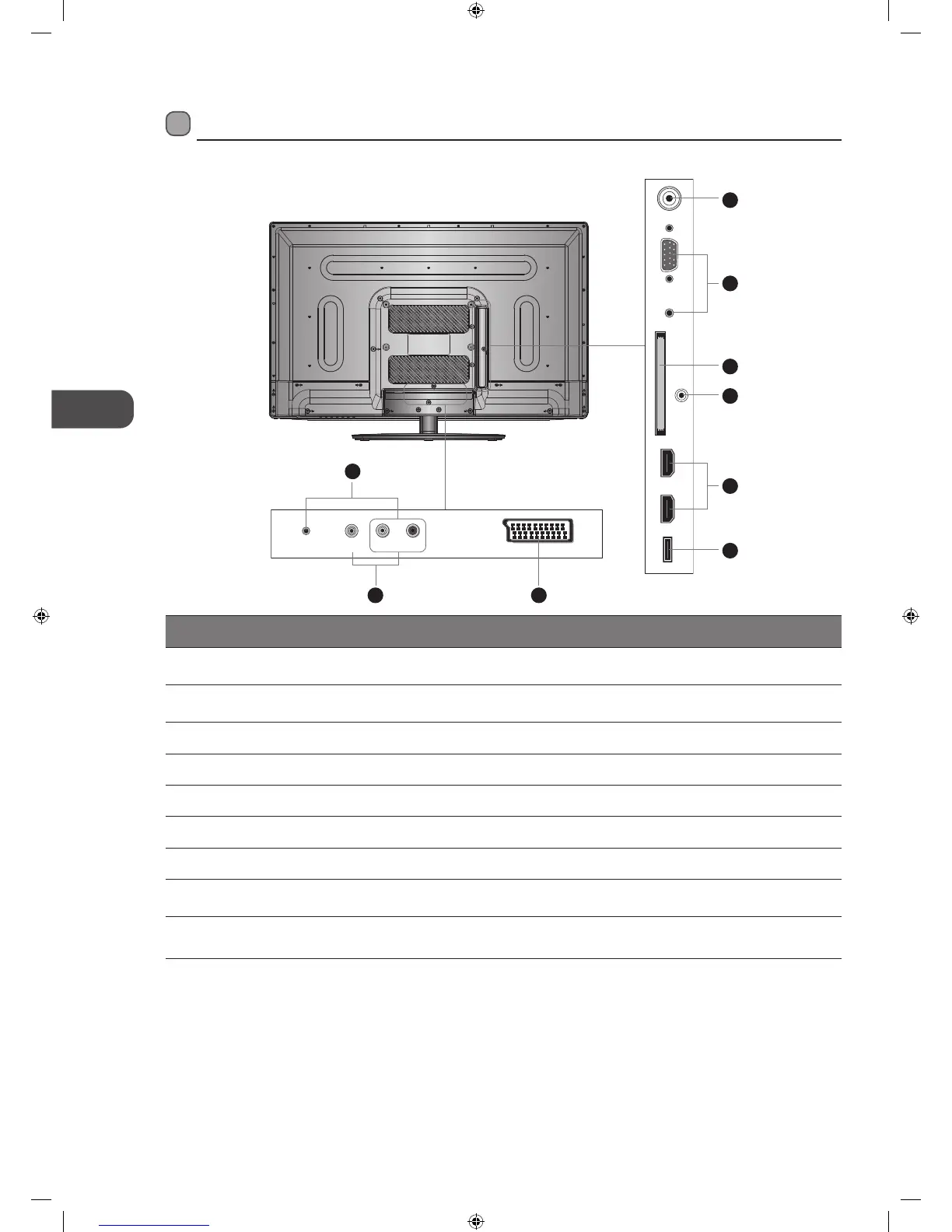

RearViewandSockets
Socket Description
1 YPbPr/AUDIOIN(L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets via the included component adapter cable.
2 VIDEO/AUDIO(L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 RFAerial Connects to the aerial socket on the wall with the RF coaxial cable.
5 PCIN/PCAUDIO Connects to a computer or other devices with a VGA interface.
6 COMMONINTERFACE Allows the insertion of a Common Access Module. (Refer to page 24 for details.)
7 HEADPHONE Connects to the headphones.
8 HDMI1/HDMI2
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
9 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE
PC AUDIO
4
5
6
7
9
8
RLVIDEO
SCART
YPbPr
32
1
L32HE12_IB_Running Change_120528_Annie.indd 8 12年5月28日 下午7:01

Logik L32HE12 Specifications

General

Brand	Logik
Model	L32HE12
Category	LED TV
Language	English
