103 | EN
14.2 Displacement of Catalysor

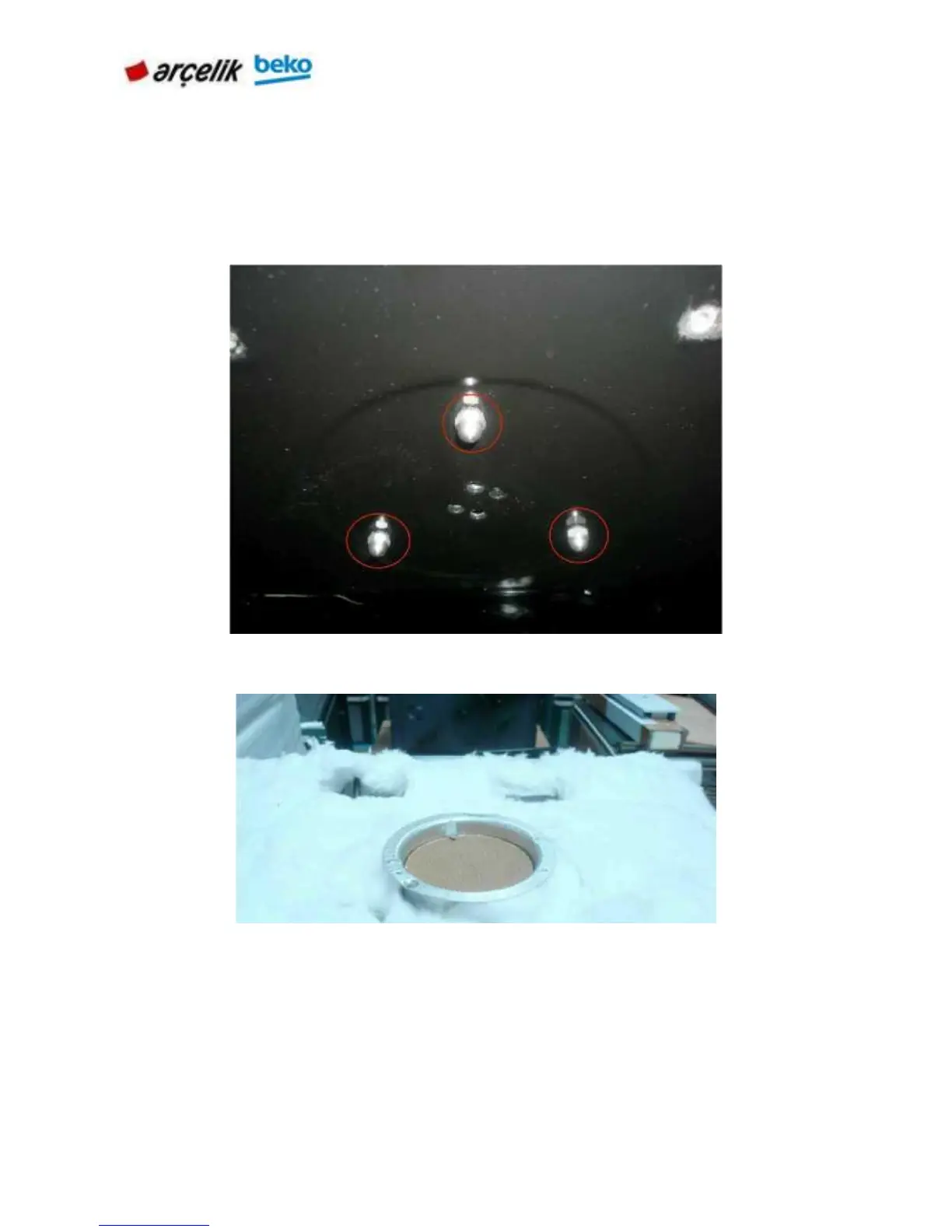

Firstly,remove oven top sheet metal and ventilation sheet. As shown from the figure
catalysor fix to the oven top sheet by 3 boits.These screws are placed inside the cavity
celling
Unscrew 3 screws and change catalysor why new one.
14.3 Replacement door lock
Remove the top wall. Door lock is assembled next to the ventilation sheet. Unscrew the
screw that tixed the lock to cavity.
