75 | EN

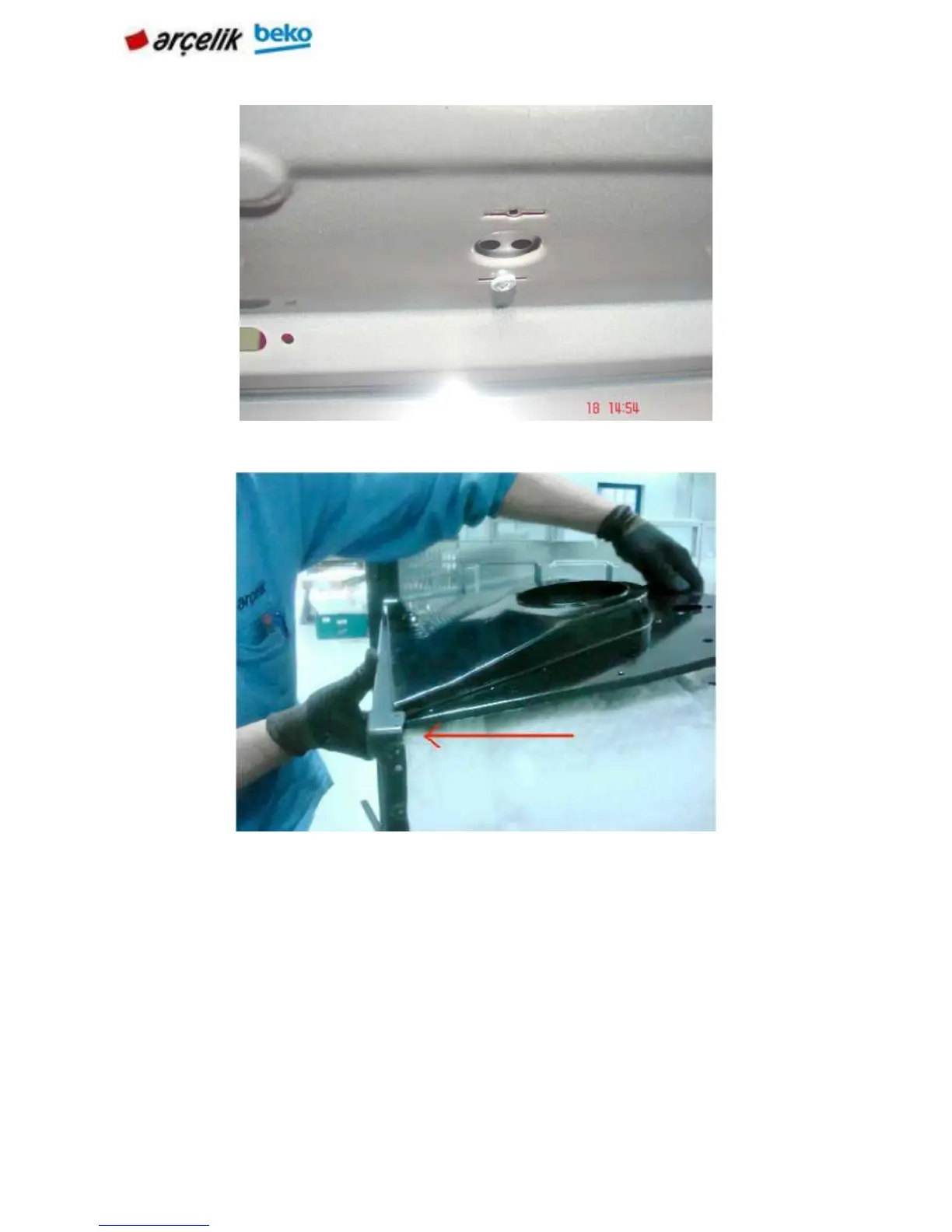

Ventilation sheet metal could be removed by pulling it as shown in the figure.
13.16 Replacement of the ventilation thermostat
Firstly remove oven cover upper sheet metal. Ventilation thermostat is tixed to ventilation hole
by two screws.
