26
| EN

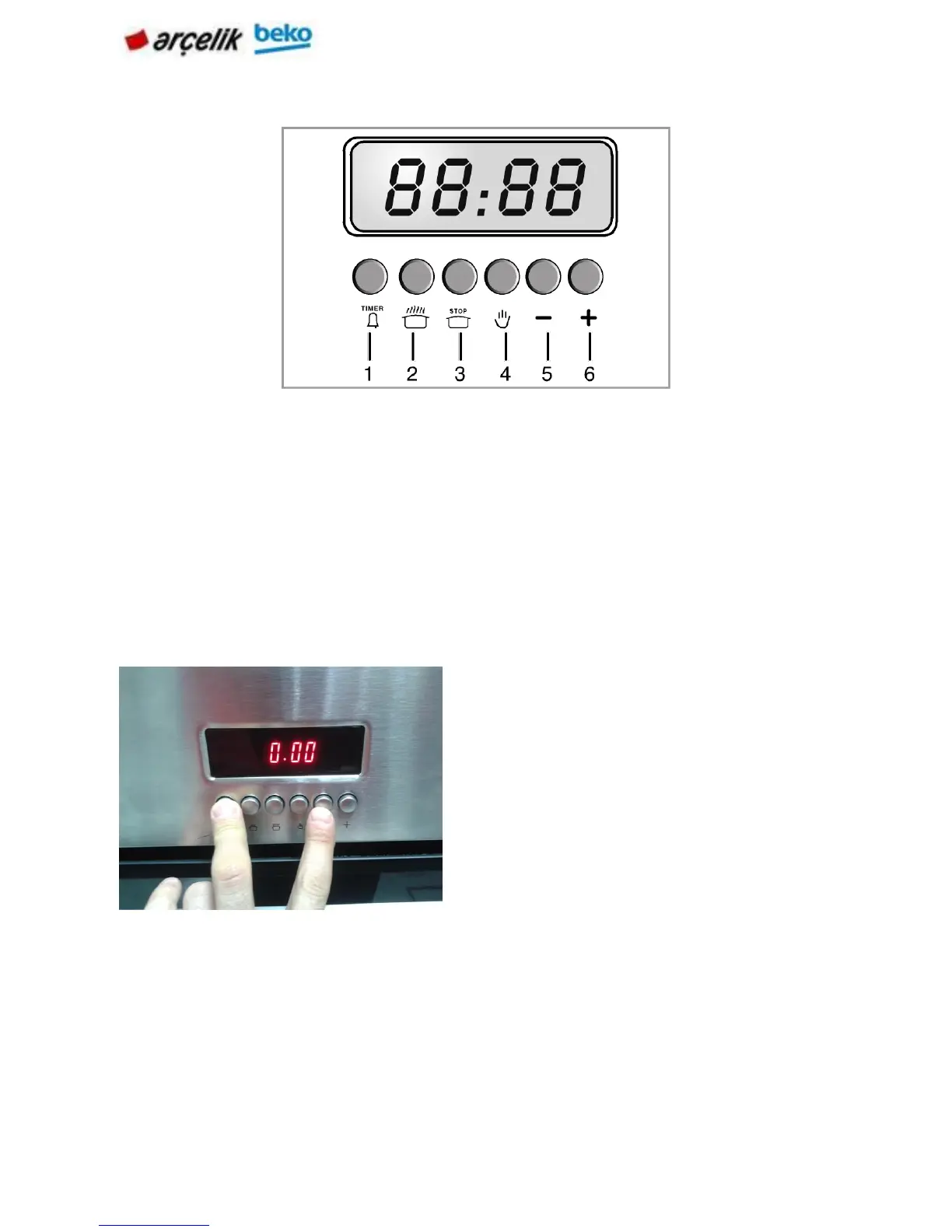

Keys:
1
Alarm key
2
Cooking time
3
End of cooking time
4
Unscheduled cooking
Time adjustment keys:
5
Minus key
6
Plus key
Setting the alarm clock
Alarm clock symbol appears on the display.
Keep Alarm key (1) pressed.
Press (5) and (6) keys to determine
how long after the alarm will sound.
Press the key repeatedly to increase or
reset the time with increments of 1
minute. If you keep the key pressed,
the minutes will increase and reset
faster.
25
27
Table of Contents
Main Page
1 Cover
2
Table of Contents
2
3 Safety Warning
5
General Safety
5
Safety for Configurations
5
Informations for Consumer
6
4 Technical Specifications
7
5 Product Assembly/ Assembly Rules/ Settings
8
Product Transportation
8
Unpacking Product
9
Controlling the Setup Place and Energy Sources
11
Measurement Control of the Mounting Place
11
Electrical Connection
12
6 Use of Products
13
Operating Functions
13
Use of Product Hours
15
Digital Clock Products (6 Keys)
15
Using the Oven Clock
17
Using the Clock as an Alarm
25
Adora Clock Products
27
7 By Products/Products Labels Used
37
Accessories
37
Tags and Descriptions Used in the Product
38
Type the Label
38
Barcode Label
39
Energy Label
39
8 General Working Principle
41
9 List of Components / Component Working Principle
42
Technical Specifications of the Components
42
10 Fault Flow / Fault Finding Diagrams
44
Resistance Faults
44
Resistance Does Not Work;The Food Is Not Cooked
44
Lamp Fault
45
Furnace Is Working but the Oven Does Not Illuminate
45
Oven Does Not Work,Oven Lamp Does Not Light
46
Termostat Fault
47
Furnace Runs Continuosly,The Thermostat Is Not Tripped
47
Therminal Fault
48
1There Is no Power from the Terminal Does Not Diffuse into the Electric Furnace
48
When the Fuse Blows the Oven Is Plugged into the Wall Socket
49
12 Component Assembly / Disassembly be Used in Equipment
52
13 Component Assembly / Dİsassembly
53
Replacement of the Knob
53
Replacement of the Upper Cover Sheet
53
Replacement of the Control Panel
54
Replacement of the Front Door
56
Replacement the Front Door Hinge
57
Replacement of the Removable Glass Cover 3
58
Replacement of the Removable Glass Cover 2
60
Replacement of the Removable Glass Cover 4
65
Replacement of the Handle
68
Replacement of the Comutators
69
Replacement of the Oven Thermostat
70
Replacement of the Thermostat Bulb
71
Replacement of the Bi-Metal Thermostat
73
Replacement of the Engine Cooling
73
Replacement of the Ventilation Plate
74
Replacement of the Ventilation Thermostat
75
Replacement of the Rear Cover Sheet
77
Replacement of the Side Walls
78
Replacement of the Bottom Plate
79
Replacement of the Switch
80
Replacement of Cataliytic Side Walls
82
Replacement of Top Heating Element
83
Replacement of the Bottom Heating Element
85
Replacement of the Ring Heater
86
Replacement of the Seal Oven
88
Replacement of the Turbo Motor
89
Replacement of the Terminal Box
91
Replacing the Runners
93
Replacing the Oven Lamp
93
Replacement of the Oven Square Lamp
94
Replacement of the Signal Lamp
95
Replacement of the Glass Wool
96
Replacement of the 6 Button Hours
98
Replacement of the Adora Timer
99
14 Pyro Oven Specifications Assembly / Dİsassembly
102
Isolation Sheet Metal Connection
102
Displacement of Catalysor
103
Replacement Door Lock
103
Replacement of the Ventilation Sheet
105
Replacement of the Pyro Ventilation Sheet Metal
107
