11
INSTALLATION

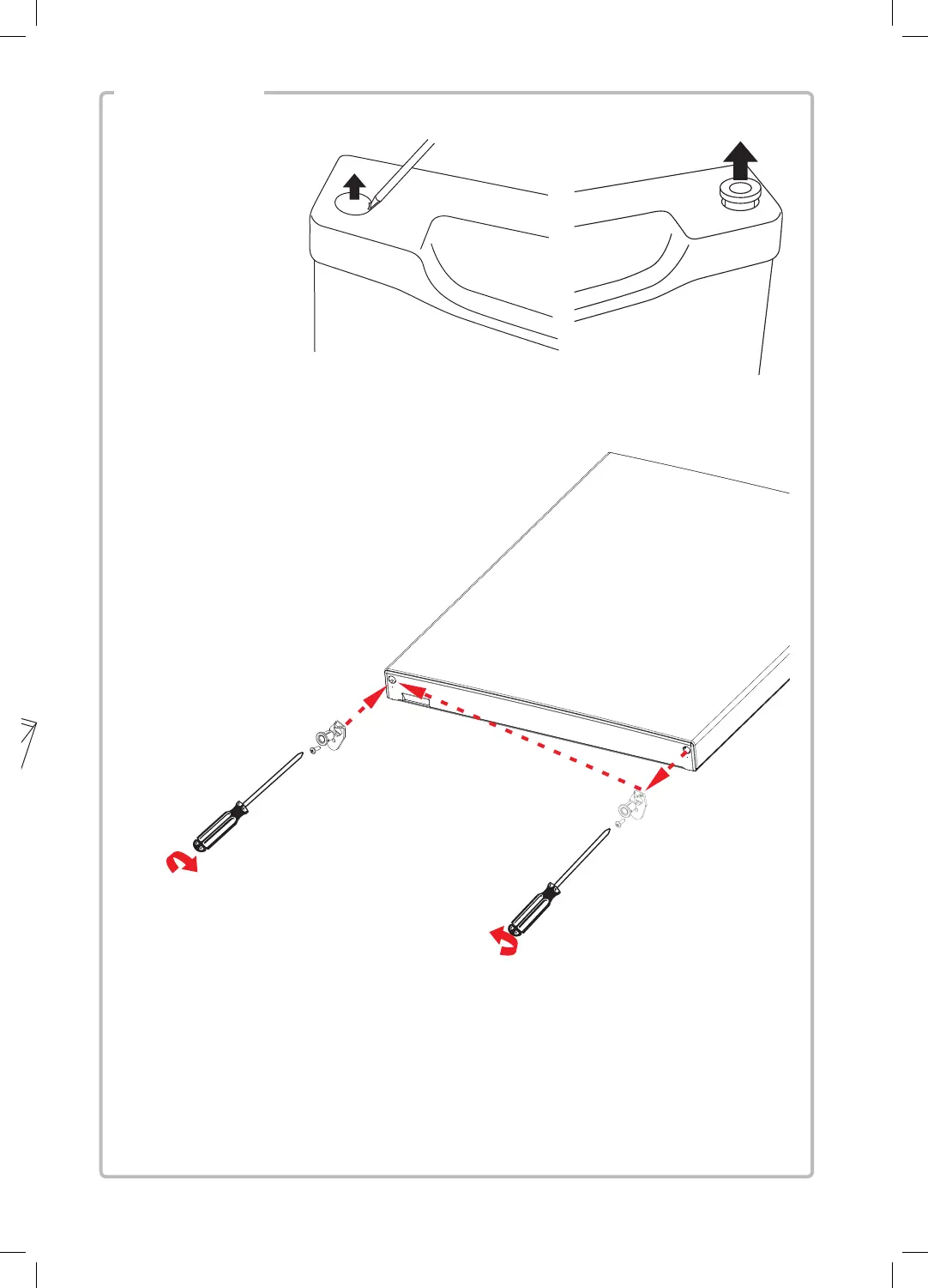

10. Remove the hinge
plug and hinge
plug cover from the
opposite side of the
freezer door and
swap them over.
11. Unscrew the hinge
housing on the
bottom of the freezer
door, then Screw it
onto the opposite
side of the freezer
door. You will notice
a small dimple where
the screw sound be
located.
Freezer Door
