Logitech Squeezebox Boom User Manual

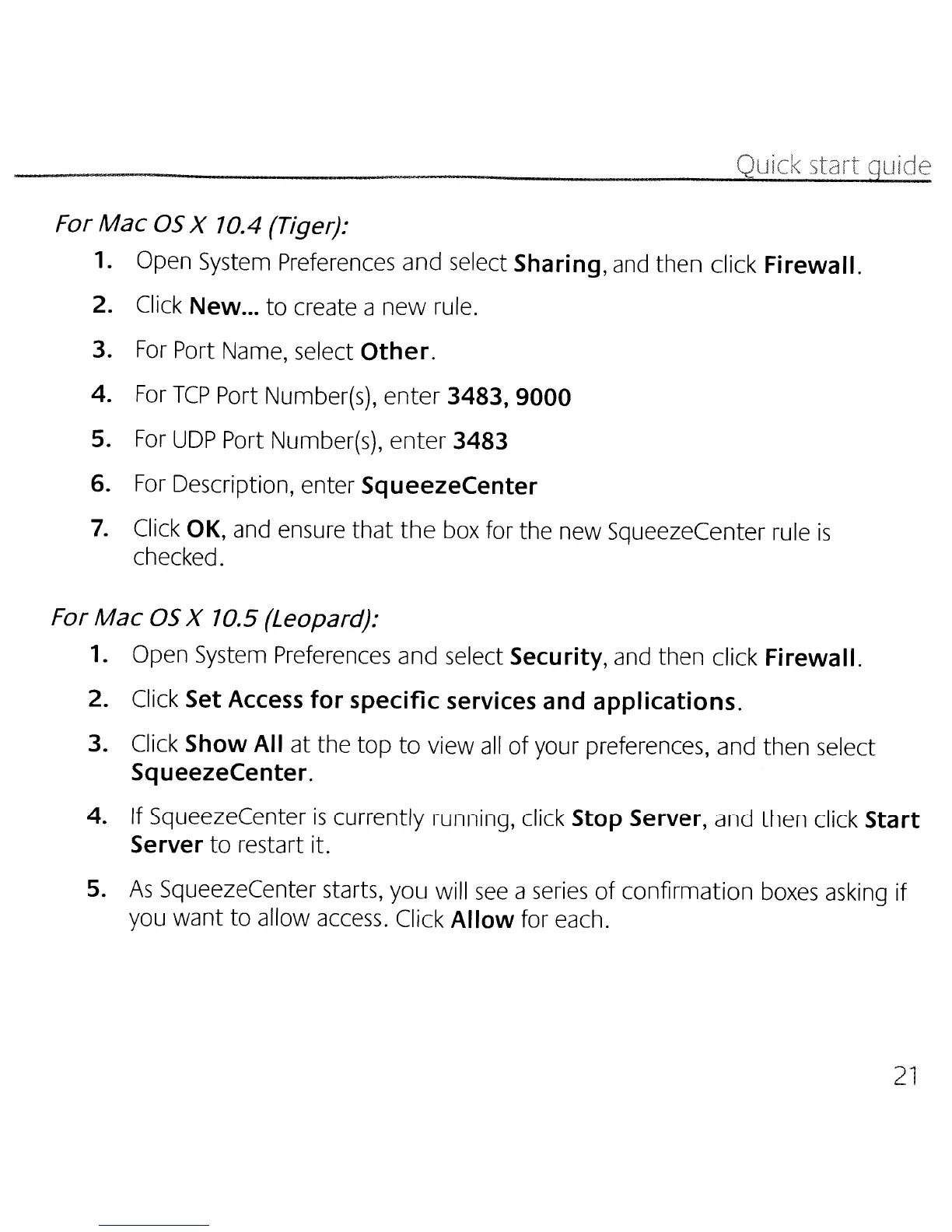

Quick start quide
For Mac OS X 10.4 (Tiger):
1. Open System Preferences and select Sharing, and then click Firewall.
2. Click New ... to create a new rule.
3. For Port Name, select Other.
4. For TCP Port Number(s), enter 3483, 9000
5.
For UDP Port Number(s), enter 3483
6.
For Description, enter SqueezeCenter
7. Click OK, and ensure that the box for the new SqueezeCenter rule is
checked.
For Mac OS X 10.5 (Leopard):
1. Open System Preferences and select Security, and then click Firewall.
2. Click Set Access for specific services and applications.
3. Click Show All at the top to view all of your preferences, and then select
SqueezeCenter.
4. If SqueezeCenter is currently running, click Stop Server, and then click Start
Server
to restart it.
5. As SqueezeCenter starts, you will see a series of confirmation boxes asking if
you
want to allow access. Click Allow for each.
21

Logitech Squeezebox Boom Specifications

General

RMS rated power	30 W
Integrated clock	Yes
Connectivity technology	Wired & Wireless
Compatible operating systems	Windows XP/2000/NT, Windows Vista, Macintosh OSX 10.3.5, Linux/BSD/Solaris (Perl 5.8.3)
Ethernet LAN (RJ-45) ports	1
Networking features	10/100Base-T, 802.11g
Product color	Black
Audio formats supported	AAC, AIFF, FLAC, MP3, Ogg, WAV, WMA
Image formats supported	Not supported
Minimum RAM	256 MB
Minimum processor	Pentium 733MHz
Minimum storage drive space	80 MB
Minimum system requirements	Ethernet / 802.11b/g
