Logitech Squeezebox Boom User Manual

Log
-- itpt-h Sque. f.Jzebox Bar)
rl.· .. ~'-_~ I _ ,_ 'i. .......

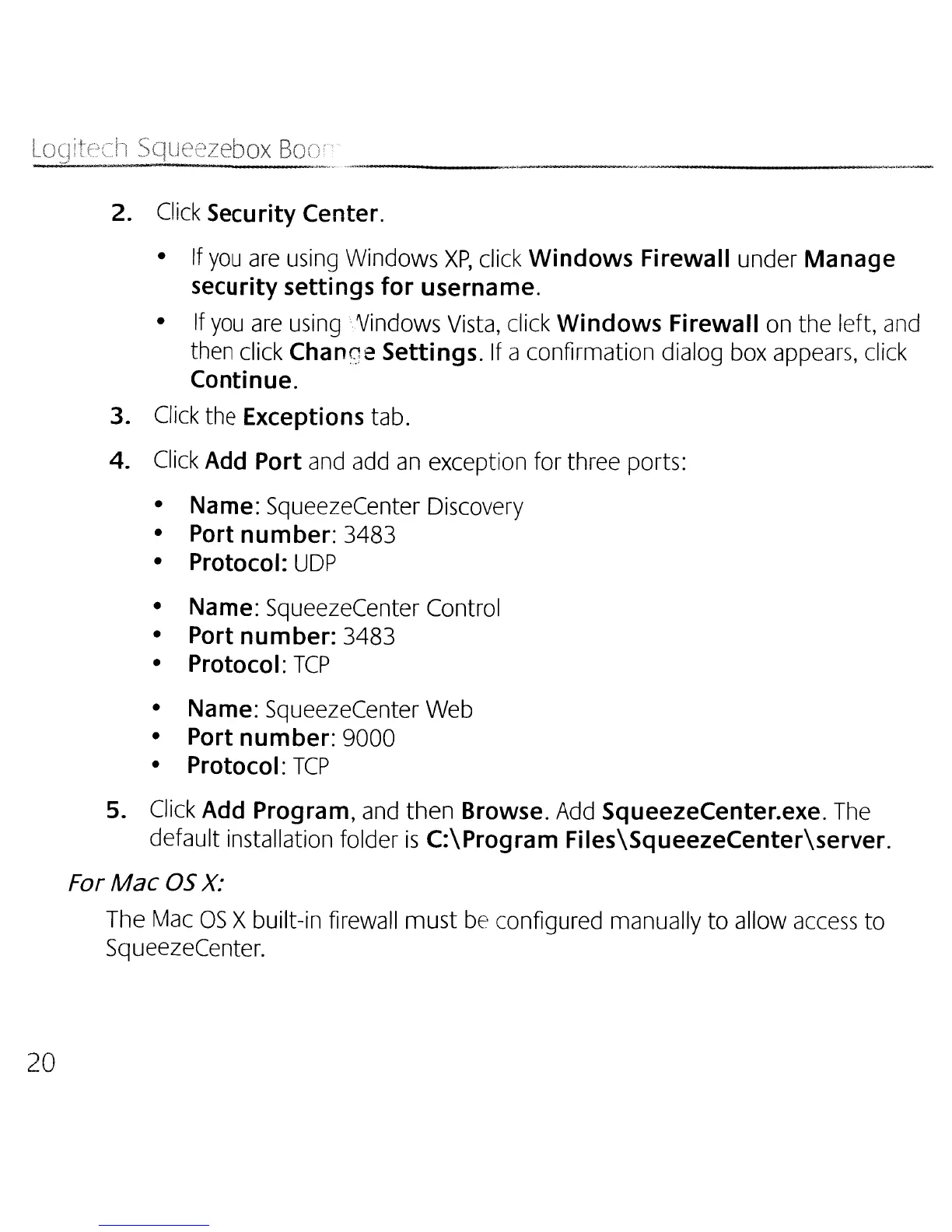

2. Click Security Center.
• If you are using Windows XP, click Windows Firewall under Manage
security settings for username.
• If you are using'Vindows Vista, click Windows Firewall on the left, and
then click Change Settings. If a confirmation dialog box appears, click
Continue.
3.
Click the Exceptions tab.
4. Click Add Port and add an exception for three ports:
• Name: SqueezeCenter Discovery
• Port number: 3483
• Protocol: UDP
•
•
•
•
•
•
Name: SqueezeCenter Control
Port number: 3483
Protocol: TCP
Name: SqueezeCenter Web
Port number: 9000
Protocol: TCP
5. Click Add Program, and then Browse. Add SqueezeCenter.exe. The
default installation folder is C:\Program Files\SqueezeCenter\server.
For Mac 05 X:
The Mac OS Xbuilt-in firewall must be configured manually to allow access to
SqueezeCenter.
20

Logitech Squeezebox Boom Specifications

General

RMS rated power	30 W
Integrated clock	Yes
Connectivity technology	Wired & Wireless
Compatible operating systems	Windows XP/2000/NT, Windows Vista, Macintosh OSX 10.3.5, Linux/BSD/Solaris (Perl 5.8.3)
Ethernet LAN (RJ-45) ports	1
Networking features	10/100Base-T, 802.11g
Product color	Black
Audio formats supported	AAC, AIFF, FLAC, MP3, Ogg, WAV, WMA
Image formats supported	Not supported
Minimum RAM	256 MB
Minimum processor	Pentium 733MHz
Minimum storage drive space	80 MB
Minimum system requirements	Ethernet / 802.11b/g
