The meters on the ROC Control Surfaces are multi-function LED type which
show typical VU levels as well as peaks. The reference level is adjustable. On

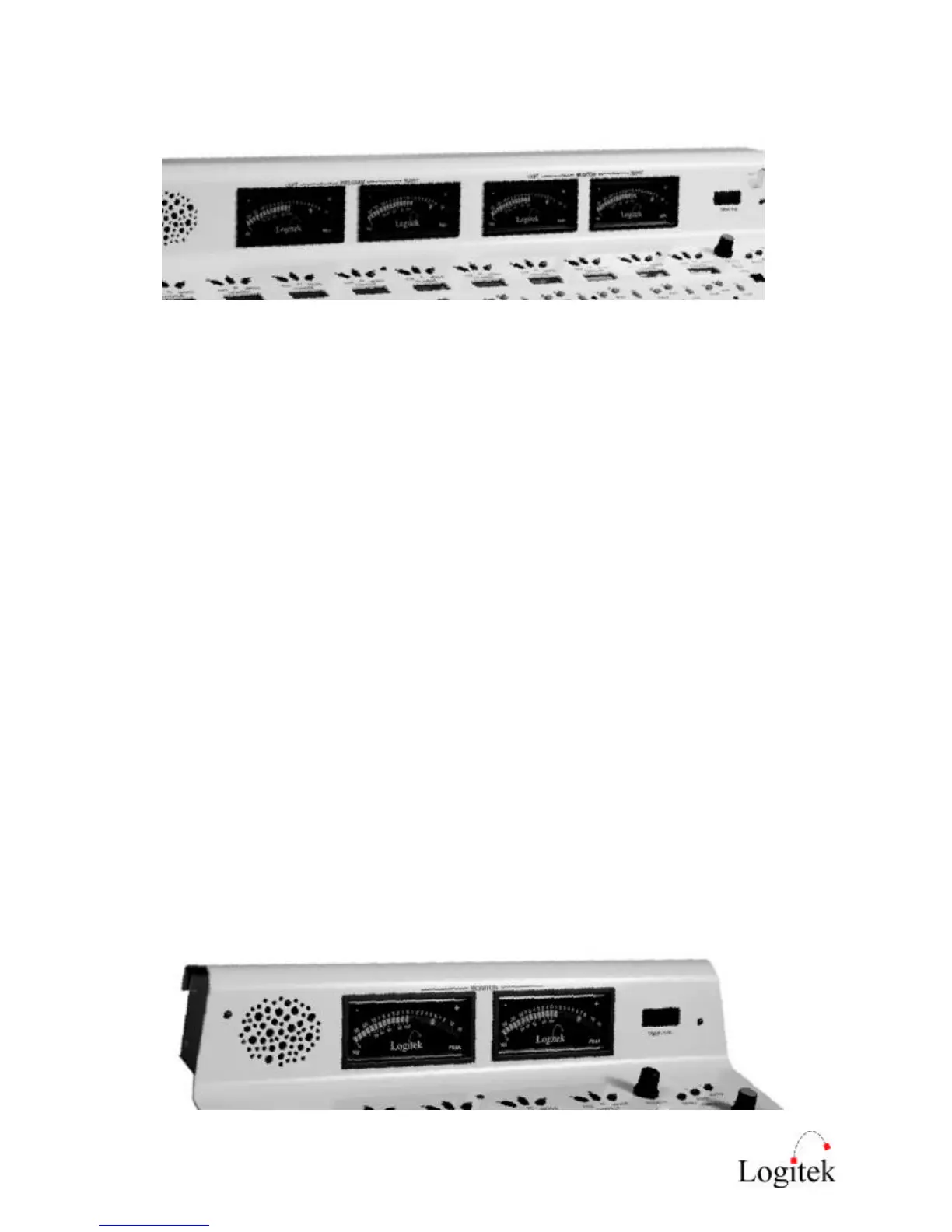

the ROC 10 there are two sets of left and right meters. One set is labeled
Program and follows the outputs assigned as the Program Output bus. The other
set is labeled Monitor and follows the choice made on the Monitor Control
Selector. The ROC 5 is equipped with only one pair of meters which follows the
Monitor Control Selector.
The meter LEDs are in a four color arrangement as follows:
Green -35 to -1 db (the normal VU operating range)
Yellow 0 db reference point
Orange +1 to +3 db (the VU warning range)
Red +4 to +16 db (the normal range for peaks)
14
ROC-10/ROC-5 Control Surface
