LogTag UTRIX Work Instruction Manual Revision 1.07 MP Release Page 11/52
1.4 Clean residue around sensor circuit and crystal areas

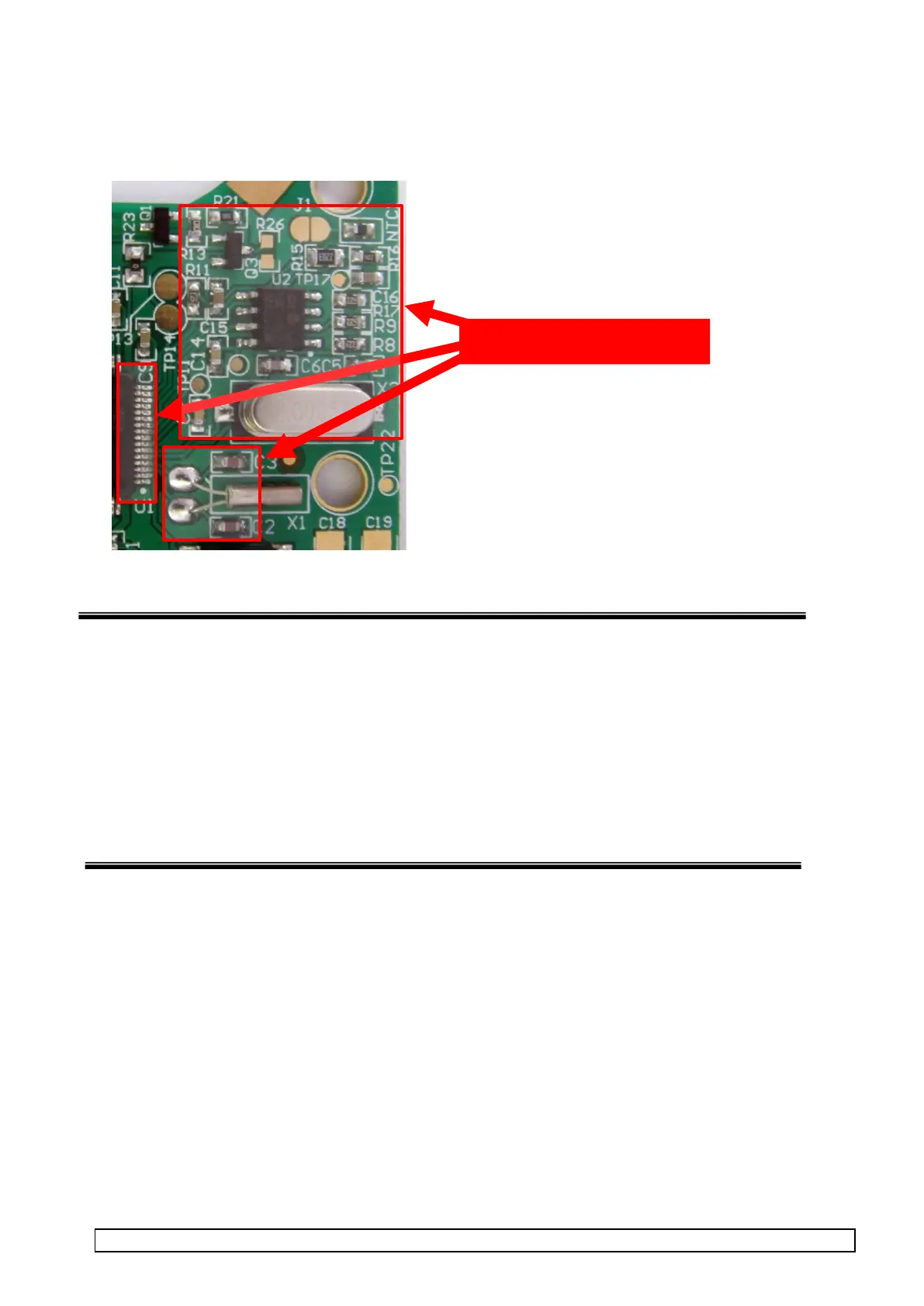

Clean the PCB of flux residue in the areas indicated in the picture below:
1.5 Separate PCBAs from Panel
Carefully break out PCBA’s from panel – be very careful to not apply excessive bending to PCBA to prevent
damage to components. (Ceramic capacitors can easily be damaged by this!!)
It is recommended to use a PCB cutter to remove the boards from the panel.
NOTE: DO NOT distort or stress the panel too much at any time
