Instructions for use Lojer Modux nursing bed / Version 2.5
Copyright © Lojer Oy, 2022 18

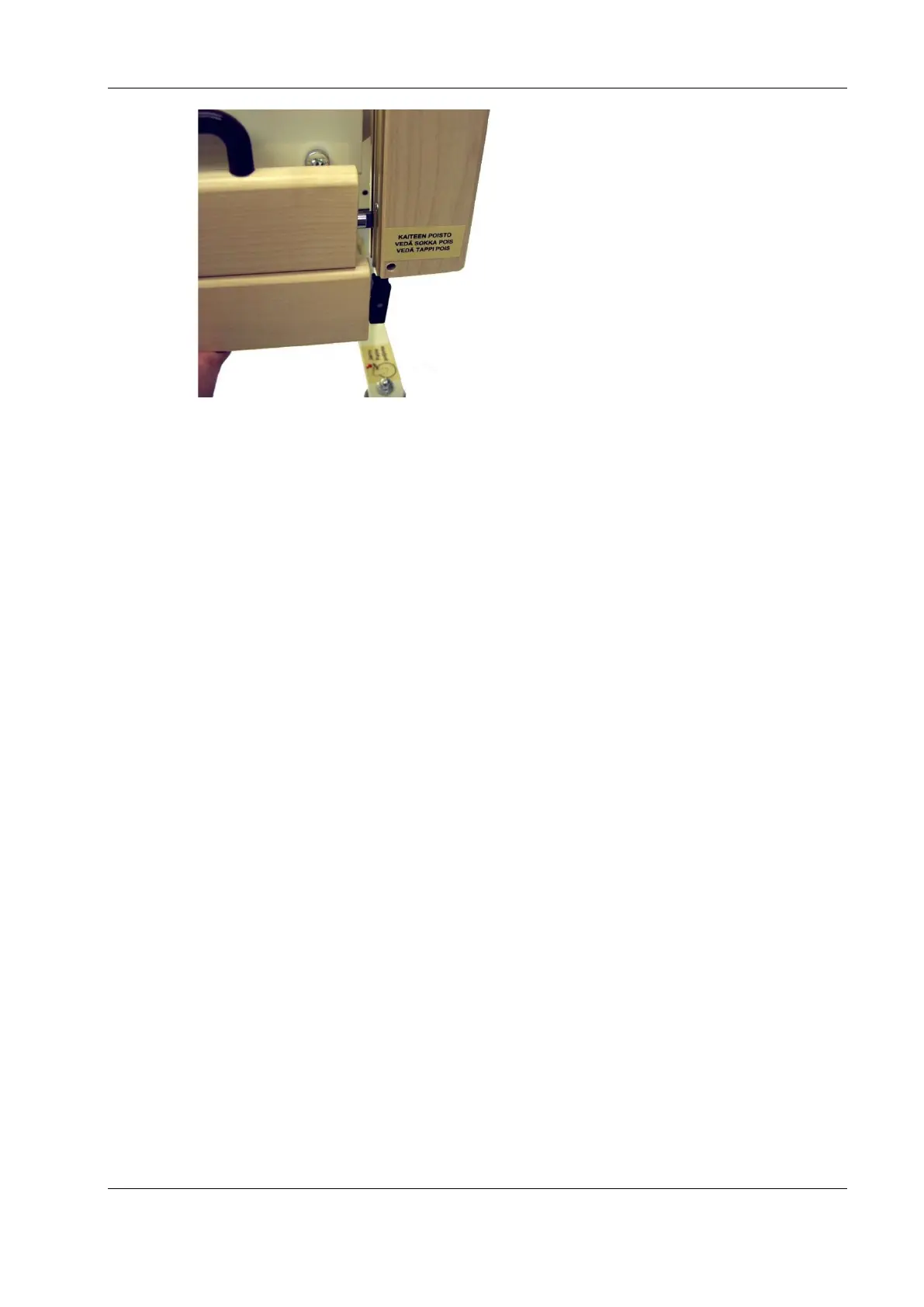

Image 24. Foot of the bed
7. Put the peg in place and push the pin through the hole in the peg.
8. Check that the side rail is working properly.
To remove the side rails:
1. Support the side rail or raise it into the top position and remove the peg
and pin from the foot of the bed (see image 22).
2. Lower the side rail from the bar and pull the other end of the side rail off
the pegs (see image 23).
3. Remove the slides from the foot end of the side rail (see image 23).
4. Place the slides back onto the bar. Observe the correct order and position
of the slides (see image 23).
5. Place the peg and pin in place (see image 22).
When the bed is in transport position, the side rails can be stored vertically
between the headboard and footboard.
