The lift support is mounted on the bed in the following order:
1. Raise the side rail and the back section.
2. Remove the finger screws, mounting plate and handle from the support
frame.
3. Attach the support frame on the bed frame tube. The recommended
position for the lift support is approx. 10 cm forward from the folding point
of the back section.

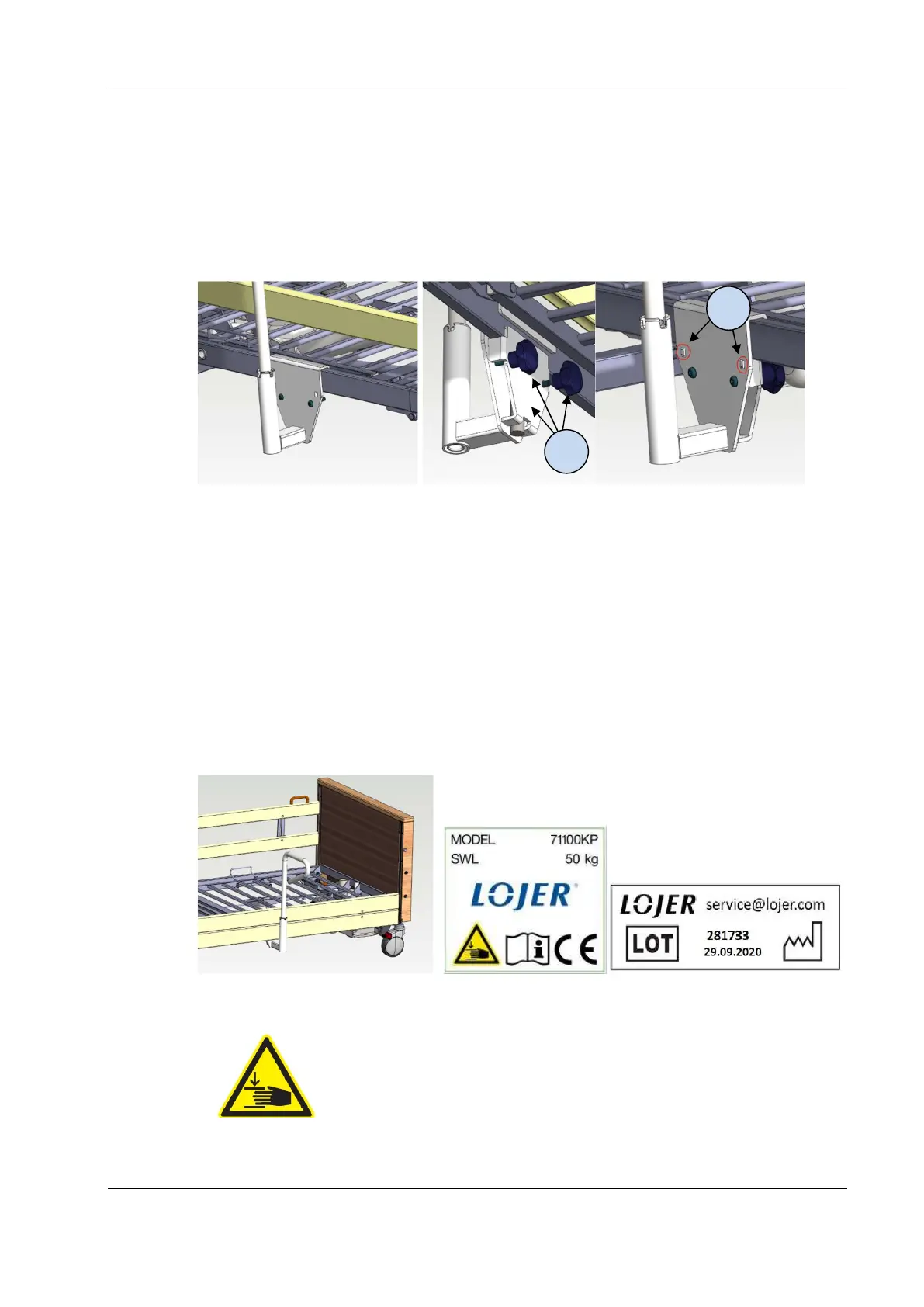

Image 36. Installing the frame and mounting plate and fastening the finger
screws
4. Attach mounting plate from backside and attach finger screws (a).
5. Adjust support frame on correct place if necessary. Check (b), that
mounting plate is correctly attached and tighten both finger screws (a).
6. Place the lift support handle on the lift support mounting frame, and make
sure that the lift support handle locks into the swinging bracket’s slots.
7. Tug handle to make sure that the lift support frame is mounted securely to
the bed.
When properly installed, side rails can be moved freely.
Image 37. Lift support installed and labels used on lift support
WARNING! Risk of getting squeezed if there is a lift support
attached to the bed.
