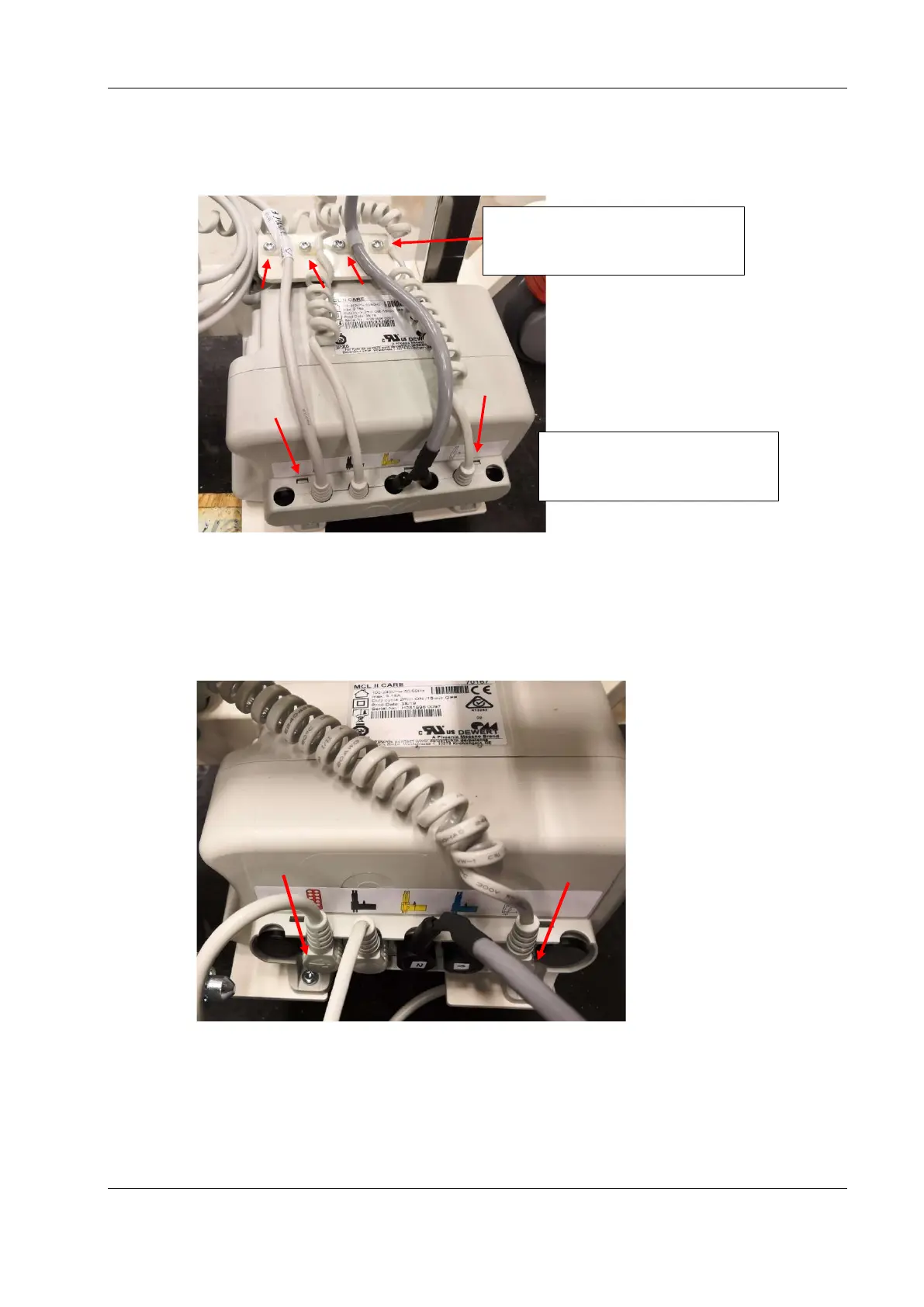

3. Detach wiring going to the control unit from strain reliefs (see image below).
Image 51. Detachment of control units’ strain reliefs and protective cover
4. Detach control units’ connectors protective cover of by pressing fastening
clips (pointed in image above) with screwdriver.
5. Detach the control unit by dismantling screws (2 pcs) pointed in image
below.
Image 52. Detachment of the control unit
Detach control units’ wiring
from strain reliefs
Detach protective cover of
connectors
