6. Detach the locking part of the power cord by pressing fastening clip open

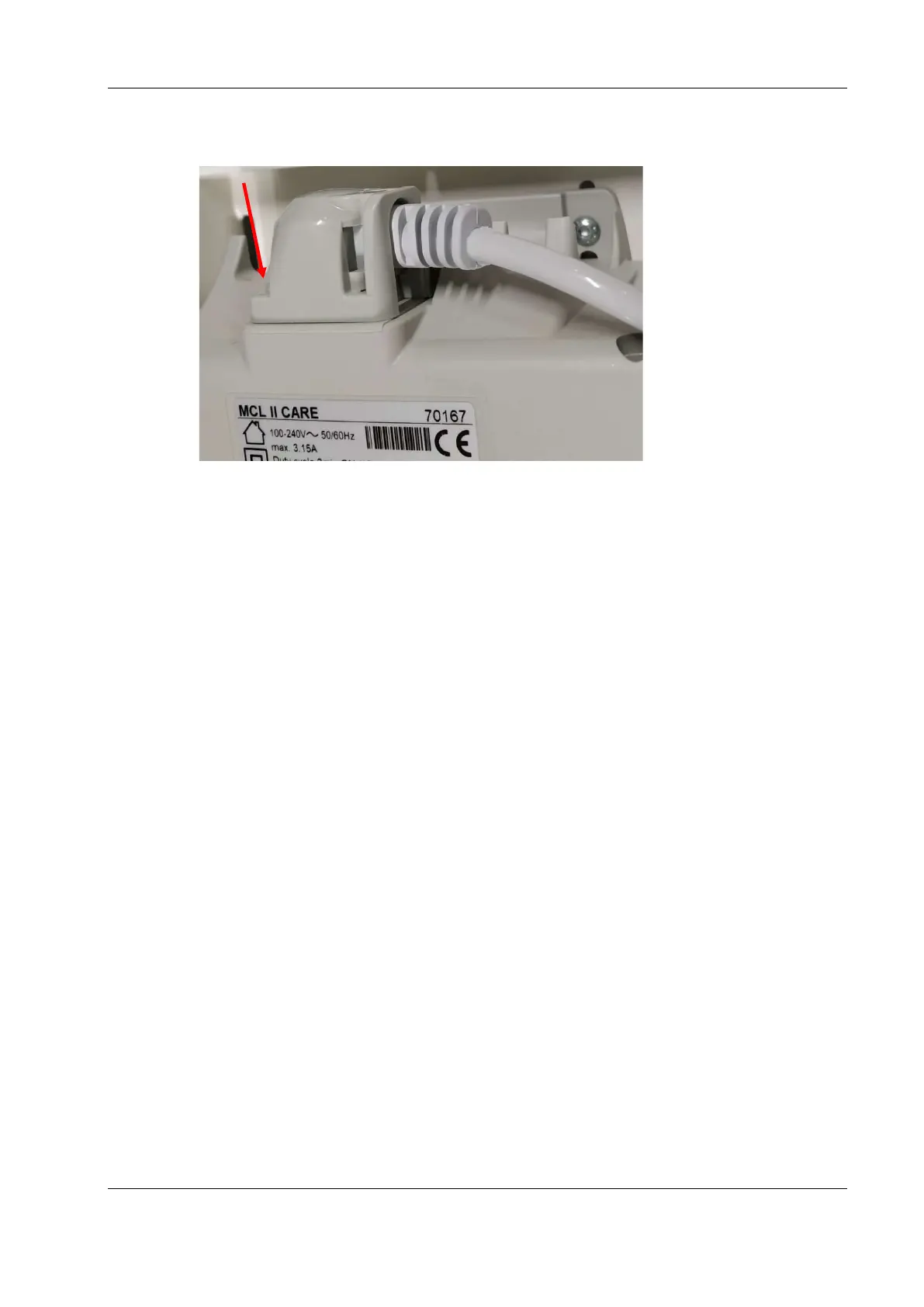

with screwdriver from direction pointed in image below.
Image 53. Detachment of power cords’ locking part
7. Detach the power cord from the control unit and replace it with a new one.
Attach the locking part and ensure its’ fastening to place.
8. Perform stages 5. 2. inversely to attach the control unit, strain reliefs and
the protective cover back in place. Make sure that all fastenings are tightened
in suitable tightness: Fastenings has to be tight but not so tight that
components get broken.
9. Plug the power cord into mains socket and ensure correct operation of all
the movements of the bed.
9.7 Changing the hand control unit
See safety instructions presented in Chapter 9.
NB! In case of faulty hand control unit, detachment to mains socket can’t be
tested with hand control unit in satisfactory way.
Obey with following instructions when changing the hand control unit.
1. Detach the power cord from mains socket and make sure no external power
supply is connected to the device (battery etc.)
2. Detach control units’ connectors’ protective cover of by pressing fastening
clips with screwdriver (see Image 51.)
3. Detach the hand control unit wire from strain relief (see Image 51.)
