CONTROLS
-4-

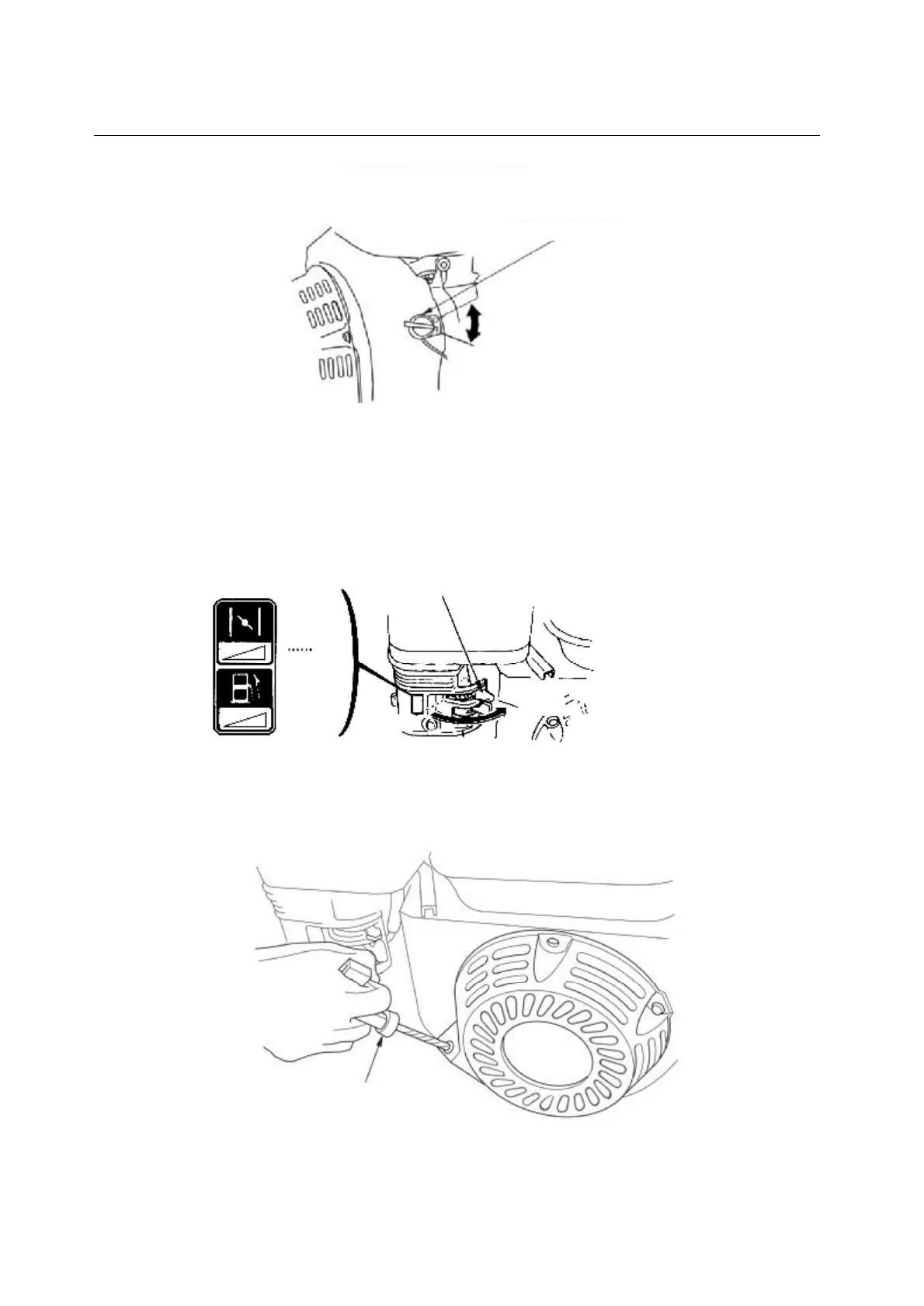

Choke Lever
The choke lever opens and closes the choke valve in the carburetor.
The CLOSE position enriches the fuel mixture for starting a cold engine.
The OPEN position provides the correct fuel mixture for operation after starting, and for
restarting a warm engine.
Some engine applications use a remotely-mounted choke control rather than the
engine-mounted choke lever shown here.
Recoil Starter Grip
Pulling the starter grip operates the recoil starter to crank the engine.
ALL ENGINE EXCEPT D TYPE
ENGINE SWITCH
OFF
ON
CHOKE LEVER
OPEN
OPEN
CLOSE
STARTER GRIP
