LONCIN G200F Shop Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 36 -

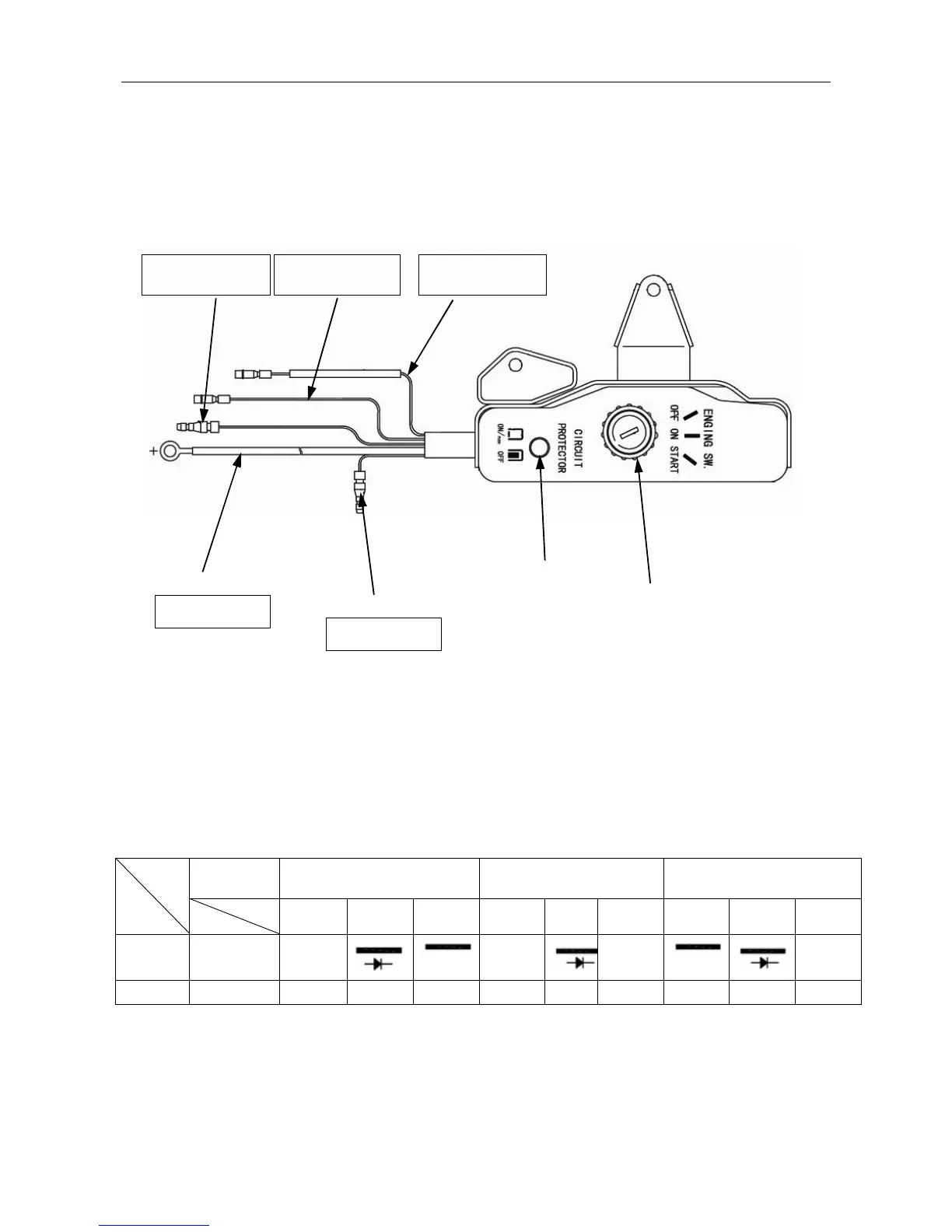

2. Disassembly/reassembly of control box (optional)
1. Disassembly/reassembly
2. Inspection
Combination switch
Check for continuity between the wires shown in the following table with the switch in different
positions.
OFF ON START
Position
S/N
Color
State
W, Bl/W Br, W Bl, ground
W, Bl/W Br, W Bl, ground
W, Bl/W Br, W Bl, ground
1 ON
2 OFF
Black/white wire
Connected to
relay’s excitation
winding
Black wire
Unidirectional
conductional
device
White wire
Connected to
relay
Black wire
Connected to
ignition coil’s stop
switch wire
Brown wire
Connected to
charging coil
Over
load
protector
Start control
switch

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
