LONCIN G200F Shop Manual

G120F/G160F/G200F Part IV Disassembly and maintenance
- 42 -

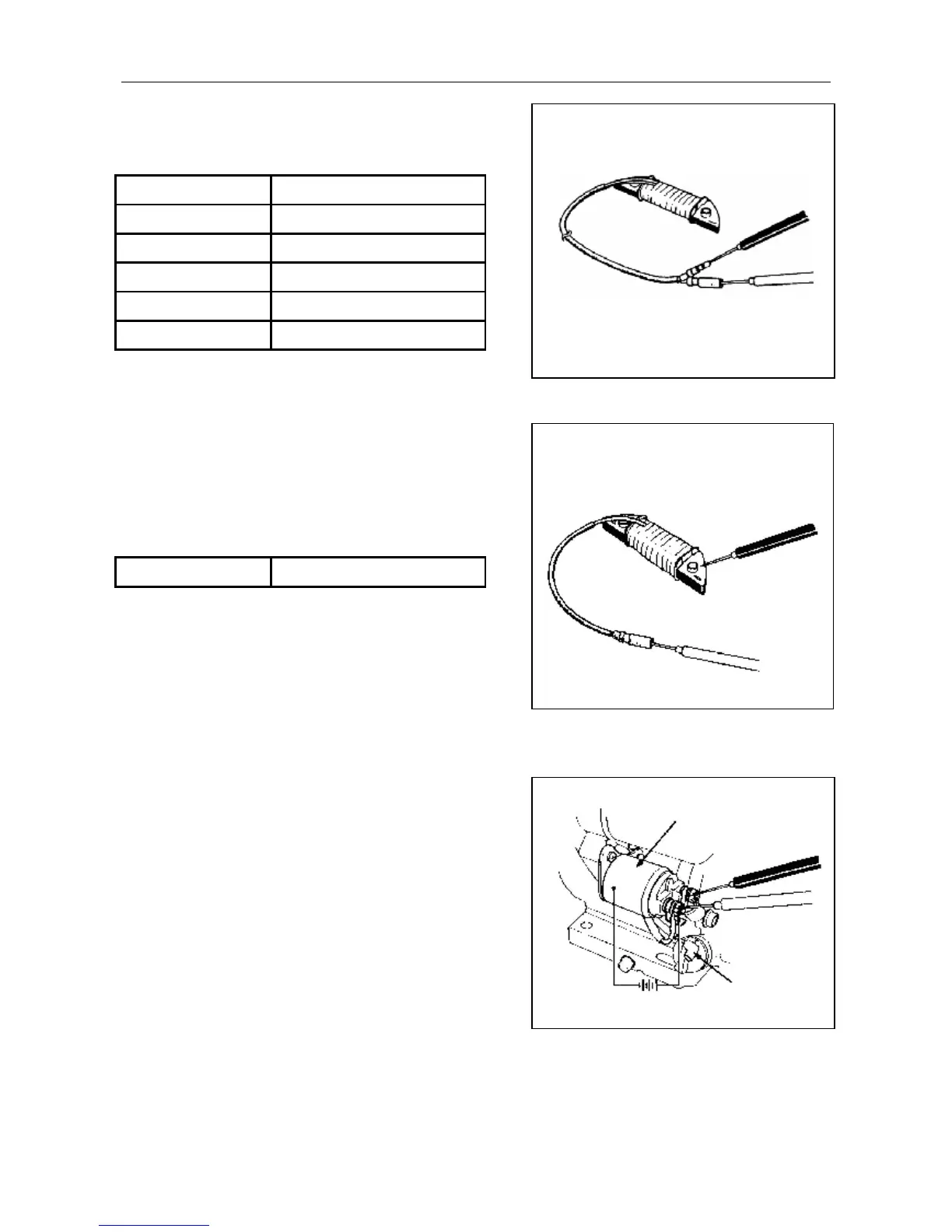

2) Lighting coil
Measure resistance between the two leads.
Resistance value
6V-15W
0.21～0.27Ω
6V-25W
0.09～0.15Ω
12V-15W
1.24～1.44Ω
12V-25W
0.36～0.46Ω
12V-50W
0.18～0.23Ω
3) Charging coil
Measure resistance between the two leads.
Resistance value
3.15-3.85Ω
4. Starter relay
Disconnect negative of battery, and disconnect
electromagnetic relay’s S terminal plug, and
connect a 12 V battery between starter terminal
and starter body, then check continuity using a tester
as shown. There should be continuity when the battery
is connected, and no continuity when the battery is not
connected.
Starter solenoid
S terminal plug

LONCIN G200F Specifications

General

Displacement	196 cc
Compression Ratio	8.5:1
Fuel System	Carburetor
Starting System	Recoil start
Weight	16 kg
Fuel Type	Unleaded gasoline
Lubrication System	Splash
Engine Type	Forced air-cooled, 4-stroke, OHV, single cylinder
Bore x Stroke	68 mm x 54 mm
Max Power	6.5 HP (4.8 kW) / 3600 rpm
Ignition System	Transistorized magneto ignition
Fuel Tank Capacity	3.6 L
Oil Capacity	0.6 L
